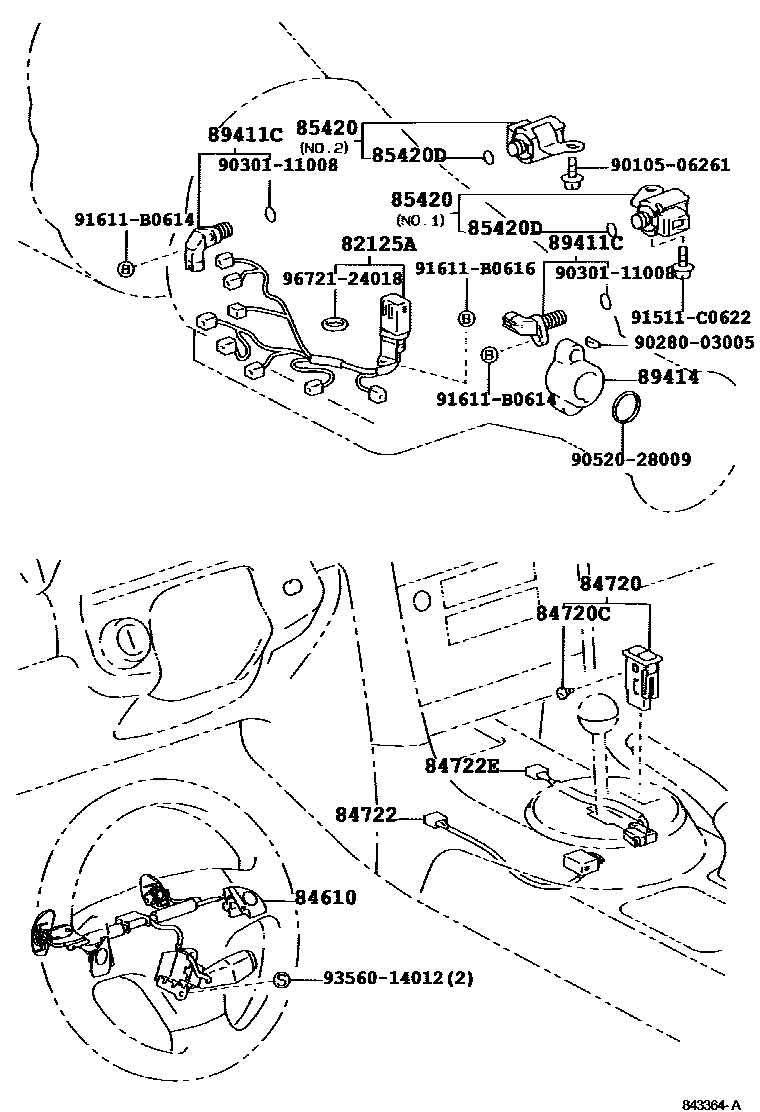

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125AWIRE, TRANSMISSION

main82125-30460iJCE10200005-200107

84610SWITCH ASSY, TRANSMISSION SHIFT

main84610-53010iJCE10200005-200107

main84610-53011iJCE10..ATM200409

84720SWITCH ASSY, PATTERN SELECT

main84720-53010iJCE10200005-200107

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10420iJCE10200005-200107

14V 0.84W

84722SWITCH, TRANSMISSION CONTROL

main84722-53030iJCE10200005-200107

84722ESWITCH, TRANSMISSION CONTROL

main84722-53020iJCE10200005-200107

85420SOLENOID ASSY, TRANSMISSION

main35250-50010iJCE10..ATM200108

NO.1

main35250-50030iJCE10..ATM200108

NO.2

main85420-30240iJCE10200005-200107

NO.1

main85420-30260iJCE10..ATM200107-200108

NO.2,DENSO

main85420-30270iJCE10..ATM200107-200108

NO.2,AISIN

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×2iJCE10..ATM200107

89411CSENSOR, SPEED

main89411-50010×2iJCE10200005-200107

89414ROTOR, SENSOR

main89414-30040iJCE10200005-200107

9010506261

main90105-06261

9028003005

main90280-03005

9030111008

main90301-11008

9052028009

main90520-28009

91511C0622

main91511-C0622

91611B0614

main91611-B0614

91611B0616

main91611-B0616

9356014012

main93560-14012

9672124018

main96721-24018

19 parts on this diagram · 1 diagram in section
