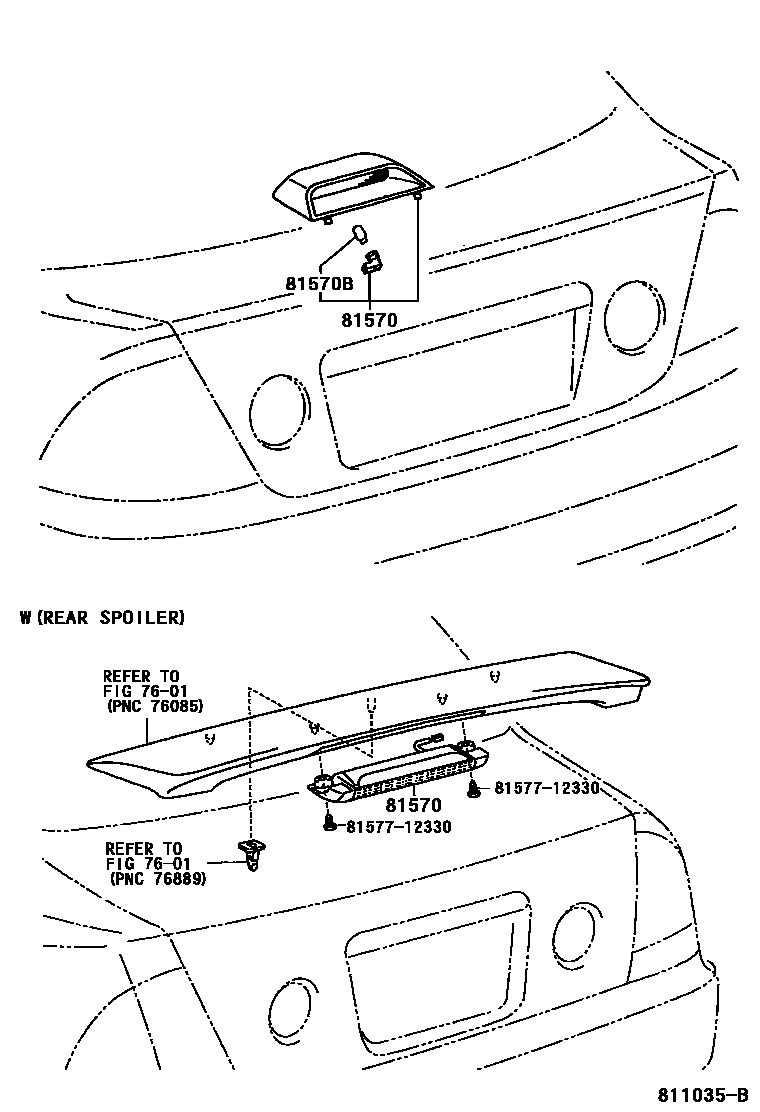

CENTER STOP LAMP

0001 1 0002 1

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

81570LAMP ASSY, CENTER STOP

main81570-53040-A0iJCE10..SED200107-200312

IVORY,TRIM0#

main81570-53040-C0iJCE10..SED200107-200312

BLACK,TRIM2#

main81570-53041-A0iJCE10..SED200312

IVORY,TRIM0#

main81570-53041-C0iJCE10..SED200312

BLACK,TRIM2#

main81570-53050iJCE10..SED200107

W(REAR SPOILER)

main81570-53070iJCE10..WG200107

81570BBULB (FOR CENTER STOP LAMP)

main90981-11059iJCE10200005-200107

12V 16W

8157712330

main81577-12330

4 parts on this diagram · 2 diagrams in section
