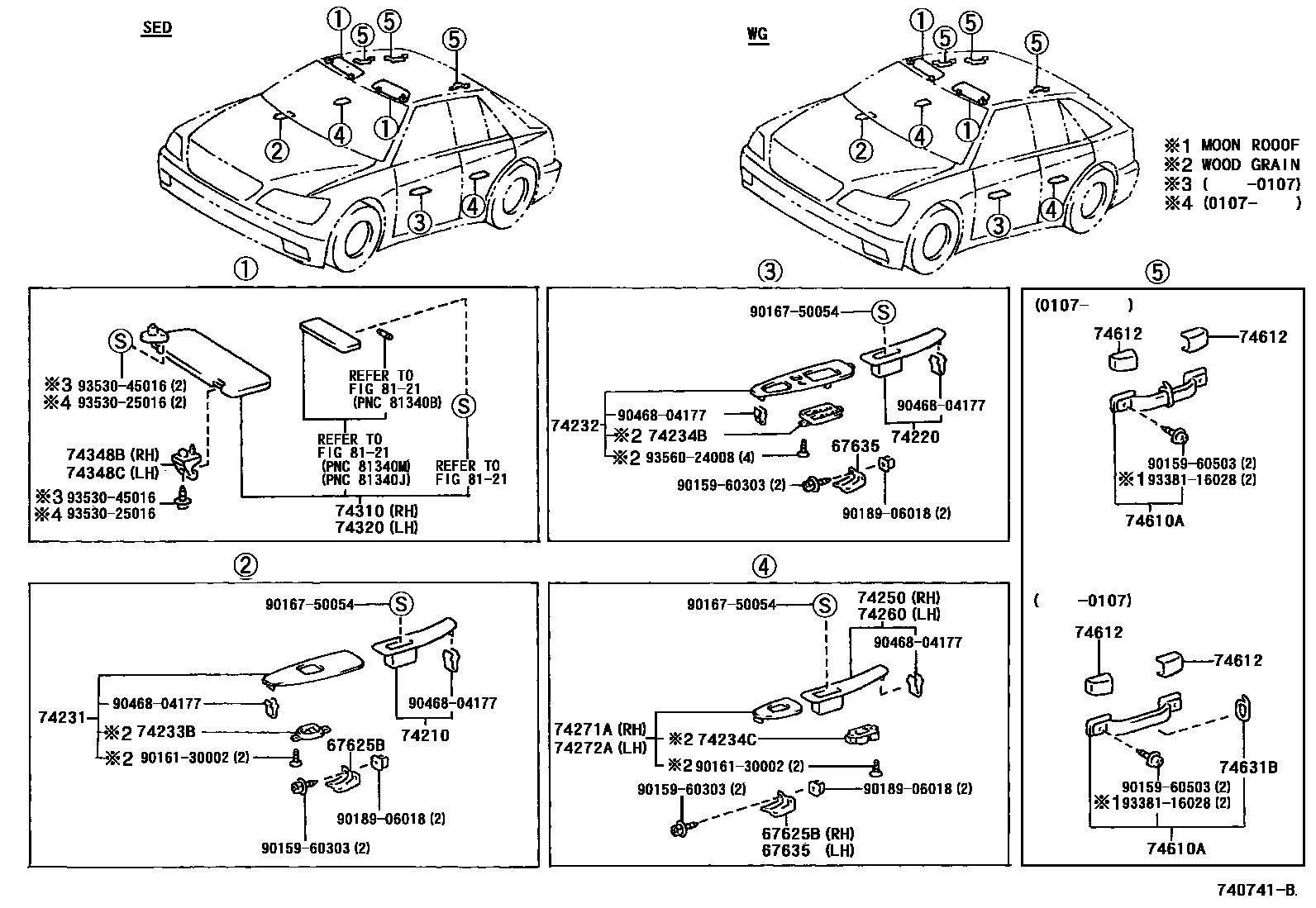

ARMREST & VISOR

67625BBRACKET, DOOR TRIM, NO.1 RH

main67625-53010×2i200005-200107

67635BRACKET, DOOR TRIM, NO.1 LH

main67625-53010×2i200005-200107

74210ARMREST ASSY, FRONT, RH

main74210-53010-A0i200107

IVORY,TRIM0#

main74210-53010-C0i200107

BLACK,TRIM2#

74220ARMREST ASSY, FRONT, LH

main74220-53010-A0i200005-200107

IVORY,TRIM0#

main74220-53010-C0i200005-200107

BLACK,TRIM2#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74232-53030i200005-200107

main74232-53100i200308

main74240-53020i200107

WOOD GRAIN

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74230-53010i200107

WOOD GRAIN

main74231-53020i200005-200107

main74231-53070i200308

74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH

main74234-53010i200107

74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH

main74233-53010i200005-200107

74234CPANEL, REAR DOOR ARMREST BASE, LOWER

main74234-53010×2i200005-200107

74250ARMREST ASSY, REAR RH

main74250-53010-A0i200005-200107

IVORY,TRIM0#

main74250-53010-C0i200107

BLACK,TRIM2#

74260ARMREST ASSY, REAR LH

main74260-53010-A0i200005-200107

IVORY,TRIM0#

main74260-53010-C0i200107

BLACK,TRIM2#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74270-53010i200107

WOOD GRAIN

main74271-53010i200005-200107

main74271-53040i200308

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74270-53010i200005-200107

WOOD GRAIN

main74271-53010i200107-200308

main74271-53040i200308

74310VISOR ASSY, RH

main74310-53061-A0i200005-200107

IVORY,TRIM0#

main74310-53061-B0i200005-200107

MEDIUM CHARCOAL,TRIM2#

main74310-53110-A0i200107-200203

IVORY,TRIM0#

main74310-53110-B0i200107-200203

MEDIUM CHARCOAL,TRIM2#

main74310-53111-A0i200203-200507

IVORY,TRIM0#

main74310-53111-B0i200203-200507

MEDIUM CHARCOAL,TRIM2#

74320VISOR ASSY, LH

main74320-53051-A0i200005-200107

IVORY,TRIM0#

main74320-53051-B0i200005-200107

MEDIUM CHARCOAL,TRIM2#

main74320-53080-A0i200005-200107

W(GARAGE DOOR OPENER),IVORY,TRIM0#

main74320-53080-B0i200005-200107

W(GARAGE DOOR OPENER),MEDIUM CHARCOAL,TRIM2#

main74320-53110-A0i200107-200203

IVORY,TRIM0#

main74320-53110-B0i200107-200203

MEDIUM CHARCOAL,TRIM2#

main74320-53111-A0i200203-200507

IVORY,TRIM0#

main74320-53111-B0i200203-200507

MEDIUM CHARCOAL,TRIM2#

main74320-53140-A0i200107-200203

W(GARAGE DOOR OPENER),IVORY,TRIM0#

main74320-53140-B0i200107-200203

W(GARAGE DOOR OPENER),MEDIUM CHARCOAL,TRIM2#

main74320-53141-A0i200203-200507

W(GARAGE OPENER),IVORY,TRIM0#

main74320-53141-B0i200203-200507

W(GARAGE OPENER),MEDIUM CHARCOAL,TRIM2#

74348BHOLDER, VISOR, RH

main74348-22020-A2i200005-200107

IVORY,TRIM0#

main74348-22020-B9i200005-200107

MD.CHARCOAL,TRIM2#

74348CHOLDER, VISOR, LH

main74348-22020-A2i200107-200507

IVORY,TRIM0#

main74348-22020-B9i200005-200107

MD.CHARCOAL,TRIM2#

74610AGRIP SUB-ASSY, ASSIST

main74610-30210-A0i200005-200107

W(MOON ROOF),IVORY,TRIM0#

main74610-30210-B0i200005-200107

W(MOON ROOF),MD.CHARCOAL,TRIM2#

main74610-51010-A0×2i200107

W(COAT HOOK & MOON ROOF),IVORY,TRIM0#; W(MOON ROOF),IVORY,TRIM0#,REAR

main74610-51010-B1×2i200107

W(COAT HOOK & MOON ROOF),MD.CHARCOAL,TRIM2#; W(MOON ROOF),MD.CHARCOAL,TRIM2#,REAR

main74610-53010-A0i200005-200107

IVORY,TRIM0#

main74610-53010-B0×2i200107

MD.CHARCOAL,TRIM2#

main74610-53020-A0×2i200107

IVORY,TRIM0#,REAR; W(COAT HOOK),IVORY,TRIM0#

main74610-53020-B0×2i200005-200107

MD.CHARCOAL,TRIM2#,REAR

74612COVER, ASSIST GRIP

main74612-22050-A3×8i200107

IVORY,TRIM0#

main74612-22050-B7×8i200107

MD.CHARCOAL,TRIM2#

main74612-30170-A0×6i200005-200007

W(MOON ROOF),IVORY,TRIM0#

main74612-30170-B0×6i200005-200007

W(MOON ROOF),MD.CHARCOAL,TRIM2#

main74612-30171-A0×6i200007-200107

W(MOON ROOF),IVORY,TRIM0#

main74612-30171-B0×6i200007-200107

W(MOON ROOF),MD.CHARCOAL,TRIM2#

74631BHOOK, COAT

main74631-33020-A1×2i200005-200107

IVORY,TRIM0#

main74631-33020-B2×2i200005-200107

MD. CHACOAL,TRIM2#

8121INTERIOR LAMP

→ Go to FIG 81-21

9015960303

main90159-60303

9015960503

main90159-60503

9016130002

main90161-30002

9016750054

main90167-50054

9018906018

main90189-06018

9046804177

main90468-04177

9338116028

main93381-16028

9353025016

main93530-25016

9353045016

main93530-45016

9356024008

main93560-24008

31 parts on this diagram · 1 diagram in section
