FRONT SEAT & SEAT TRACK

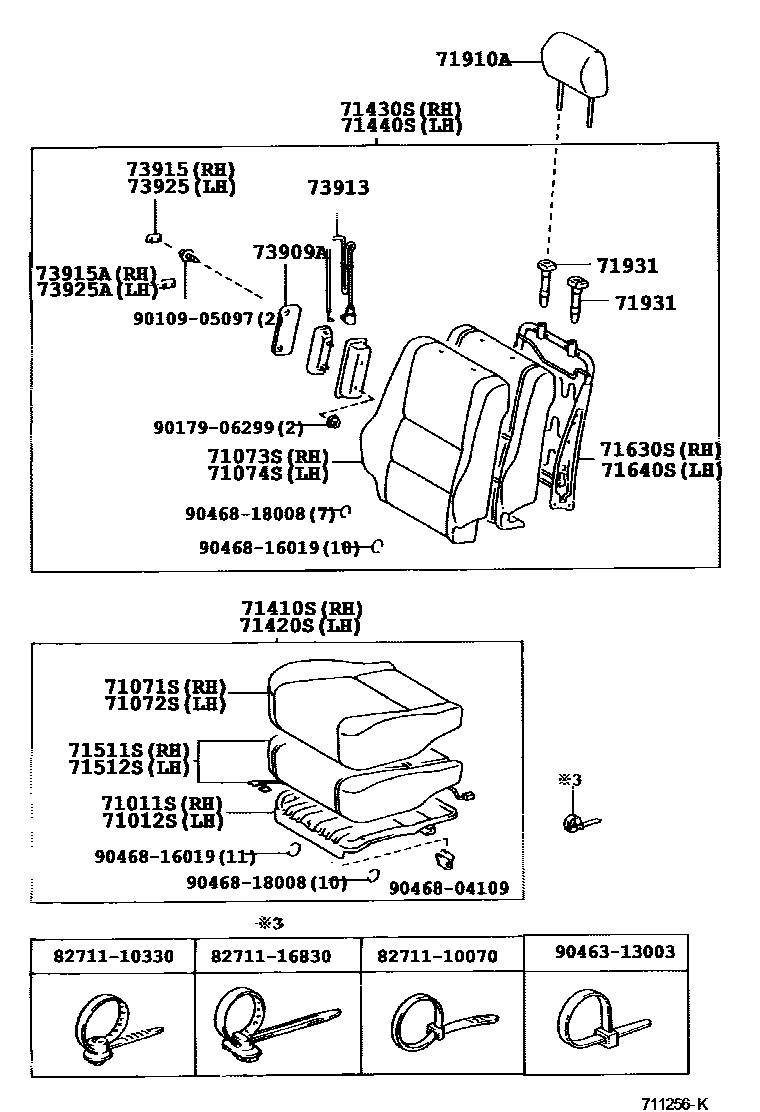

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-53010i200107
main71011-53020i200005-200107
W(POWER SEAT)
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71011-53020i200107
W(POWER SEAT)
main71012-53010i200005-200107
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-53020-A0i200005-200107
W(LEATHER SEAT),IVORY,TRIM0#
main71071-53020-C0i200005-200107
BLACK,TRIM0#,2#
main71071-53020-C1i200005-200107
W(LEATHER SEAT),BLACK,TRIM2#
main71071-53040-C1i200005-200105
BLACK,TRIM20
main71071-53050-A1i200005-200107
W(SEAT HEATER & LEATHER SEAT),IVORY,TRIM0#
main71071-53050-C1i200005-200107
W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM2#
main71071-53100-C1i200005-200107
W(SEAT HEATER),BLACK,TRIM2#
main71071-53110-A1i200107-200208
W(POWER SEAT),IVORY,TRIM0#
main71071-53110-C0i200107-200208
W(POWER SEAT),BLACK,TRIM2#
main71071-53111-A1i200208
W(POWER SEAT),IVORY,TRIM0#
main71071-53111-C0i200208
W(POWER SEAT),BLACK,TRIM2#
main71071-53120-A1i200005-200107
W(POWER SEAT & SEAT HEATER),IVORY,TRIM0#
main71071-53120-C0i200107-200208
W(POWER SEAT & SEAT HEATER),BLACK,TRIM2#
main71071-53121-A1i200208
W(POWER SEAT & SEAT HEATER),IVORY,TRIM0#
main71071-53121-C0i200208
W(POWER SEAT & SEAT HEATER),BLACK,TRIM2#
main71071-53150-A0i200107
IVORY,TRIM0#
main71071-53150-C0i200107
BLACK,TRIM2#
main71071-53160-A0i200107
W(SEAT HEATER),IVORY,TRIM0#
main71071-53160-C0i200107
W(SEAT HEATER),BLACK,TRIM2#
main71071-53170-A0i200107
IVORY,TRIM0#
main71071-53170-C0i200107
BLACK,TRIM2#
main71071-53180-A0i200107
W(SEAT HEATER),IVORY,TRIM0#
main71071-53180-C0i200107
W(SEAT HEATER),BLACK,TRIM2#
main71071-53190-A0i200107-200208
W(POWER SEAT),IVORY,TRIM0#
main71071-53190-C0i200107-200208
W(POWER SEAT),BLACK,TRIM2#
main71071-53191-A0i200208
W(POWER SEAT),IVORY,TRIM0#
main71071-53191-C0i200208
W(POWER SEAT),BLACK,TRIM2#
main71071-53200-A0i200107-200208
W(POWER SEAT & SEAT HEATER),IVORY,TRIM0#
main71071-53200-C0i200107-200208
W(POWER SEAT & SEAT HEATER),BLACK,TRIM2#
main71071-53201-A0i200208
W(POWER SEAT & SEAT HEATER),IVORY,TRIM0#
main71071-53201-C0i200208
W(POWER SEAT & SEAT HEATER),BLACK,TRIM2#
main71071-53210-A0i200107-200208
W(POWER SEAT & LEATHER SEAT),IVORY,TRIM0#; W/O(FRONT SEAT BACK TABLE) & W(POWER SEAT & LEATHER SEAT),IVORY,TRIM0#
main71071-53210-C0i200107-200208
W(POWER SEAT & LEATHER SEAT),BLACK,TRIM2#; W/O(FRONT SEAT BACK TABLE) & W(POWER SEAT & LEATHER SEAT),BLACK,TRIM2#
main71071-53211-A0i200208
W(POWER SEAT & LEATHER SEAT),IVORY,TRIM0#; W/O(FRONT SEAT BACK TABLE) & W(POWER SEAT & LEATHER SEAT),IVORY,TRIM0#
main71071-53211-B0i200301-200306
SPORTS DESIGN(USA/HAWAII/P.RICO), W(POWER SEAT & LEATHER SEAT),GRAY,TRIM21
main71071-53211-C0i200208
W(POWER SEAT & LEATHER SEAT),BLACK,TRIM2#; W/O(FRONT SEAT BACK TABLE) & W(POWER SEAT & LEATHER SEAT),BLACK,TRIM2#
main71071-53220-A0i200107-200208
W(POWER SEAT & SEAT HEATER & LEATHER SEAT),IVORY,TRIM0#; W/O(FRONT SEAT BACK TABLE) & W(POWER SEAT & SEAT HEATER LEATHER SEAT),IVORY,TRIM0#
main71071-53220-C0i200107-200208
W(POWER SEAT & SEAT HEATER & LEATHER SEAT),BLACK,TRIM2#; W/O(FRONT SEAT BACK TABLE) & W(POWER SEAT & SEAT HEATER LEATHER SEAT),BLACK,TRIM2#
main71071-53221-A0i200208
W(POWER SEAT & SEAT HEATER & LEATHER SEAT),IVORY,TRIM0#; W/O(FRONT SEAT BACK TABLE) & W(POWER SEAT & SEAT HEATER LEATHER SEAT),IVORY,TRIM0#
main71071-53221-B0i200301-200306
SPORTS DESIGN(USA/HAWAII/P.PICO),W(SEAT HEATER),GRAY,TRIM21
main71071-53221-C0i200208
W(POWER SEAT & SEAT HEATER & LEATHER SEAT),BLACK,TRIM2#; W/O(FRONT SEAT BACK TABLE) & W(POWER SEAT & SEAT HEATER LEATHER SEAT),BLACK,TRIM2#
main71071-53230-A0i200107-200208
W(POWER SEAT & LEATHER SEAT),IVORY,TRIM0#
main71071-53230-C0i200107-200208
W(POWER SEAT & LEATHER SEAT),BLACK,TRIM2#
main71071-53231-A0i200208
W(POWER SEAT & LEATHER SEAT),IVORY,TRIM0#
main71071-53231-C0i200208
W(POWER SEAT & LEATHER SEAT),BLACK,TRIM2#
main71071-53240-A0i200107-200208
W(POWER SEAT & SEAT HEATER & LEATHER SEAT),IVORY,TRIM0#
main71071-53240-C0i200107-200208
W(POWER SEAT & SEAT HEATER & LEATHER SEAT),BLACK,TRIM2#
main71071-53241-A0i200208
W(POWER SEAT & SEAT HEATER & LEATHER SEAT),IVORY,TRIM0#
main71071-53241-C0i200208
W(POWER SEAT & SEAT HEATER & LEATHER SEAT),BLACK,TRIM2#
main71071-53270-B0i200401-200406
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),LIGHT GRAY
main71071-53280-B0i200401-200406
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO) & W(SEAT HEATER),LIGHT GRAY
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-53040-C2i200005-200107
BLACK,TRIM2#
main71072-53050-C1i200005-200107
W(SEAT HEATER),BLACK,TRIM2#
main71072-53080-A1i200005-200107
W(SEAT HEATER & LEATHER SEAT),IVORY,TRIM0#
main71072-53080-C1i200005-200107
W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM2#
main71072-53090-A1i200005-200107
W(LEATHER SEAT),IVORY,TRIM0#
main71072-53090-C1i200005-200107
W(LEATHER SEAT),BLACK,TRIM2#
main71072-53100-A1i200107-200208
W(POWER SEAT),IVORY,TRIM0#
main71072-53100-C0i200107-200208
W(POWER SEAT),BLACK,TRIM2#
main71072-53101-A1i200208
W(POWER SEAT),IVORY,TRIM0#
main71072-53101-C0i200208
W(POWER SEAT),BLACK,TRIM2#
main71072-53110-A1i200107-200208
W(POWER SEAT & SEAT HEATER),IVORY,TRIM0#
main71072-53110-C0i200107-200208
W(POWER SEAT & SEAT HEATER),BLACK,TRIM2#
main71072-53111-A1i200208
W(POWER SEAT & SEAT HEATER),IVORY,TRIM0#
main71072-53111-C0i200208
W(POWER SEAT & SEAT HEATER),BLACK,TRIM2#
main71072-53130-A0i200107
IVORY,TRIM0#
main71072-53130-C0i200107
BLACK,TRIM2#
main71072-53140-A0i200107
W(SEAT HEATER),IVORY,TRIM0#
main71072-53140-C0i200107
W(SEAT HEATER),BLACK,TRIM2#
main71072-53190-A0i200107-200208
W(POWER SEAT & LEATHER SEAT),IVORY,TRIM0#
main71072-53190-C0i200107-200208
W(POWER SEAT & LEATHER SEAT),BLACK,TRIM2#
main71072-53191-A0i200208
W(POWER SEAT & LEATHER SEAT),IVORY,TRIM0#
main71072-53191-B0i200301-200306
SPORTS DESIGN(USA/HAWAII/P.RICO), W(POWER SEAT & LEATHER SEAT),GRAY,TRIM21
main71072-53191-C0i200208
W(POWER SEAT & LEATHER SEAT),BLACK,TRIM2#
main71072-53200-A0i200107-200208
W(POWER SEAT & SEAT HEATER & LEATHER SEAT),IVORY,TRIM0#
main71072-53200-C0i200107-200208
W(POWER SEAT & SEAT HEATER & LEATHER SEAT),BLACK,TRIM2#
main71072-53201-A0i200208
W(POWER SEAT & SEAT HEATER & LEATHER SEAT),IVORY,TRIM0#
main71072-53201-B0i200301-200306
SPORTS DESIGN(USA/HAWAII/P.PICO),W(SEAT HEATER),GRAY,TRIM21
main71072-53201-C0i200301-200306
SPORTS DESIGN(USA/HAWAII/P.RICO);W(POWER SEAT & SEAT HEATER & LEATHER SEAT),BLACK,TRIM2#
main71072-53280-B0i200401-200406
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),LIGHT GRAY
main71072-53290-B0i200401-200406
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO) & W(SEAT HEATER),LIGHT GRAY
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-53010-C1i200005-200107
W(SEAT HEATER) & SEAT = TYPE A-*104,BLACK,TRIM2#
main71073-53020-A1i200005-200107
SEAT = TYPE B-*104,IVORY,TRIM0#
main71073-53020-C1i200005-200107
SEAT = TYPE B-*104,BLACK,TRIM2#
main71073-53060-C2i200005-200107
SEAT = TYPE A-*104,BLACK,TRIM2#
main71073-53080-A1i200005-200107
W(SEAT HEATER) & SEAT = TYPE B-*104,IVORY,TRIM0#
main71073-53080-C1i200005-200107
W(SEAT HEATER) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71073-53100-A1i200107-200308
SEAT = TYPE C-*104,IVORY,TRIM0#
main71073-53100-C0i200107-200308
SEAT = TYPE C-*104,BLACK,TRIM2#
main71073-53101-A2i200308
SEAT = TYPE C-*104,IVORY,TRIM0#
main71073-53101-C1i200308
SEAT = TYPE C-*104,BLACK,TRIM2#
main71073-53110-A1i200107-200308
W(SEAT HEATER) & SEAT = TYPE C-*104,IVORY,TRIM0#
main71073-53110-C0i200107-200308
W(SEAT HEATER) & SEAT = TYPE C-*104,BLACK,TRIM2#
main71073-53111-A2i200308
W(SEAT HEATER) & SEAT = TYPE C-*104,IVORY,TRIM0#
main71073-53111-C1i200308
W(SEAT HEATER) & SEAT = TYPE C-*104,BLACK,TRIM2#
main71073-53150-A0i200107
SEAT = TYPE A-*104,IVORY,TRIM0#
main71073-53150-C0i200107
SEAT = TYPE A-*104,BLACK,TRIM2#
main71073-53160-A0i200107
W(SEAT HEATER) & SEAT = TYPE A-*104,IVORY,TRIM0#
main71073-53160-C0i200107
W(SEAT HEATER) & SEAT = TYPE A-*104,BLACK,TRIM2#
main71073-53170-A0i200107
W(FRONT SEAT BACK TABLE) & SEAT = TYPE A-*104,IVORY,TRIM0#
main71073-53170-C0i200107
W(FRONT SEAT BACK TABLE) & SEAT = TYPE A-*104,BLACK,TRIM2#
main71073-53180-A0i200107
W(FRONT SEAT BACK TABLE & SEAT HEATER) & SEAT = TYPE A-*104,IVORY,TRIM0#
main71073-53180-C0i200107
W(FRONT SEAT BACK TABLE & SEAT HEATER) & SEAT = TYPE A-*104,BLACK,TRIM2#
main71073-53190-A0i200107
W(FRONT SEAT BACK TABLE) & SEAT = TYPE C-*104,IVORY,TRIM0#
main71073-53190-C0i200107
W(FRONT SEAT BACK TABLE) & SEAT = TYPE C-*104,BLACK,TRIM2#
main71073-53200-A0i200107
W(FRONT SEAT BACK TABLE & SEAT HEATER) & SEAT = TYPE C-*104,IVORY,TRIM0#
main71073-53200-C0i200107
W(FRONT SEAT BACK TABLE & SEAT HEATER) & SEAT = TYPE C-*104,BLACK,TRIM2#
main71073-53210-A0i200107-200308
SEAT = TYPE B-*104,IVORY,TRIM0#
main71073-53210-B0i200301-200306
SPORTS DESIGN(USA/HAWAII/P.RICO), SEAT = TYPE B-*104,GRAY,TRIM21
main71073-53210-C0i200107-200308
SEAT = TYPE B-*104,BLACK,TRIM2#
main71073-53211-A1i200308
SEAT = TYPE B-*104,IVORY,TRIM0#
main71073-53211-C1i200308
SEAT = TYPE B-*104,BLACK,TRIM2#
main71073-53220-A0i200107-200308
W(SEAT HEATER) & SEAT = TYPE B-*104,IVORY,TRIM0#
main71073-53220-B0i200301-200306
SPORTS DESIGN(USA/HAWAII/P.PICO),W(SEAT HEATER),GRAY,TRIM21
main71073-53220-C0i200107-200308
W(SEAT HEATER) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71073-53221-A1i200308
W(SEAT HEATER) & SEAT = TYPE B-*104,IVORY,TRIM0#
main71073-53221-C1i200308
W(SEAT HEATER) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71073-53230-A0i200107
W(FRONT SEAT BACK TABLE) & SEAT = TYPE B-*104,IVORY,TRIM0#
main71073-53230-C0i200107
W(FRONT SEAT BACK TABLE) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71073-53240-A0i200107
W(FRONT SEAT BACK TABLE & SEAT HEATER) & SEAT = TYPE B-*104,IVORY,TRIM0#
main71073-53240-C0i200107
W(FRONT SEAT BACK TABLE & SEAT HEATER) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71073-53290-B0i200401-200406
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),LIGHT GRAY
main71073-53300-B0i200401-200406
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO) & W(SEAT HEATER),LIGHT GRAY
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-53020-C2i200005-200107
SEAT = TYPE A-*104,BLACK,TRIM2#
main71074-53030-A1i200005-200107
W(SEAT HEATER) & SEAT = TYPE B-*104,IVORY,TRIM0#
main71074-53030-C1i200005-200107
W(SEAT HEATER) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71074-53040-C1i200005-200107
W(SEAT HEATER) & SEAT = TYPE A-*104,BLACK,TRIM2#
main71074-53050-A2i200005-200107
SEAT = TYPE B-*104,IVORY,TRIM0#
main71074-53050-C1i200005-200107
SEAT = TYPE B-*104,BLACK,TRIM2#
main71074-53070-A1i200005-200107
SEAT = TYPE C-*104,IVORY,TRIM0#
main71074-53070-C0i200107-200308
SEAT = TYPE C-*104,BLACK,TRIM2#; W(FRONT SEAT BACK TABLE) & SEAT = TYPE C-*104,BLACK,TRIM2#
main71074-53071-A2i200308
SEAT = TYPE C-*104,IVORY,TRIM0#
main71074-53071-C1i200308
SEAT = TYPE C-*104,BLACK,TRIM2#
main71074-53080-A1i200107-200308
W(FRONT SEAT BACK TABLE & SEAT HEATER) & SEAT = TYPE C-*104,IVORY,TRIM0#; W(SEAT HEATER) & SEAT = TYPE C-*104,IVORY,TRIM0#
main71074-53080-C0i200107-200308
W(FRONT SEAT BACK TABLE & SEAT HEATER) & SEAT = TYPE C-*104,BLACK,TRIM2#; W(SEAT HEATER) & SEAT = TYPE C-*104,BLACK,TRIM2#
main71074-53081-A2i200308
W(SEAT HEATER) & SEAT = TYPE C-*104,IVORY,TRIM0#
main71074-53081-C1i200308
W(SEAT HEATER) & SEAT = TYPE C-*104,BLACK,TRIM2#
main71074-53100-A0i200107
SEAT = TYPE A-*104,IVORY,TRIM0#; W(FRONT SEAT BACK TABLE) & SEAT = TYPE A-*104,IVORY,TRIM0#
main71074-53100-C0i200107
SEAT = TYPE A-*104,BLACK,TRIM2#; W(FRONT SEAT BACK TABLE) & SEAT = TYPE A-*104,BLACK,TRIM2#
main71074-53110-A0i200107
W(FRONT SEAT BACK TABLE & SEAT HEATER) & SEAT = TYPE A-*104,IVORY,TRIM0#; W(SEAT HEATER) & SEAT = TYPE A-*104,IVORY,TRIM0#
main71074-53110-C0i200107
W(FRONT SEAT BACK TABLE & SEAT HEATER) & SEAT = TYPE A-*104,BLACK,TRIM2#; W(SEAT HEATER) & SEAT = TYPE A-*104,BLACK,TRIM2#
main71074-53150-A0i200107-200308
SEAT = TYPE B-*104,IVORY,TRIM0#; W(FRONT SEAT BACK TABLE) & SEAT = TYPE B-*104,IVORY,TRIM0#
main71074-53150-B0i200301-200306
SPORTS DESIGN(USA/HAWAII/P.RICO), SEAT = TYPE B-*104,GRAY,TRIM21
main71074-53150-C0i200107-200308
SEAT = TYPE B-*104,BLACK,TRIM2#; W(FRONT SEAT BACK TABLE) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71074-53151-A1i200308
SEAT = TYPE B-*104,IVORY,TRIM0#
main71074-53151-C1i200308
SEAT = TYPE B-*104,BLACK,TRIM2#
main71074-53160-A0i200107-200308
W(FRONT SEAT BACK TABLE & SEAT HEATER) & SEAT = TYPE B-*104,IVORY,TRIM0#; W(SEAT HEATER) & SEAT = TYPE B-*104,IVORY,TRIM0#
main71074-53160-B0i200301-200306
SPORTS DESIGN(USA/HAWAII/P.PICO),W(SEAT HEATER),GRAY,TRIM21
main71074-53160-C0i200107-200308
W(FRONT SEAT BACK TABLE & SEAT HEATER) & SEAT = TYPE B-*104,BLACK,TRIM2#; W(SEAT HEATER) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71074-53161-A1i200308
W(SEAT HEATER) & SEAT = TYPE B-*104,IVORY,TRIM0#
main71074-53161-C1i200308
W(SEAT HEATER) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71074-53240-B0i200401-200406
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),LIGHT GRAY
main71074-53250-B0i200401-200406
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO) & W(SEAT HEATER),LIGHT GRAY
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-53100-C1i200005-200107
XXXX,TRIM2#
main71410-53110-C1i200005-200107
W(SEAT HEATER),BLACK,TRIM2#
main71410-53121-A0i200005-200107
LUXUARY PACKAGE,IVORY,TRIM0#
main71410-53131-A0i200005-200107
LUXUARY PACKAGE & SEAT HEATER,IVORY,TRIM0#
main71410-53141-A1i200005-200107
W(SEAT HEATER & LEATHER SEAT),IVORY,TRIM0#
main71410-53141-C1i200005-200107
W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM2#
main71410-53170-A1i200005-200107
IVORY,TRIM0#
main71410-53170-C0i200005-200107
BLACK,TRIM0#,2#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-53040-C0i200005-200107
BLACK,TRIM2#
main71420-53050-A0i200005-200107
W(SEAT HEATER & LEATHER SEAT),IVORY,TRIM0#
main71420-53050-C0i200005-200107
W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM2#
main71420-53060-C0i200005-200107
W(SEAT HEATER),BLACK,TRIM2#
main71420-53080-A0i200005-200107
W(LEATHER SEAT),IVORY,TRIM0#
main71420-53080-C0i200005-200107
W(LEATHER SEAT),BLACK,TRIM2#
main71420-53110-A0i200005-200107
W(POWER SEAT),IVORY,TRIM0#
main71420-53120-A0i200005-200107
W(POWER SEAT & SEAT HEATER),IVORY,TRIM0#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-53010-A0i200005-200107
W(LEATHER SEAT),IVORY,TRIM0#
main71430-53010-C0i200005-200107
W(LEATHER SEAT),BLACK,TRIM2#
main71430-53060-C0i200005-200107
BLACK,TRIM2#
main71430-53080-A0i200005-200107
W(SEAT HEATER & LEATHER SEAT),IVORY,TRIM0#
main71430-53080-C0i200005-200107
W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM2#
main71430-53120-C0i200005-200107
W(SEAT HEATER),BLACK,TRIM2#
main71430-53150-A0i200005-200107
W(POWER SEAT),IVORY,TRIM0#
main71430-53160-A0i200005-200107
W(POWER SEAT & SEAT HEATER),IVORY,TRIM0#
main71430-53200-A0i200107-200208
W(POWER SEAT),IVORY,TRIM0#
main71430-53200-C0i200107-200208
W(POWER SEAT),BLACK,TRIM2#
main71430-53201-A0i200208-200308
W(POWER SEAT) & SEAT = TYPE C-*104,IVORY,TRIM0#
main71430-53201-C0i200208-200308
W(POWER SEAT) & SEAT = TYPE C-*104,BLACK,TRIM2#
main71430-53202-A0i200308
SEAT = TYPE C-*104,IVORY,TRIM0#
main71430-53202-C0i200308
SEAT = TYPE C-*104,BLACK,TRIM2#
main71430-53210-A0i200107-200208
W(LEATHER SEAT),IVORY,TRIM0#
main71430-53210-C0i200107-200208
W(LEATHER SEAT),BLACK,TRIM2#
main71430-53211-A0i200208-200308
W(LEATHER SEAT) & SEAT = TYPE B-*104,IVORY,TRIM0#
main71430-53211-B0i200301-200306
SPORTS DESIGN(USA/HAWAII/P.RICO), W(LEATHER SEAT),GRAY,TRIM21
main71430-53211-C0i200208-200308
W(LEATHER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71430-53212-A0i200308
SEAT = TYPE B-*104,IVORY,TRIM0#
main71430-53212-C0i200308
SEAT = TYPE B-*104,BLACK,TRIM2#
main71430-53220-A0i200107-200208
W(POWER SEAT & SEAT HEATER),IVORY,TRIM0#
main71430-53220-C0i200107-200208
W(POWER SEAT & SEAT HEATER),BLACK,TRIM2#
main71430-53221-A0i200208-200308
W(POWER SEAT & SEAT HEATER) & SEAT = TYPE C-*104,IVORY,TRIM0#
main71430-53221-C0i200208-200308
W(POWER SEAT & SEAT HEATER) & SEAT = TYPE C-*104,BLACK,TRIM2#
main71430-53222-A0i200308
W(SEAT HEATER) & SEAT = TYPE C-*104,IVORY,TRIM0#
main71430-53222-C0i200308
W(SEAT HEATER) & SEAT = TYPE C-*104,BLACK,TRIM2#
main71430-53230-A0i200107-200208
W(SEAT HEATER & LEATHER SEAT),IVORY,TRIM0#
main71430-53230-C0i200107-200208
W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM2#
main71430-53231-A0i200208-200308
W(SEAT HEATER & LEATHER SEAT) & SEAT = TYPE B-*104,IVORY,TRIM0#
main71430-53231-C0i200208-200308
W(SEAT HEATER & LEATHER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71430-53232-A0i200308
W(SEAT HEATER) & SEAT = TYPE B-*104,IVORY,TRIM0#
main71430-53232-C0i200308
W(SEAT HEATER) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71430-53240-A0i200107
SEAT = TYPE A-*104,IVORY,TRIM0#
main71430-53240-C0i200107
SEAT = TYPE A-*104,BLACK,TRIM2#
main71430-53250-A0i200107
W(SEAT HEATER) & SEAT = TYPE A-*104,IVORY,TRIM0#
main71430-53250-C0i200107
W(SEAT HEATER) & SEAT = TYPE A-*104,BLACK,TRIM2#
main71430-53260-A0i200107
SEAT = TYPE A-*104,IVORY,TRIM0#
main71430-53260-C0i200107
SEAT = TYPE A-*104,BLACK,TRIM2#
main71430-53270-A0i200107
W(SEAT HEATER) & SEAT = TYPE A-*104,IVORY,TRIM0#
main71430-53270-C0i200107
W(SEAT HEATER) & SEAT = TYPE A-*104,BLACK,TRIM2#
main71430-53280-A0i200107-200208
W(POWER SEAT),IVORY,TRIM0#
main71430-53280-C0i200107-200208
W(POWER SEAT),BLACK,TRIM2#
main71430-53281-A0i200208
W(POWER SEAT) & SEAT = TYPE C-*104,IVORY,TRIM0#
main71430-53281-C0i200208
W(POWER SEAT) & SEAT = TYPE C-*104,BLACK,TRIM2#
main71430-53290-A0i200107-200208
W(POWER SEAT & SEAT HEATER),IVORY,TRIM0#
main71430-53290-C0i200107-200208
W(POWER SEAT & SEAT HEATER),BLACK,TRIM2#
main71430-53291-A0i200208
W(POWER SEAT & SEAT HEATER) & SEAT = TYPE C-*104,IVORY,TRIM0#
main71430-53291-C0i200208
W(POWER SEAT & SEAT HEATER) & SEAT = TYPE C-*104,BLACK,TRIM2#
main71430-53300-A0i200107-200208
W(POWER SEAT & LEATHER SEAT),IVORY,TRIM0#
main71430-53300-C0i200107-200208
W(POWER SEAT & LEATHER SEAT),BLACK,TRIM2#
main71430-53301-A0i200208
W(POWER SEAT & LEATHER SEAT) & SEAT = TYPE B-*104,IVORY,TRIM0#
main71430-53301-C0i200208
W(POWER SEAT & LEATHER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71430-53310-A0i200107-200208
W(POWER SEAT & SEAT HEATER & LEATHER SEAT),IVORY,TRIM0#
main71430-53310-C0i200107-200208
W(POWER SEAT & SEAT HEATER & LEATHER SEAT),BLACK,TRIM2#
main71430-53311-A0i200208
W(POWER SEAT & SEAT HEATER & LEATHER SEAT) & SEAT = TYPE B-*104,IVORY,TRIM0#
main71430-53311-C0i200208
W(POWER SEAT & SEAT HEATER & LEATHER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71430-53360-B0i200401-200406
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),LIGHT GRAY
main71430-53370-B0i200401-200406
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO) & W(SEAT HEATER),LIGHT GRAY
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-53020-C0i200005-200107
BLACK,TRIM2#
main71440-53030-A0i200005-200107
W(SEAT HEATER & LEATHER SEAT),IVORY,TRIM0#
main71440-53030-C0i200005-200107
W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM2#
main71440-53040-C0i200005-200107
W(SEAT HEATER),BLACK,TRIM2#
main71440-53050-A0i200005-200107
W(LEATHER SEAT),IVORY,TRIM0#
main71440-53050-C0i200005-200107
W(LEATHER SEAT),BLACK,TRIM2#
main71440-53070-A0i200005-200107
W(POWER SEAT),IVORY,TRIM0#
main71440-53080-A0i200005-200107
W(POWER SEAT & SEAT HEATER),IVORY,TRIM0#
main71440-53110-A0i200107-200208
W(POWER SEAT),IVORY,TRIM0#
main71440-53110-C0i200107-200208
W(POWER SEAT),BLACK,TRIM2#
main71440-53111-A0i200208-200308
W(POWER SEAT) & SEAT = TYPE C-*104,IVORY,TRIM0#
main71440-53111-C0i200208-200308
W(POWER SEAT) & SEAT = TYPE C-*104,BLACK,TRIM2#
main71440-53112-A0i200308
SEAT = TYPE C-*104,IVORY,TRIM0#
main71440-53112-C0i200308
SEAT = TYPE C-*104,BLACK,TRIM2#
main71440-53120-A0i200107-200208
W(POWER SEAT & LEATHER SEAT),IVORY,TRIM0#
main71440-53120-C0i200107-200208
W(POWER SEAT & LEATHER SEAT),BLACK,TRIM2#
main71440-53121-A0i200208-200308
W(POWER SEAT & LEATHER SEAT) & SEAT = TYPE B-*104,IVORY,TRIM0#
main71440-53121-B0i200301-200306
SPORTS DESIGN(USA/HAWAII/P.RICO), W(POWER SEAT & LEATHER SEAT),GRAY,TRIM21
main71440-53121-C0i200208-200308
W(POWER SEAT & LEATHER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71440-53122-A0i200308
SEAT = TYPE B-*104,IVORY,TRIM0#
main71440-53122-C0i200308
SEAT = TYPE B-*104,BLACK,TRIM2#
main71440-53130-A0i200107-200208
W(POWER SEAT & SEAT HEATER),IVORY,TRIM0#
main71440-53130-C0i200107-200208
W(POWER SEAT & SEAT HEATER),BLACK,TRIM2#
main71440-53131-A0i200208-200308
W(POWER SEAT & SEAT HEATER) & SEAT = TYPE C-*104,IVORY,TRIM0#
main71440-53131-C0i200208-200308
W(POWER SEAT & SEAT HEATER) & SEAT = TYPE C-*104,BLACK,TRIM2#
main71440-53132-A0i200308
W(SEAT HEATER) & SEAT = TYPE C-*104,IVORY,TRIM0#
main71440-53132-C0i200308
W(SEAT HEATER) & SEAT = TYPE C-*104,BLACK,TRIM2#
main71440-53140-A0i200107-200208
W(POWER SEAT & SEAT HEATER & LEATHER SEAT),IVORY,TRIM0#
main71440-53140-C0i200107-200208
W(POWER SEAT & SEAT HEATER & LEATHER SEAT),BLACK,TRIM2#
main71440-53141-A0i200208-200308
W(POWER SEAT & SEAT HEATER & LEATHER SEAT) & SEAT = TYPE B-*104,IVORY,TRIM0#
main71440-53141-C0i200208-200308
W(POWER SEAT & SEAT HEATER & LEATHER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71440-53142-A0i200308
W(SEAT HEATER) & SEAT = TYPE B-*104,IVORY,TRIM0#
main71440-53142-C0i200308
W(SEAT HEATER) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71440-53170-A0i200107
SEAT = TYPE A-*104,IVORY,TRIM0#
main71440-53170-C0i200107
SEAT = TYPE A-*104,BLACK,TRIM2#
main71440-53200-A0i200107
W(SEAT HEATER) & SEAT = TYPE A-*104,IVORY,TRIM0#
main71440-53200-C0i200107
W(SEAT HEATER) & SEAT = TYPE A-*104,BLACK,TRIM2#
main71440-53270-B0i200401-200406
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),LIGHT GRAY
main71440-53280-B0i200401-200406
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO) & W(SEAT HEATER),LIGHT GRAY
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71051-53010i200105-200107
W(WARNING SENSOR)
main71051-53020i200107
W(WARNING SENSOR)
main71051-53030i200107-200208
W(POWER SEAT & WARNING SENSOR)
main71051-53031i200208
W(POWER SEAT & WARNING SENSOR)
main71051-53040i200107-200208
W(POWER SEAT & WARNING SENSOR & LEATHER SEAT)
main71051-53041i200208
W(POWER SEAT & WARNING SENSOR & LEATHER SEAT)
main71051-53050i200107-200208
W(FRONT SEAT BACK TABLE & POWER SEAT & WARNING SENSOR & LEATHER SEAT)
main71051-53052i200208
W(FRONT SEAT BACK TABLE & POWER SEAT & WARNING SENSOR & LEATHER SEAT)
main71052-53040i200107-200208
W(POWER SEAT & WARNING SENSOR)
main71052-53042i200208
W(POWER SEAT & WARNING SENSOR)
main71511-53030×2i200005-200107
W(POWER SEAT)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-53030i200107-200208
W(POWER SEAT)
main71511-53031i200208
W(POWER SEAT)
main71511-53060i200107-200208
W(POWER SEAT & LEATHER SEAT)
main71511-53061i200208
W(POWER SEAT & LEATHER SEAT)
main71512-53020i200005-200107
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-53010i200005-200107
main71630-53030i200107
W(FRONT SEAT BACK TABLE)
main71630-53040i200408
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71630-53010i200005-200107
main71630-53040i200408
71910AHEADREST ASSY, FRONT SEAT
main71910-53020-A0×2i200005-200107
IVORY,TRIM0#
main71910-53020-C0×2i200005-200107
W(LEATHER SEAT),BLACK,TRIM2#
main71910-53030-A1×2i200107
IVORY,TRIM0#
main71910-53030-C0×2i200005-200107
BLACK,TRIM2#
main71910-53040-A2×2i200107
W(POWER SEAT),IVORY,TRIM0#
main71910-53040-B0×2i200301-200306
SPORTS DESIGN(USA/HAWAII/P.RICO), W(POWER SEAT),GRAY,TRIM21
main71910-53040-C0×2i200107
W(POWER SEAT),BLACK,TRIM2#
main71910-53080-B0i200401-200406
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),LIGHT GRAY
71931SUPPORT, FRONT SEAT HEADREST
main71930-47010-A0i200107
W(LOCK),W(SEAT BACK TABEL),IVORY,TRIM0#
main71930-47010-C0i200107
W(LOCK),W(SEAT BACK TABEL),BLACK,TRIM2#
main71931-47010-A0i200107
W/O(LOCK),W(SEAT BACK TABEL),IVORY,TRIM0#
main71931-47010-C0i200107
W/O(LOCK),W(SEAT BACK TABEL),BLACK,TRIM2#
main71932-60020-A0i200107
W/O(LOCK),IVORY,TRIM0#
main71932-60020-C0i200107
W/O(LOCK),BLACK,TRIM2#
main71970-60290-A0i200107
W(LOCK),IVORY,TRIM0#
main71970-60290-C0i200107
W(LOCK),BLACK,TRIM2#
73909ADOOR SUB-ASSY, SEAT AIRBAG
main73909-53030-A0i200005-200107
IVORY,TRIM0#,RH
main73909-53030-C0i200005-200107
BLACK,TRIM2#,RH
main73909-53040-A0i200107
IVORY,TRIM0#,LH
main73909-53040-C0i200005-200107
BLACK,TRIM2#,LH
73913WIRE, SEAT AIRBAG
main73913-53010i200107
LH
main73913-53030i200107
RH
73915COVER, SEAT AIRBAG NO.1, RH
main73915-53030-A0i200005-200107
IVORY,TRIM0#
main73915-53030-C0i200005-200107
BLACK,TRIM2#
73915ACOVER, SEAT AIRBAG NO.2, RH
main73915-53040-A0i200005-200107
IVORY,TRIM0#
main73915-53040-C0i200005-200107
BLACK,TRIM2#
73925COVER, SEAT AIRBAG NO.1, LH
main73925-53030-A0i200005-200107
IVORY,TRIM0#
main73925-53030-C0i200107
BLACK,TRIM2#
73925ACOVER, SEAT AIRBAG NO.2, LH
main73925-53040-A0i200005-200107
IVORY,TRIM0#
main73925-53040-C0i200005-200107
BLACK,TRIM2#
8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10070
8271110330WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10330
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
9010905097
main90109-05097
9017906299
main90179-06299
9046313003
main90463-13003
9046804109
main90468-04109
9046816019
main90468-16019
9046818008
main90468-18008

31 parts on this diagram · 5 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
