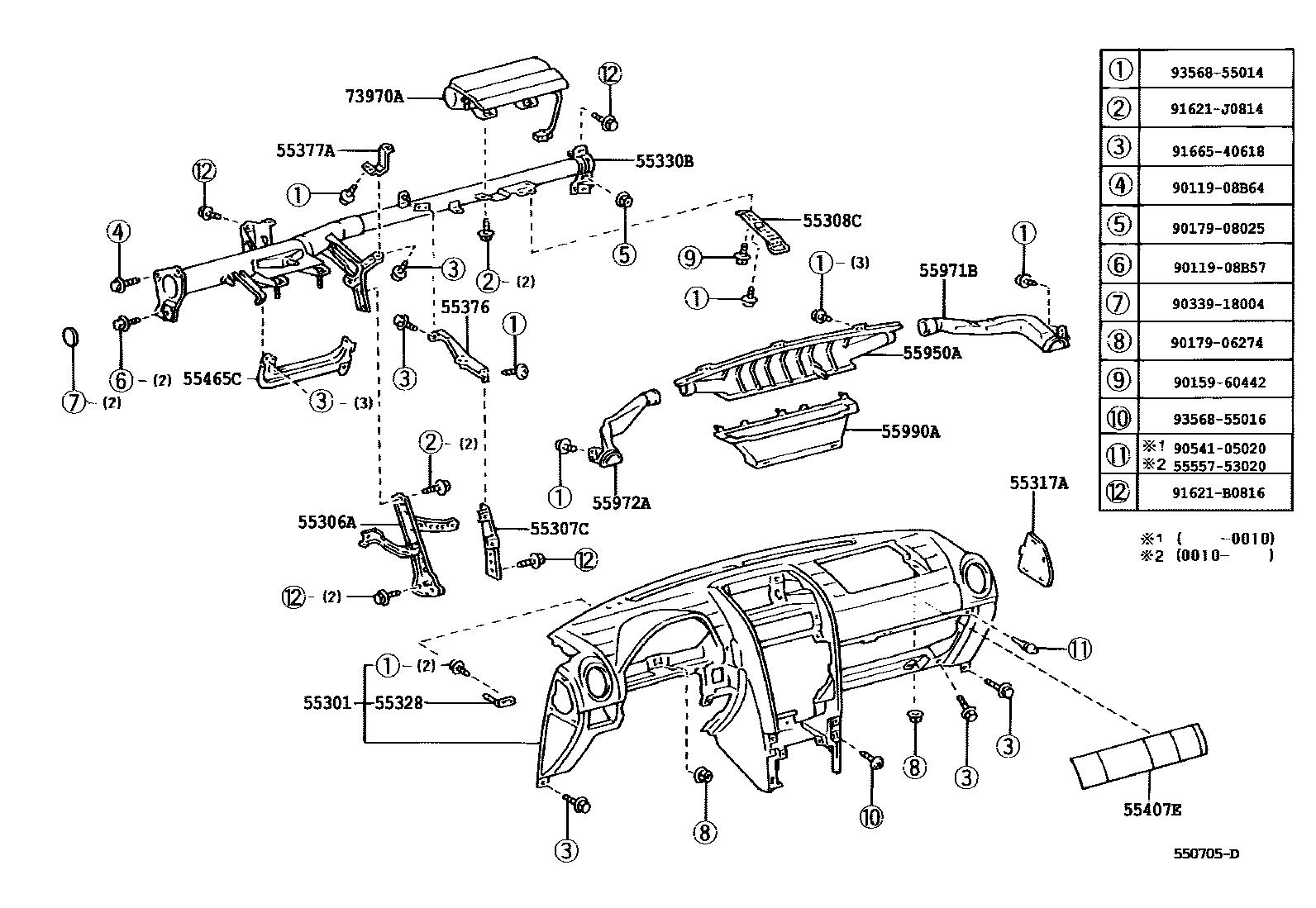

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
TYPE C:REFER TO ILLUSTRATION,IVORY,TRIM0#
TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM0#,2#
TYPE C:REFER TO ILLUSTRATION,BLACK,TRIM0#
TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55317APANEL, INSTRUMENT SIDE, RH
IVORY,TRIM0#
BLACK,TRIM0#,2#
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55407EINSERT SUB-ASSY, INSTRUMENT PANEL SAFETY PAD
55465CINSERT, INSTRUMENT PANEL LOWER PAD, LH
55950ANOZZLE ASSY, DEFROSTER
55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1
55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2
55990ANOZZLE ASSY, DEFROSTER, LOWER
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
5555753020BRACKET, LUGGAGE DOOR OPENING VALVE
main55557-53020
9011908B57
main90119-08B57
9011908B64
main90119-08B64
9015960442
main90159-60442
9017906274
main90179-06274
9017908025
main90179-08025
9033918004
main90339-18004
9054105020
main90541-05020
91621B0816
main91621-B0816
91621J0814
main91621-J0814
9166540618
main91665-40618
9356855014
main93568-55014
9356855016
main93568-55016
29 parts on this diagram · 3 diagrams in section
