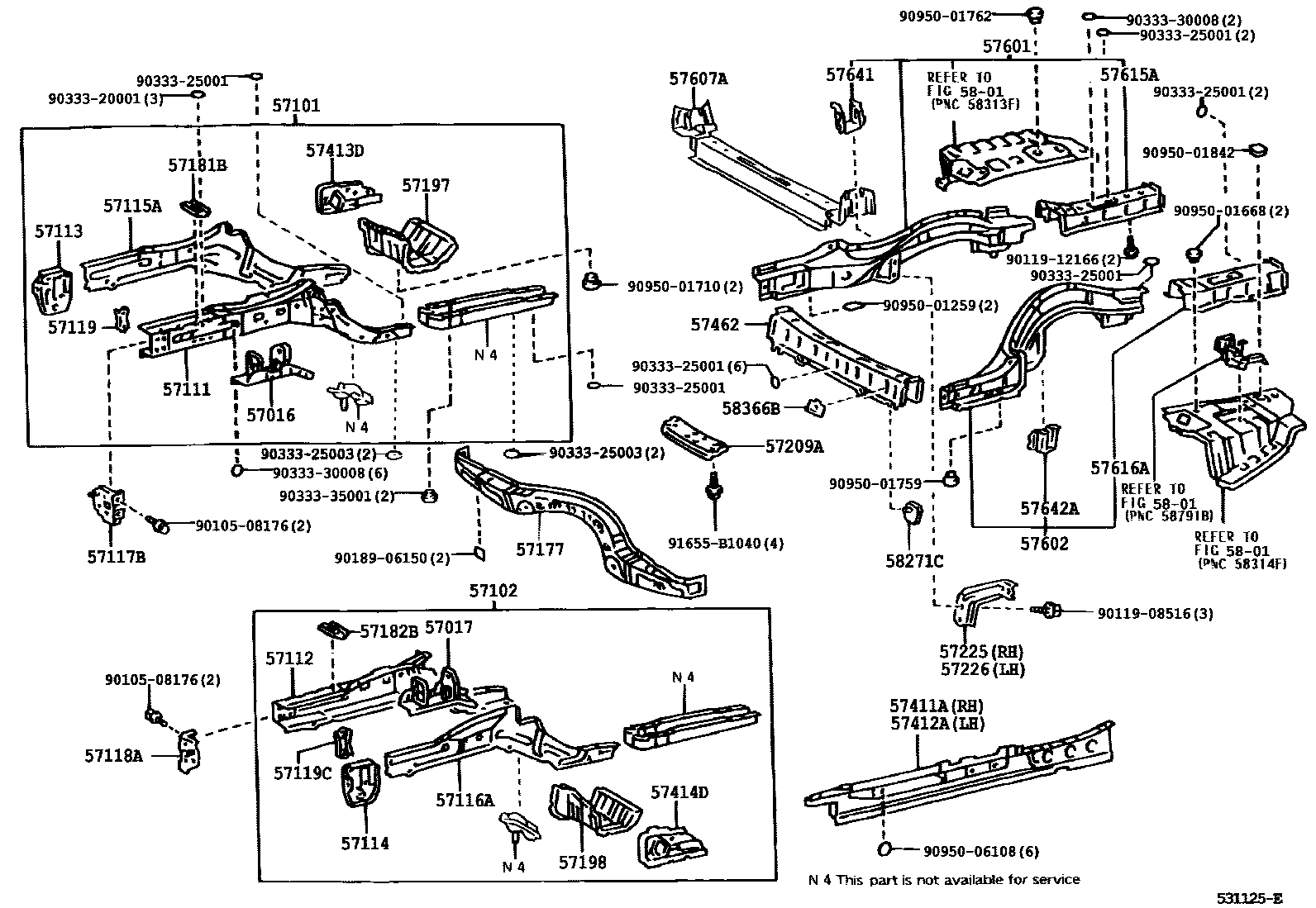

FLOOR SIDE MEMBER

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-51010iJCE10200005-200107

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-51010iJCE10200005-200107

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-53020iJCE10200005-200102

main57101-53021iJCE10200102-200107

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-53020iJCE10200005-200102

main57102-53021iJCE10200102-200107

57111MEMBER, FRONT SIDE, RH

main57111-53020iJCE10200005-200012

main57111-53021iJCE10200012-200404

main57111-53022iJCE10200404

57112MEMBER, FRONT SIDE, LH

main57112-53020iJCE10200005-200404

main57112-53021iJCE10200404

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-53020iJCE10200005-200107

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-53020iJCE10200005-200107

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-53010iJCE10200005-200107

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-53020iJCE10200005-200107

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main52011-53010iJCE10200005-200107

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main52012-53010iJCE10200005-200107

57119PLATE, FRONT SIDE MEMBER, FRONT

main57119-22060iJCE10200005-200107

57119CPLATE, FRONT SIDE MEMBER, FRONT

main57119-22060iJCE10200005-200107

57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL

main57103-53020iJCE10200005-200107

57181BPLATE, FRONT SIDE MEMBER, NO.3 RH

main57181-53010iJCE10200005-200404

main57181-53011iJCE10200404

57182BPLATE, FRONT SIDE MEMBER, NO.3 LH

main57181-53010iJCE10200005-200404

main57181-53011iJCE10200404

57197BOX, TORQUE, FRONT RH

main57197-51010iJCE10200005-200107

57198BOX, TORQUE, FRONT LH

main57198-51010iJCE10200005-200107

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57255-30110iJCE10200005-200107

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-30020iJCE10200005-200107

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-30021iJCE10200005-200107

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-53010iJCE10200005-200107

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-53010iJCE10200005-200107

57413DEXTENSION, FLOOR SIDE, INNER RH

main57413-51010iJCE10200005-200107

57414DEXTENSION, FLOOR SIDE, INNER LH

main57414-51010iJCE10200005-200107

57462MEMBER, CENTER FLOOR CROSS, NO.2

main57405-53010iJCE10..WG200107

main57462-53010iJCE10200005-200105

main57462-53030iJCE10200105-200107

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-53902iJCE10200005-200107

main57601-53905iJCE10..WG200107

main57601-53906iJCE10..SED200107

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-53902iJCE10200005-200107

main57602-53908iJCE10..WG200107-200507

main57602-53909iJCE10..SED200107-200507

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-53010iJCE10..WG200107

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-53902iJCE10200005-200107

main57615-53905iJCE10..WG200107

main57615-53906iJCE10..SED200107

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-53902iJCE10200005-200107

main57616-53903iJCE10200107

57641REINFORCEMENT, REAR FLOOR SIDE MEMBER, INNER RH

main57641-53010iJCE10200005-200101

main57641-53011iJCE10200101-200107

57642AREINFORCEMENT, REAR FLOOR SIDE MEMBER, INNER LH

main57642-53010iJCE10200005-200101

main57642-53011iJCE10200101-200107

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

58271CREINFORCEMENT, BELT ANCHOR TO FROOR PAN, NO.3

main58271-53020iJCE10200105-200107

58366BBRACKET, FUEL TANK SUPPORT, LH

main58366-30050iJCE10200005-200107

9010508176

main90105-08176

9011908516

main90119-08516

9011912166

main90119-12166

9018906150

main90189-06150

9033320001

main90333-20001

9033325001

main90333-25001

9033325003

main90333-25003

9033330008

main90333-30008

9033335001

main90333-35001

9095001259

main90950-01259

9095001668

main90950-01668

9095001710

main90950-01710

9095001759

main90950-01759

9095001762

main90950-01762

9095001842

main90950-01842

9095006108

main90950-06108

91655B1040

main91655-B1040

54 parts on this diagram · 1 diagram in section
