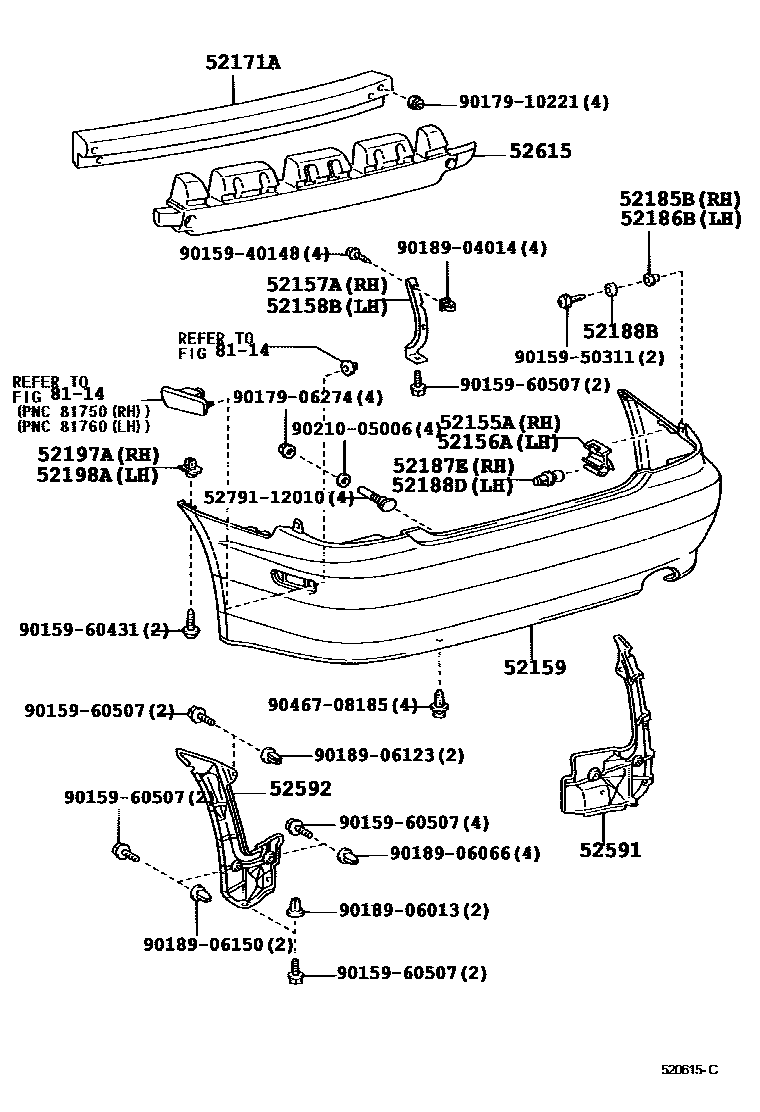

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-53020iJCE10200005-200107

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-53020iJCE10200005-200107

52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-53010iJCE10200005-200107

main52157-53030iJCE10..WG200107

52158BSTAY, REAR BUMPER SIDE, NO.2 LH

main52158-53010iJCE10200005-200107

main52158-53030iJCE10..WG200107

52159COVER, REAR BUMPER

main52159-53902iJCE10200005-200107

main52159-53904iJCE10..WG200107

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-53020iJCE10200005-200107

main52171-53050iJCE10..WG200107

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-53010iJCE10200005-200107

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-53010iJCE10200005-200107

52187EGUIDE, REAR BUMPER LOCATION, RH

main52187-16070iJCE10200005-200107

52188BSPACER, REAR BUMPER MOUNTING

main52188-53010×2iJCE10200005-200107

52188DGUIDE, REAR BUMPER LOCATION, LH

main52187-16070iJCE10200005-200107

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-53010iJCE10200005-200107

52198ABRACKET, REAR BUMPER SEAL, LH

main52197-53010iJCE10200005-200107

52591SEAL, REAR BUMPER SIDE, RH

main52591-53010iJCE10200005-200107

52592SEAL, REAR BUMPER SIDE, LH

main52592-53010iJCE10200005-200107

52615ABSORBER, REAR BUMPER ENERGY

main52615-53020iJCE10200005-200107

main52615-53040iJCE10..WG200107

8114REAR SIDE MARKER LAMP

→ Go to FIG 81-14

5279112010BOLT, BUMPER MOULDING SET, NO.1

main52791-12010

9015940148

main90159-40148

9015950311

main90159-50311

9015960431

main90159-60431

9015960507

main90159-60507

9017906274

main90179-06274

9017910221

main90179-10221

9018904014

main90189-04014

9018906013

main90189-06013

9018906066

main90189-06066

9018906123

main90189-06123

9018906150

main90189-06150

9021005006

main90210-05006

9046708185

main90467-08185

31 parts on this diagram · 2 diagrams in section
