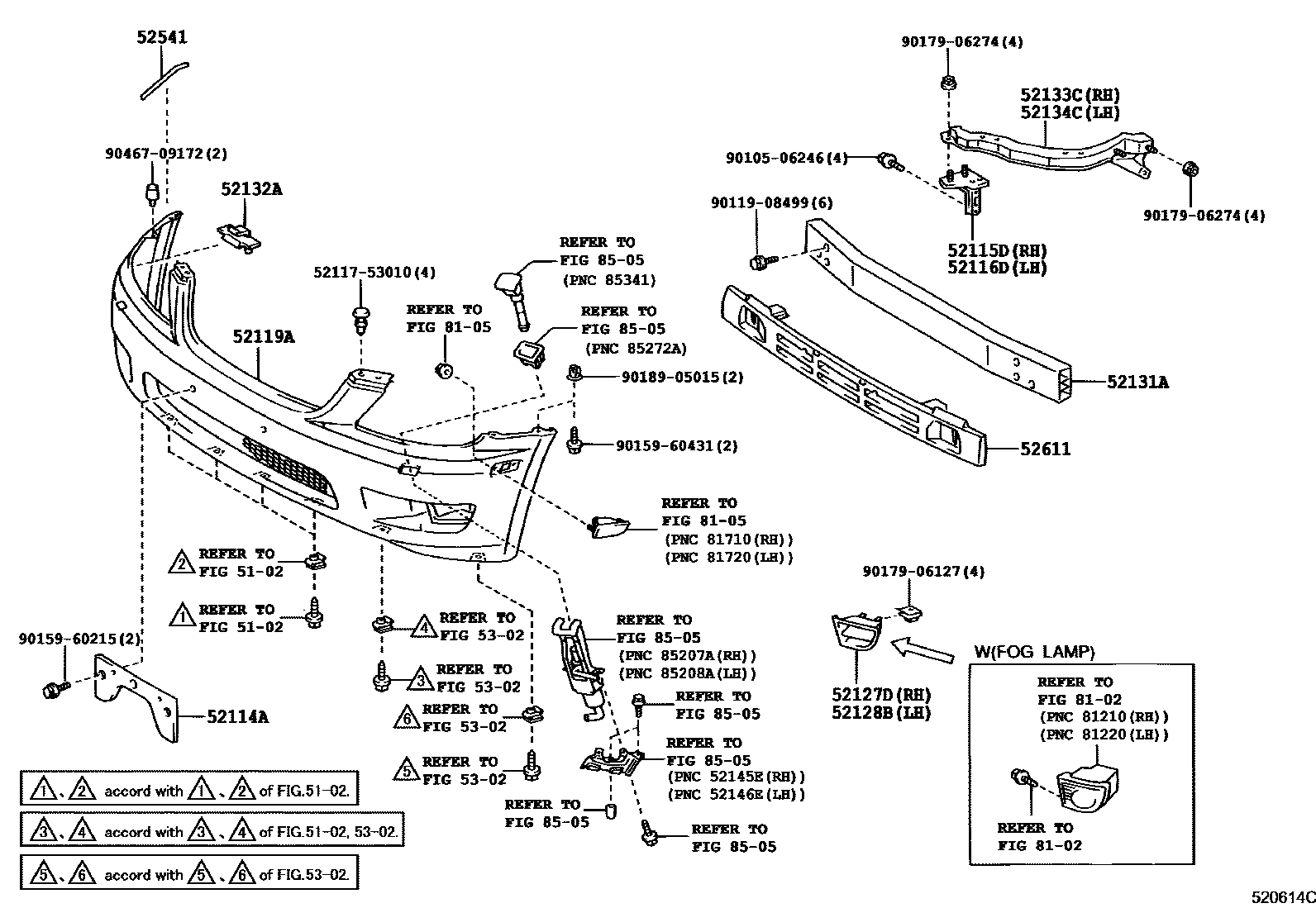

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-53020iJCE10..SED200107

main52114-53050iJCE10..WG200107

52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH

main52115-53010iJCE10200107

52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH

main52116-53010iJCE10200005-200107

52119ACOVER, FRONT BUMPER

main52119-53903iJCE10200005-200107

main52119-53904iJCE10200005-200107

W(HEADLAMP CLEANER)

main52119-53907iJCE10..WG200107

main52119-53908iJCE10..WG200107

W(HEADLAMP CLEANER)

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-53010iJCE10200005-200107

main52127-53020iJCE10..WG200107

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-53010iJCE10200005-200107

main52128-53020iJCE10..WG200107

52131AREINFORCEMENT, FRONT BUMPER

main52131-53030iJCE10200005-200107

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-53010×4iJCE10200005-200107

52133CREINFORCEMENT, FRONT BUMPER BAR, RH

main52133-53010iJCE10200005-200107

52134CREINFORCEMENT, FRONT BUMPER BAR, LH

main52134-53010iJCE10200005-200107

52541PROTECTOR, FRONT BUMPER

main52541-51010×2iJCE10200005-200107

52611ABSORBER, FRONT BUMPER ENERGY

main52611-53020iJCE10200005-200107

main52611-53040iJCE10..WG200107

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

8102FOG LAMP

→ Go to FIG 81-02

8105FRONT MARKER LAMP

→ Go to FIG 81-05

8505HEADLAMP CLEANER

→ Go to FIG 85-05

5211753010MOULDING, BUMPER SIDE, RH

main52117-53010

9010506246

main90105-06246

9011908499

main90119-08499

9015960215

main90159-60215

9015960431

main90159-60431

9017906127

main90179-06127

9017906274

main90179-06274

9018905015

main90189-05015

9046709172

main90467-09172

26 parts on this diagram · 2 diagrams in section
