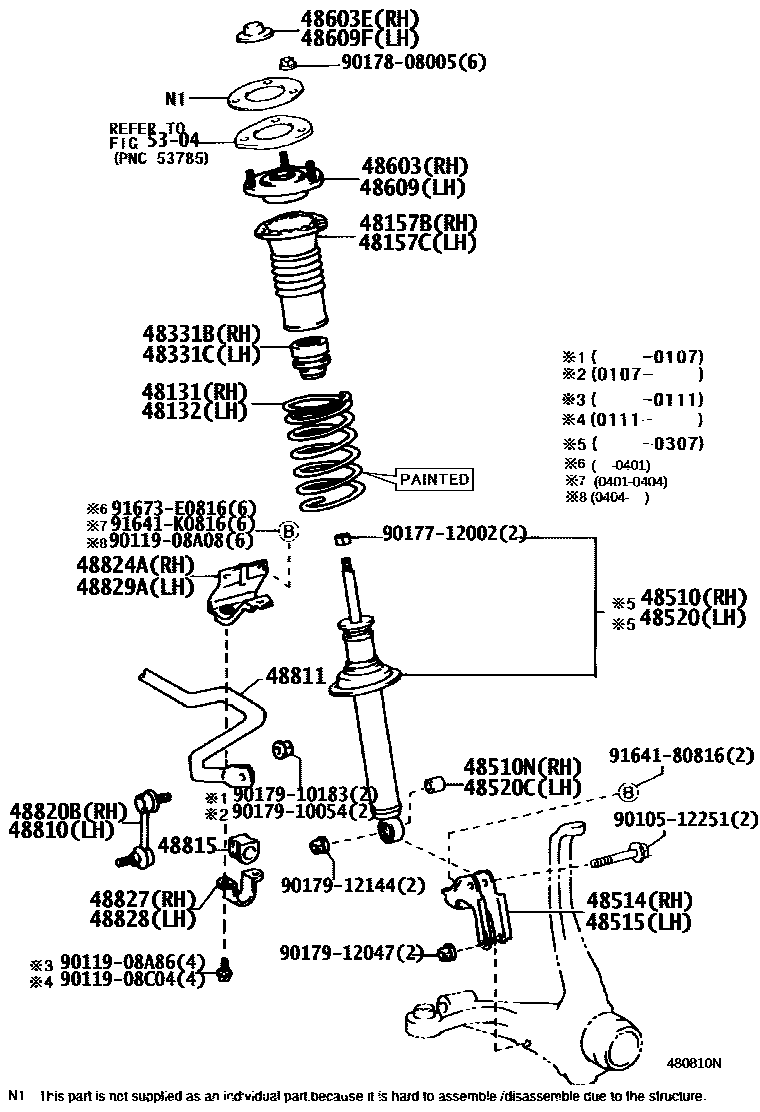

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
L=322.5
PAINTED=LIGHT BLUE
L=326.5,CANADA SPEC
PAINTED=GREEN
PAINTED=LIGHT GREEN
PAINTED=PINK
48132SPRING, FRONT COIL, LH
L=322.5
PAINTED=LIGHT BLUE
PAINTED=GREEN
L=326.5,CANADA SPEC
PAINTED=LIGHT GREEN
PAINTED=PINK
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-53030
MARK 48510-53060
MARK 48510-53071,SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO)
48510NBUSH(FOR FRONT SHOCK ABSORBER RH)
48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH
48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-53030
MARK 48510-53060
MARK 48510-53071,SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO)
48520CBUSH(FOR FRONT SHOCK ABSORBER LH)
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603EPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609FPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
OD=26.5
OD=27.2
48815BUSH, FRONT STABILIZER BAR, NO.1
ID=26.5
ID=27.2
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
5304FRONT FENDER APRON & DASH PANEL
9010512251
main90105-12251
9011908A08
main90119-08A08
9011908A86
main90119-08A86
9011908C04
main90119-08C04
9017712002
main90177-12002
9017808005
main90178-08005
9017910054
main90179-10054
9017910183
main90179-10183
9017912047
main90179-12047
9017912144
main90179-12144
9164180816
main91641-80816
91641K0816
main91641-K0816
91673E0816
main91673-E0816
38 parts on this diagram · 1 diagram in section
