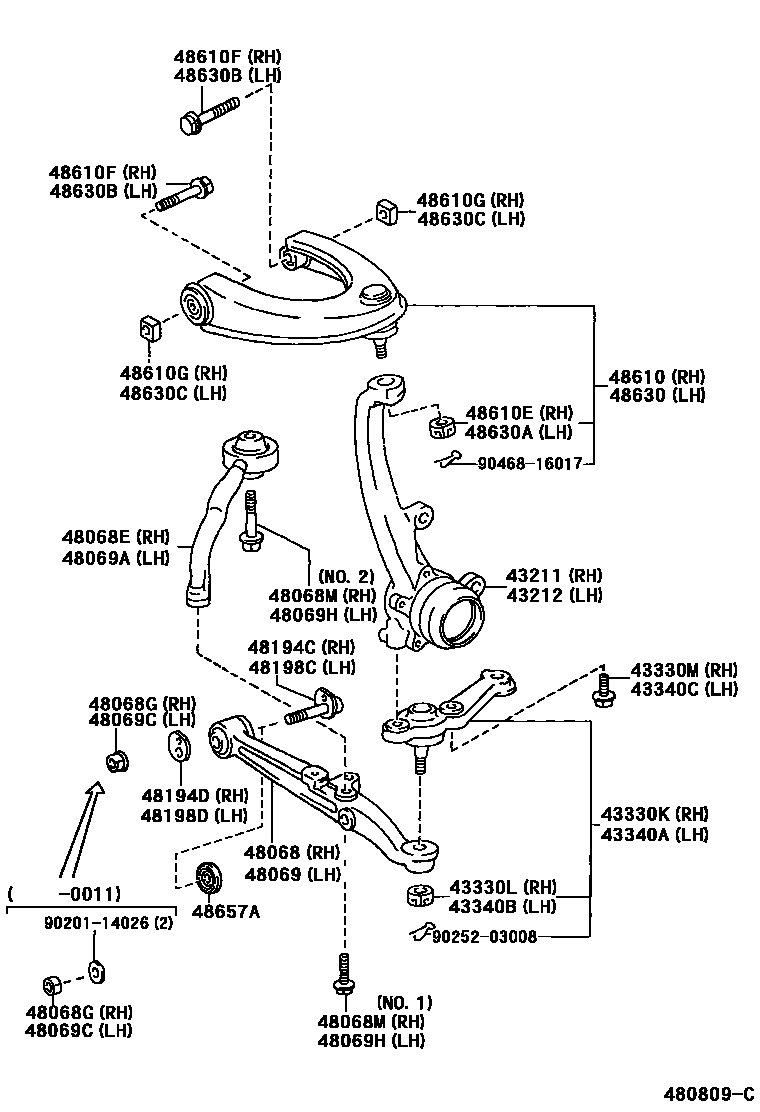

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-30190iJCE10200005-200104

sub43211-30191

main43211-30191iJCE10200104-200107

43212KNUCKLE, STEERING, LH

main43212-30140iJCE10200005-200104

sub43212-30141

main43212-30141iJCE10200104-200107

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-59065iJCE10200005-200009

sub43330-59066

main43330-59066iJCE10200009-200107

sub43330-59135

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14002iJCE10200005-200107

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12141iJCE10200005-200107

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-59065iJCE10200005-200009

sub43340-59066

main43340-59066iJCE10200009-200107

sub43340-59135

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14002iJCE10200005-200107

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12141iJCE10200005-200107

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-53010iJCE10200005-200107

48068EARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 RH

main48660-53010iJCE10200005-200107

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90170-14012iJCE10200005-200011

main90179-14019iJCE10200011-200107

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-16053iJCE10200005-200107

NO.1

main90901-05010iJCE10200005-200107

NO.2

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-53010iJCE10200005-200107

48069AARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 LH

main48670-53010iJCE10200005-200107

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90170-14012iJCE10200005-200011

main90179-14019iJCE10200011-200107

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-16053iJCE10200005-200107

NO.1

main90901-05010iJCE10200005-200107

NO.2

48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH

main48190-22040iJCE10200005-200011

main48190-30070iJCE10200011-200107

48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH

main48198-14010iJCE10200005-200011

sub48198-50011

main48198-30090iJCE10200011-200107

48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH

main48190-22040iJCE10200005-200011

main48190-30070iJCE10200011-200107

48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH

main48198-14010iJCE10200005-200011

sub48198-50011

main48198-30090iJCE10200011-200107

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-59025iJCE10200005-200107

48610ENUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)

main90171-12002iJCE10200005-200107

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90119-10812iJCE10200005-200107

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90173-10010iJCE10200005-200302

main90173-10012iJCE10200302

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-59025iJCE10200005-200107

48630ANUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)

main90171-12002iJCE10200005-200107

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90119-10812iJCE10200005-200107

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90173-10010iJCE10200005-200302

main90173-10012iJCE10200302

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-53010iJCE10200005-200107

9020114026

main90201-14026

9025203008

main90252-03008

9046816017

main90468-16017

32 parts on this diagram · 1 diagram in section
