Toyota LEXUS IS300 — BRAKE TUBE & CLAMP

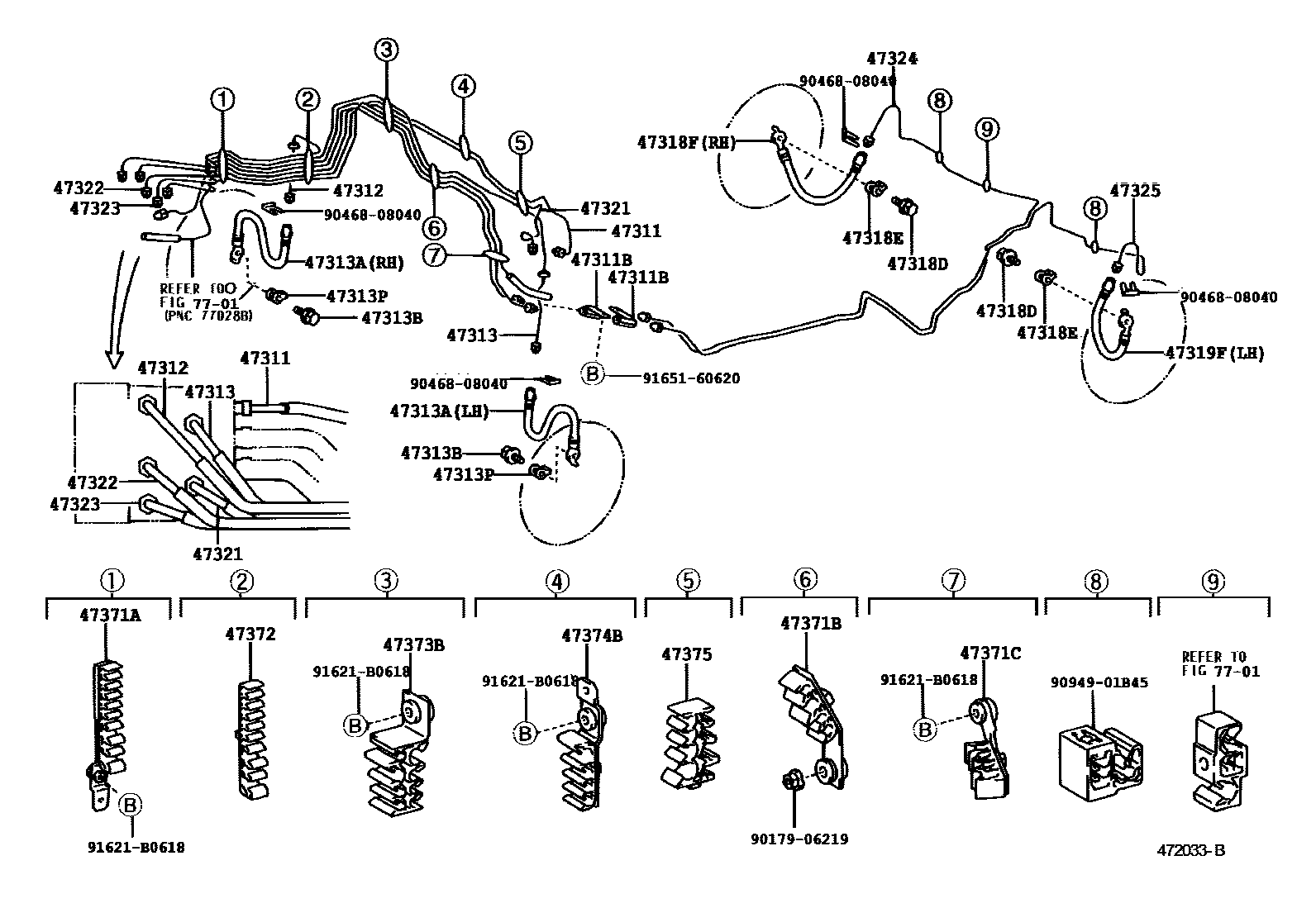

Parts diagram

47311TUBE, FRONT BRAKE, NO.1

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

47312TUBE, FRONT BRAKE, NO.2

47313TUBE, FRONT BRAKE, NO.3

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318EGASKET(FOR REAR FLEXIBLE HOSE)

47318FHOSE, FLEXIBLE(FOR REAR RH)

47319FHOSE, FLEXIBLE(FOR REAR LH)

47321TUBE, REAR BRAKE, NO.1

47322TUBE, REAR BRAKE, NO.2

47323TUBE, REAR BRAKE, NO.3

47324TUBE, REAR BRAKE, NO.4

47325TUBE, REAR BRAKE, NO.5

47371ACLAMP, BRAKE TUBE, NO.1

47371BCLAMP, BRAKE TUBE, NO.6

47371CCLAMP, BRAKE TUBE, NO.7

47372CLAMP, BRAKE TUBE, NO.2

47373BCLAMP, BRAKE TUBE, NO.3

47374BCLAMP, BRAKE TUBE, NO.4

47375CLAMP, BRAKE TUBE, NO.5

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9017906219

9046808040

9094901B45

91621B0618

9165160620

29 parts on this diagram · 4 diagrams in section

BRAKE TUBE & CLAMP for Toyota LEXUS IS300
