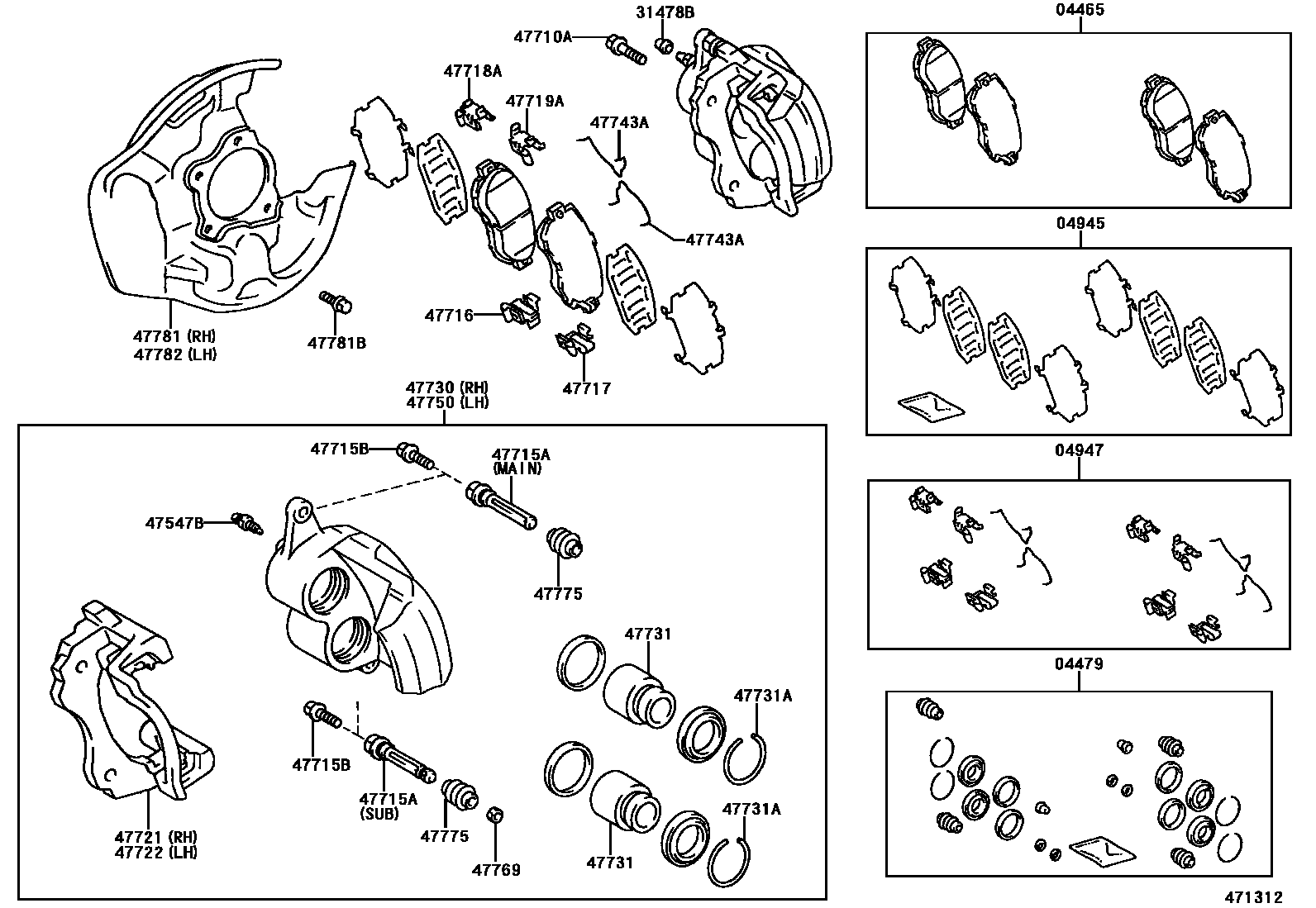

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-22311iJCE10200005-200212

MARK NBK PN529H

sub04465-22312

main04465-22312iJCE10200212-200507

MARK NBK PN529AH

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-30190iJCE10200005-200101

sub04479-30191

main04479-30191iJCE10200101-200507

sub04478-30240

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-30140iJCE10200005-200107

04947FITTING KIT, DISC BRAKE, FRONT

main04947-30090iJCE10200005-200107

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iJCE10200005-200107

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iJCE10200005-200507

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12228iJCE10200005-200107

*12-1.25PX32-24

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iJCE10200005-200107

SUB

main47715-30060iJCE10200005-200107

MAIN

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iJCE10200005-200507

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-24010iJCE10200005-200107

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-24020iJCE10200005-200107

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-30070iJCE10200005-200107

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-30080iJCE10200005-200107

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22200iJCE10200005-200107

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22160iJCE10200005-200107

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-53010iJCE10200005-200107

47731PISTON, FRONT DISC BRAKE

main47731-30170iJCE10200005-200507

sub47731-30140

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-52006iJCE10200005-200107

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-30020iJCE10200005-200107

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-53010iJCE10200005-200107

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iJCE10200005-200107

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iJCE10200005-200107

sub47775-50010

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22152iJCE10200005-200107

main47781-22152iJCE10200107-200507

TYPE B

47781BBOLT(FOR DUST COVER SETTING)

main90148-60028iJCE10200005-200107

*6-1.0PX14-10.5

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22152iJCE10200005-200107

main47782-22152iJCE10200107-200507

TYPE B

25 parts on this diagram · 1 diagram in section
