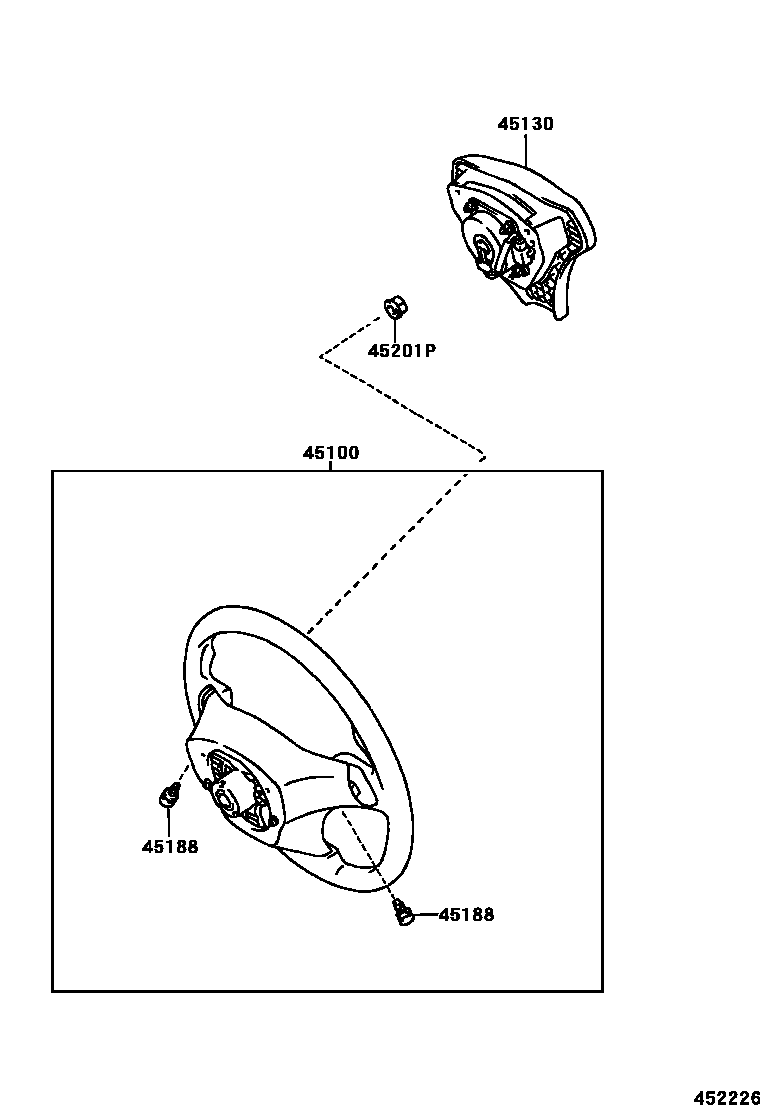

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-53090-C0iJCE10200005-200107

3-SPOKE,LEATHER,BLACK,TRIM0#,2#

main45100-53100-C0iJCE10..MTM200107-200308

3-SPOKE,LEATHER,BLACK,TRIM0#,2#

main45100-53150-C0iJCE10..MTM200308-200408

3-SPOKE,LEATHER,BLACK,TRIM0#,2#

main45100-53151-C0iJCE10..MTM200409

3-SPOLE,LEATHER,BLACK,TRIM0#,2#

main45100-53160-C0iJCE10..ATM200308-200408

3-SPOKE,LEATHER,BLACK,TRIM0#,2#

main45100-53161-C0iJCE10..ATM200409

3-SPOKE,LEATHER,BLACK,TRIM0#,2#

45130BUTTON ASSY, HORN

main45130-53030-C0iJCE10200005-200107

BLACK,TRIM0#,2#

main45130-53070-C0iJCE10200308

BLACK,TRIM0#,2#

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60007×2iJCE10200005-200107

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071iJCE10200005-200107

4 parts on this diagram · 1 diagram in section
