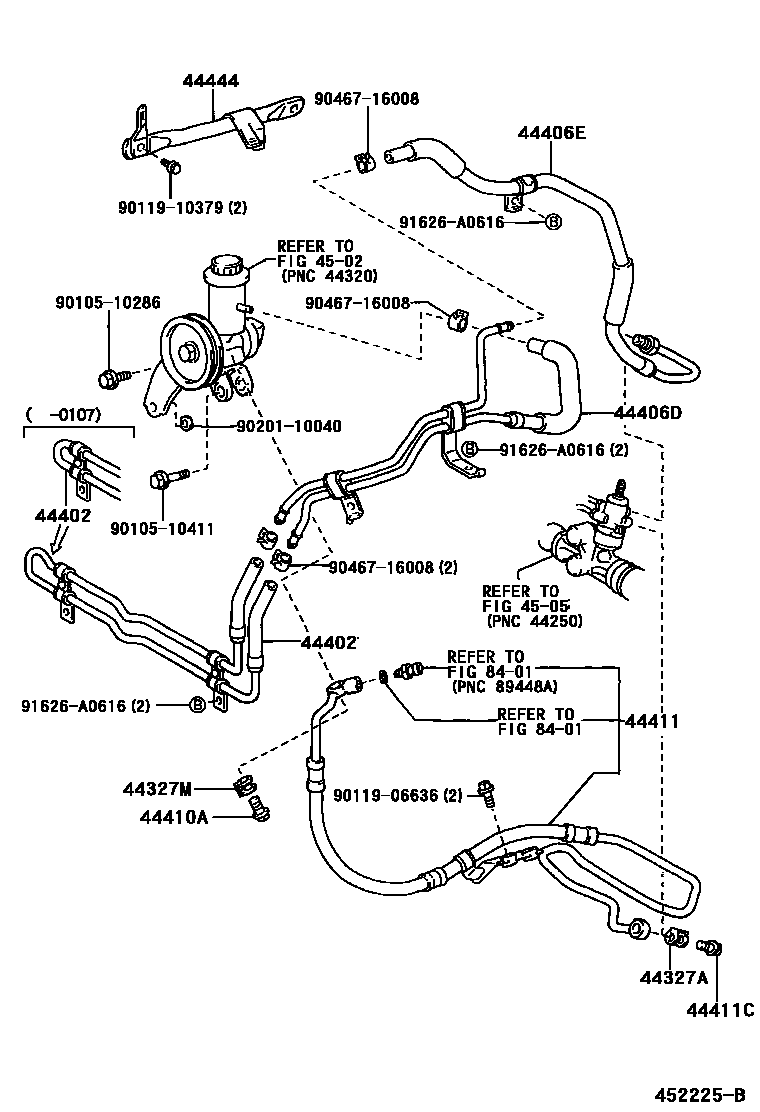

POWER STEERING TUBE

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iJCE10200005-200107

44327MGASKET, PRESSURE PORT, NO.2

main44327-30040iJCE10200005-200107

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-53030iJCE10200005-200107

main44402-53031iJCE10200107

44406DTUBE SUB-ASSY, RETURN, NO.1

main44406-53080iJCE10200005-200107

44406ETUBE SUB-ASSY, RETURN, NO.2

main44406-53070iJCE10200005-200107

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16034iJCE10200005-200107

44411HOSE, PRESSURE FEED

main44411-53030iJCE10200005-200107

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main96341-41603iJCE10200005-200107

44444STAY, PUMP, REAR

main44444-51010iJCE10200005-200107

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010510286

main90105-10286

9010510411

main90105-10411

9011906636

main90119-06636

9011910379

main90119-10379

9020110040

main90201-10040

9046716008

main90467-16008

91626A0616

main91626-A0616

19 parts on this diagram · 1 diagram in section
