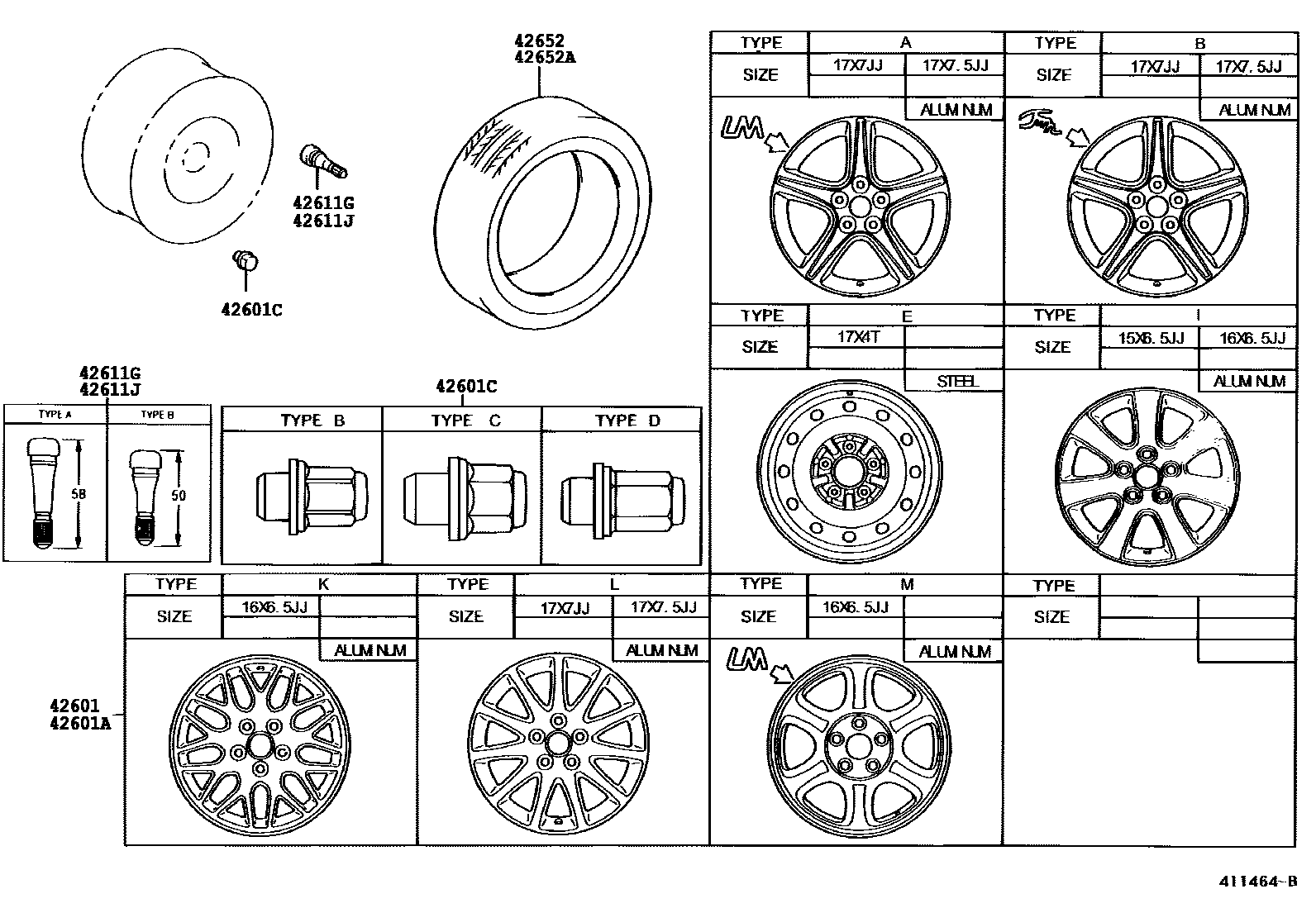

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
16X6.5JJ,OFFSET 50,TYPE M:REFER TO ILLUSTRATION
16X6.5JJ,OFFSET 50,TYPE I:REFER ILLUST.
17X7JJ,OFFSET 50,TYPE A:REFER TO ILLUSTRATION
17X7JJ,OFFSET50(AL),TYPE B:REFER ILLUST.
17X7JJ,OFFSET 50,SUPER CHROME METALLIC PAINTED, TYPE A:REFER TO ILLUSTRATION
17X7.5JJ,OFFSET 55,TYPE B:REFER ILLUST.
17X7.5JJ,OFFSET 55,SUPER CHROME METALLIC PAINTED, TYPE A:REFER TO ILLUSTRATION
17X7.5JJ,OFFSET 55,TYPE A:REFER ILLUST.
17X7JJ,OFFSET 50,METALLIC;SUPER CHROME METALLIC PAINTED, TYPE B:REFER TO ILLUSTRATION
17X7.5JJ,OFFSET 55,TYPE B:REFER TO ILLUSTRATION;CROME PLATED PACKAGE
16X6.5JJ,OFFSET 50,TYPE K:REFER ILLUST.
17X7JJ,OFFSET 50,TYPE L:REFER ILLUST.
17X7.5JJ,OFFSET 55,TYPE L:REFER ILLUST.
17X7JJ,OFFSET 50,SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO)
42601AWHEEL, DISC (FOR SPARE)
16X6.5JJ,OFFSET 50,TYPE M:REFER TO ILLUSTRATION
16X6.5JJ,OFFSET 50,TYPE I:REFER ILLUST.
17X4T,TYPE E:REFER ILLUST.
17X7JJ,OFFSET 50,TYPE A:REFER ILLUST.
17X7JJ,OFFSET50(AL),TYPE B:REFER TO ILLUSTRATION
17X7JJ,OFFSET 50,SUPER CHROME METALLIC PAINTED, TYPE A:REFER TO ILLUSTRATION
17X7JJ,OFFSET 50,SUPER CHROME METALLIC PAINTED, TYPE B:REFER TO ILLUSTRATION
16X6.5JJ,OFFSET 50,TYPE K:REFER TO ILLUSTRATION
17X7JJ,OFFSET 50,TYPE L:REFER TO ILLUSTRATION
42601CNUT, HUB (FOR AXLE)
TYPE C:REFER ILLUST.
TYPE D:REFER ILLUST.
TYPE B:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
TYPE B:REFER ILLUST.
42611JVALVE (FOR TUBELESS TIRE SPARE)
TYPE B:REFER ILLUST.
42652TIRE
215/45R17,*B/S,*D/L,*Y/H; 215/45R17,FRONT
205/55R16
225/45R17,REAR
215/45R17; 215/45R17,*B/S
215/45ZR17 *B/S
205/55R16,*Y/H
42652ATIRE (FOR SPARE)
T125/70D17,*B/S
215/45R17
205/55R16
215/45R17,*B/S
215/45ZR17 *B/S
205/55R16,*Y/H
7 parts on this diagram · 3 diagrams in section
