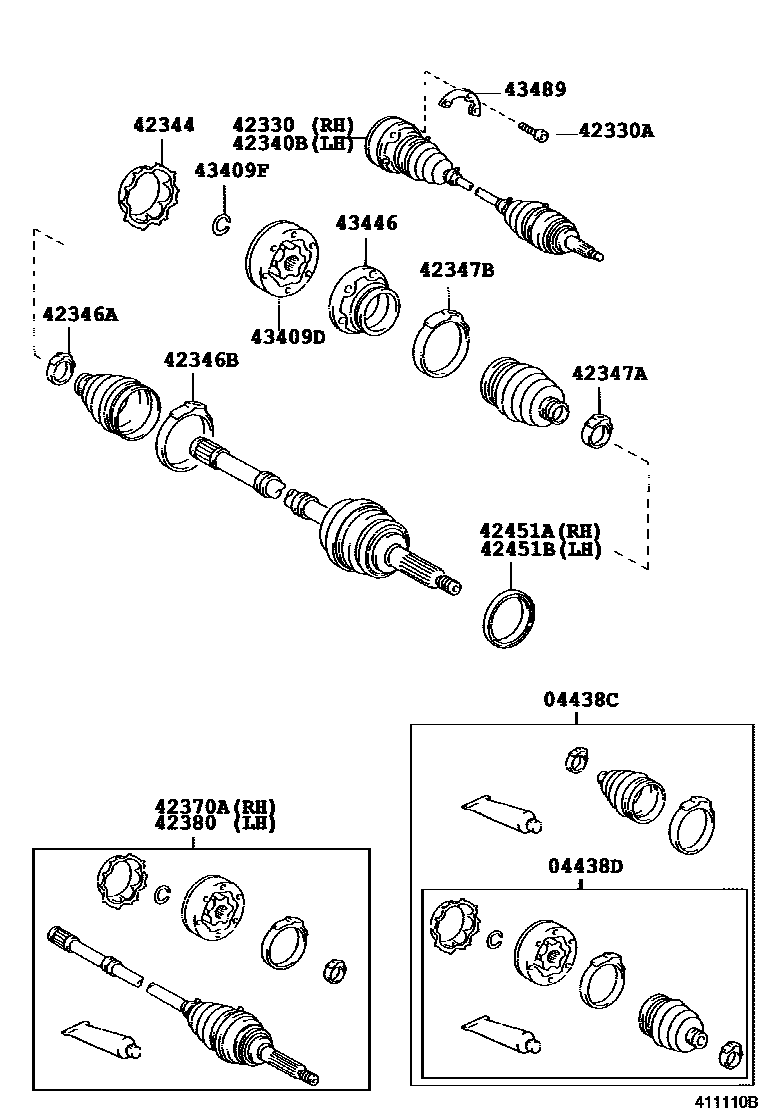

REAR AXLE SHAFT & HUB

0001 1 0002 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04437-30060×2iJCE10200005-200107

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04437-30050×2iJCE10200005-200107

42330SHAFT ASSY, REAR DRIVE, RH

main42330-30120iJCE10200005-200107

42330ABOLT(FOR REAR DRIVE SHAFT)

main90110-10016×12iJCE10200005-200107

*10-1.25PX53.4-34.7

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-30120iJCE10200005-200107

42344COVER, REAR AXLE INBOARD JOINT END

main42344-30030×2iJCE10200005-200107

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-30080×2iJCE10200005-200107

ID=36.1

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-30070×2iJCE10200005-200107

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-30080×2iJCE10200005-200107

ID=36.1

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-30070×2iJCE10200005-200107

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-39135iJCE10200005-200107

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main42380-39055iJCE10200005-200107

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42453-50010iJCE10200005-200107

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42453-50010iJCE10200005-200107

43409DJOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE

main43409-30030×2iJCE10200005-200107

43409FRING, SNAP (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)

main90520-26028×2iJCE10200005-200107

43446COVER, REAR AXLE INBOARD JOINT

main43446-30010×2iJCE10200005-200107

43489WASHER, REAR DRIVE SHAFT CROSS GROOVE JOINT

main43489-30020×6iJCE10200005-200107

18 parts on this diagram · 2 diagrams in section
