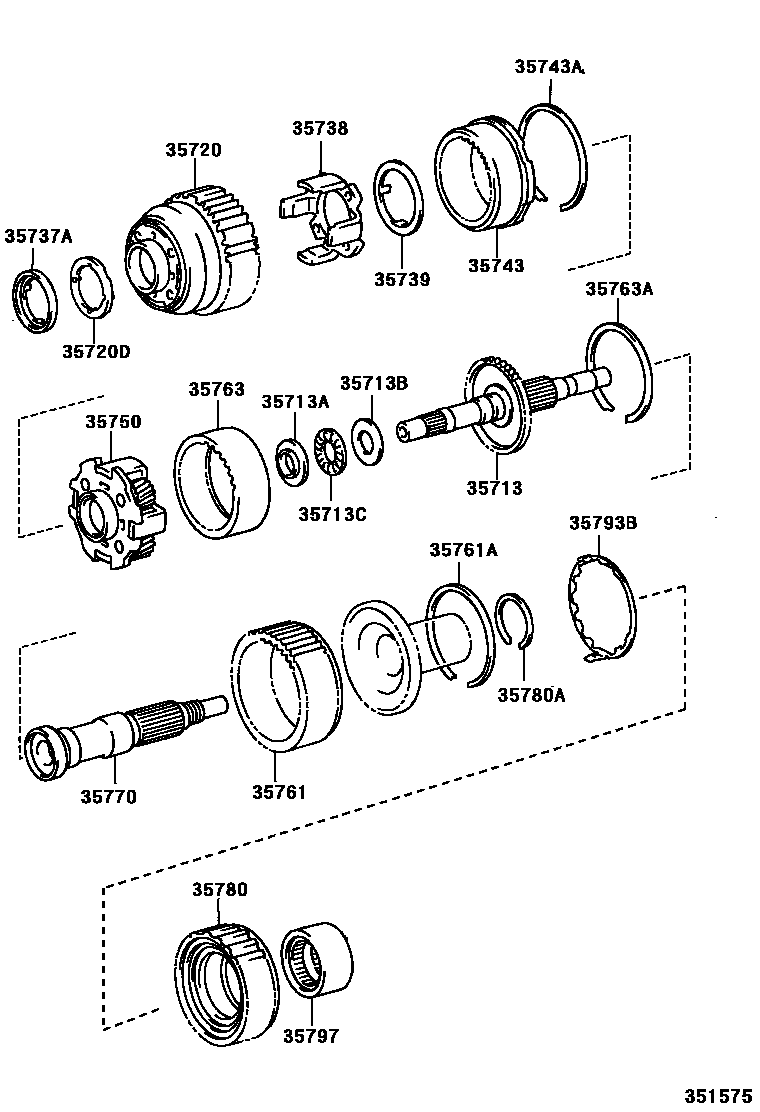

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35713SHAFT, INTERMEDIATE

main35713-30060iJCE10200005-200107

35713ARACE, THRUST BEARING, NO.1 (FOR INTERMEDIATE SHAFT)

main35789-30290iJCE10200005-200107

35713BRACE, THRUST BEARING, NO.2 (FOR INTERMEDIATE SHAFT)

main35789-30300iJCE10200005-200107

35713CBEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)

main90374-25008iJCE10200005-200107

35720GEAR ASSY, FRONT PLANETARY

main35720-30120iJCE10200005-200107

35720DWASHER (FOR FRONT PLANETARY GEAR)

main90209-57001iJCE10200005-200107

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-30040iJCE10200005-200107

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-30050iJCE10200005-200107

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-30050iJCE10200005-200107

35743GEAR, FRONT PLANETARY RING

main35743-30040iJCE10200005-200107

35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)

main90520-99022iJCE10200005-200107

35750GEAR ASSY, CENTER PLANETARY

main35750-30020iJCE10200005-200107

35761GEAR, REAR PLANETARY RING

main35761-30030iJCE10200005-200107

35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)

main90520-99021iJCE10200005-200107

35763GEAR, CENTER PLANETARY RING

main35763-30010iJCE10200005-200107

35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)

main90520-96004iJCE10200005-200107

35770SHAFT ASSY, OUTPUT

main35770-30050iJCE10200005-200107

35780CLUTCH ASSY, 1 WAY NO.2

main35780-30010iJCE10200005-200007

main35780-50010iJCE10200007-200011

35780ARING, SNAP (FOR 1 WAY CLUTCH)

main90520-45011×2iJCE10200005-200107

35793BRETAINER, 1 WAY CLUTCH

main35793-50030iJCE10200005-200107

35797RACE, 1 WAY CLUTCH INNER

main35797-30040iJCE10200005-200107

21 parts on this diagram · 1 diagram in section
