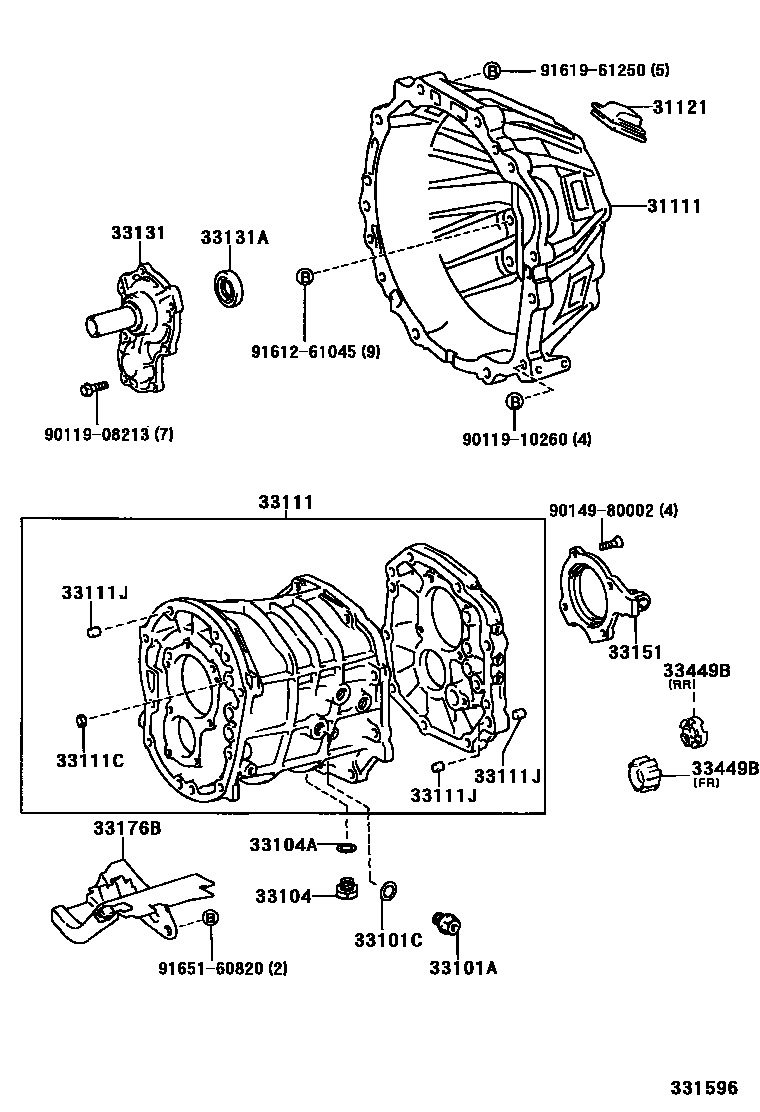

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31111HOUSING, CLUTCH
31121COVER, CLUTCH HOUSING, NO.1
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111CASE, MANUAL TRANSMISSION
33111CPLUG(FOR TRANSMISSION CASE)
OD=18
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=16,OD=12
33131RETAINER, BEARING, FRONT(MTM)
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33176BSEPARATOR, TRANSMISSION OIL(MTM)
33449BMAGNET, TRANSMISSION
REAR
FRONT
9011908213
main90119-08213
9011910260
main90119-10260
9014980002
main90149-80002
9161261045
main91612-61045
9161961250
main91619-61250
9165160820
main91651-60820
20 parts on this diagram · 1 diagram in section
