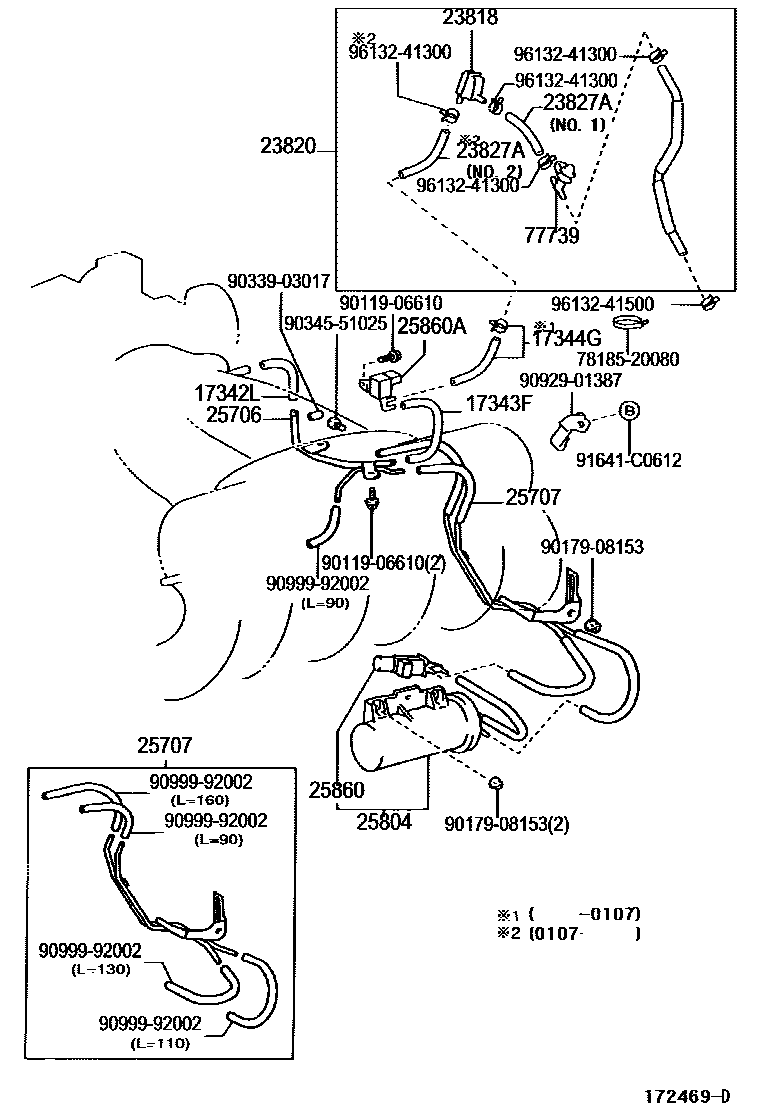

VACUUM PIPING

17342LHOSE, AIR, NO.2

main17342-46170i2JZGE..JCE10200107

17343FHOSE, AIR, NO.3

main17343-46100i2JZGE..JCE10200005-200107

17344GHOSE, AIR, NO.4

main17344-46070i2JZGE..JCE10200005-200107

23818PIPE, FUEL VAPOR FEED

main23818-46110i2JZGE..JCE10200107

23820HOSE ASSY, FUEL VAPOR FEED

main23820-46170i2JZGE..JCE10200005-200107

main23820-46250i2JZGE..JCE10200107-200401

main23820-46251i2JZGE..JCE10200401

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-46170i2JZGE..JCE10200107

NO.2

main95328-07008i2JZGE..JCE10200005-200107

NO.1

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-46090i2JZGE..JCE10200005-200107

25707PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2

main25707-46090i2JZGE..JCE10200107

25804VALVE SET, VACUUM CONTROL

main25804-46060i2JZGE..JCE10200005-200107

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-46010i2JZGE..JCE10200107

MARK 25860-46010

main90910-12124i2JZGE..JCE10200005-200107

MARK 90910-12124

25860AVALVE, VACUUM SWITCHING, NO.1

main90910-12243i2JZGE..JCE10200005-200107

77739VALVE, EVAP SERVICE PORT

main77739-33010iJCE10200005-200107

7818520080SHAFT, ACCELERATOR PEDAL SUPPORT

main78185-20080

9011906610

main90119-06610

9017908153

main90179-08153

9033903017

main90339-03017

9034551025

main90345-51025

9092901387

main90929-01387

9099992002

main90999-92002

91641C0612

main91641-C0612

9613241300

main96132-41300

9613241500

main96132-41500

22 parts on this diagram · 1 diagram in section
