WATER PUMP

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

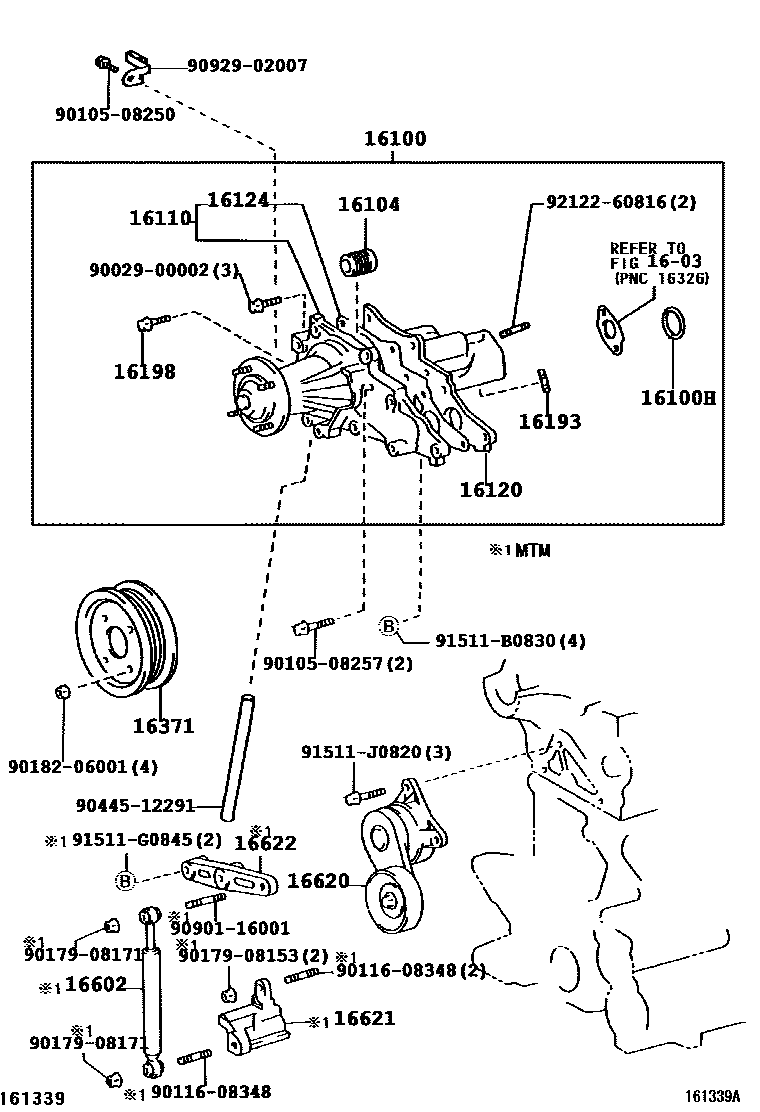

16100PUMP ASSY, ENGINE WATER

main16100-49875i2JZGE..JCE10200005-200104

main16100-49876i2JZGE..JCE10200104-200107

16100HRING, O(FOR WATER PUMP)

main96761-24040i2JZGE..JCE10200005-200107

16104SEAL SET, WATER PUMP

main16104-46060i2JZGE..JCE10200005-200107

16110PUMP ASSY, WATER, W/O COUPLING

main16110-49155i2JZGE..JCE10200005-200104

main16110-49156i2JZGE..JCE10200104-200107

16120COVER ASSY, WATER PUMP

main16102-46072i2JZGE..JCE10200006-200107

main16102-46073i2JZGE..JCE10200108

main16120-46080i2JZGE..JCE10200005-200006

16124GASKET, WATER PUMP COVER

main16124-46070i2JZGE..JCE10200005-200107

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-46030×2i2JZGE..JCE10200005-200107

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-46031i2JZGE..JCE10200005-200107

16371PULLEY, FAN

main16371-46040i2JZGE..JCE10200005-200107

16602ABSORBER SUB-ASSY, BELT TENSIONER

main16602-46010i2JZGE..JCE10..MTM200107

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W024i2JZGE..JCE10200005-200006

main16620-0W025i2JZGE..JCE10200006-200107

main16620-46070i2JZGE..JCE10..MTM200107

16621BRACKET, V-RIBBED BELT TENSIONER

main16621-46010i2JZGE..JCE10..MTM200107

16622ARM, V-RIBBED BELT TENSIONER

main16622-46010i2JZGE..JCE10..MTM200107

9002900002

main90029-00002

9010508250

main90105-08250

9010508257

main90105-08257

9011608348

main90116-08348

9017908153

main90179-08153

9017908171

main90179-08171

9018206001

main90182-06001

9044512291

main90445-12291

9090116001

main90901-16001

9092902007

main90929-02007

91511B0830

main91511-B0830

91511G0845

main91511-G0845

91511J0820

main91511-J0820

9212260816

main92122-60816

28 parts on this diagram · 1 diagram in section
