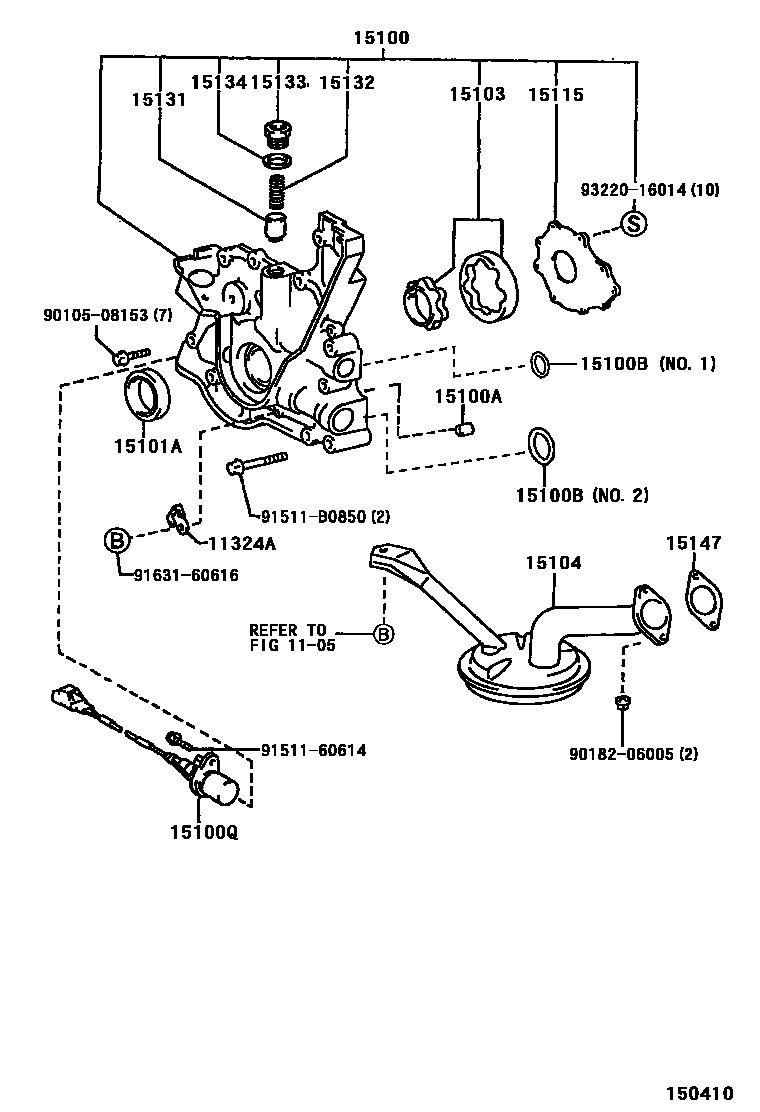

ENGINE OIL PUMP

0001 1 0002 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

11324APLATE, TIMING BELT

main11324-46030i2JZGE..JCE10200005-200107

15100PUMP ASSY, OIL

main15100-46090i2JZGE..JCE10200005-200105

main15100-46091i2JZGE..JCE10200105-200107

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021×2i2JZGE..JCE10200107

15100BRING, O(FOR OIL PUMP)

main96721-24022i2JZGE..JCE10200005-200107

NO.1

main96721-24031i2JZGE..JCE10200005-200107

NO.2

15100QSENSOR, CRANK POSITION

main90919-05023i2JZGE..JCE10200005-200107

15101ASEAL(FOR CRANKSHAFT)

main90311-46001i2JZGE..JCE10200107

15103GEAR SET, OIL PUMP

main15103-46090i2JZGE..JCE10200005-200107

15104STRAINER SUB-ASSY, OIL

main15104-46070i2JZGE..JCE10200005-200107

15115COVER, OIL PUMP

main15115-46090i2JZGE..JCE10200005-200107

15131VALVE, OIL PUMP RELIEF

main15131-46060i2JZGE..JCE10200005-200107

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46060i2JZGE..JCE10200005-200107

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i2JZGE..JCE10200005-200107

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67020i2JZGE..JCE10200005-200107

15147GASKET, OIL STRAINER

main15147-46010i2JZGE..JCE10200005-200107

9010508153

main90105-08153

9018206005

main90182-06005

9151160614

main91511-60614

91511B0850

main91511-B0850

9163160616

main91631-60616

9322016014

main93220-16014

21 parts on this diagram · 2 diagrams in section
