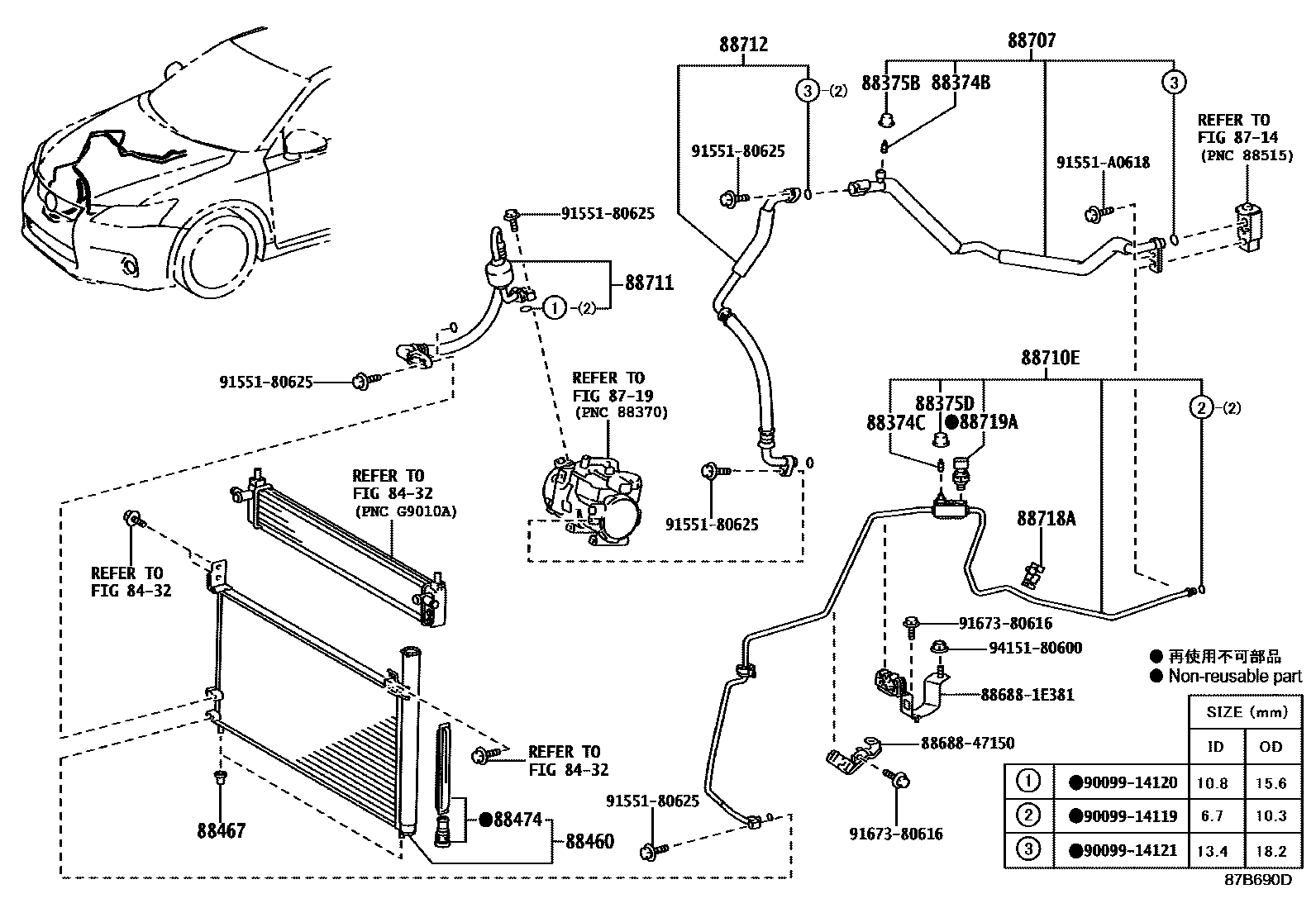

HEATING & AIR CONDITIONING - COOLER PIPING

8432INVERTER COOLING

→ Go to FIG 84-32

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iZWA10201012-201312

88374CVALVE, SERVICE, NO.2

main88374-30010iZWA10201012-201312

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iZWA10201012-201312

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iZWA10201312-201704

88460CONDENSER ASSY, COOLER

main88460-47150iZWA10201012-201108

main88460-76010iZWA10201108-201312

main88460-76020iZWA10201708-202108

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010×2iZWA10201312-202108

88474DRYER, COOLER

main88474-47030iZWA10201012-201312

88707PIPE SUB-ASSY, SUCTION

main88707-47041iZWA10201012-201312

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-76010iZWA10201012-201312

main88710-76020supersedes 88710-76010iZWA10201708-202108

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-47040iZWA10201012-201312

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-76010iZWA10201012-201312

main88712-76020iZWA10201410-202108

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-1E040iZWA10201012-201312

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZWA10201012-201312

886881E381BRACKET, COOLER DIAPHRAGM

main88688-1E381

8868847150BRACKET, COOLER DIAPHRAGM

main88688-47150

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9155180625

main91551-80625

91551A0618

main91551-A0618

9167380616

main91673-80616

9415180600

main94151-80600

25 parts on this diagram · 1 diagram in section
