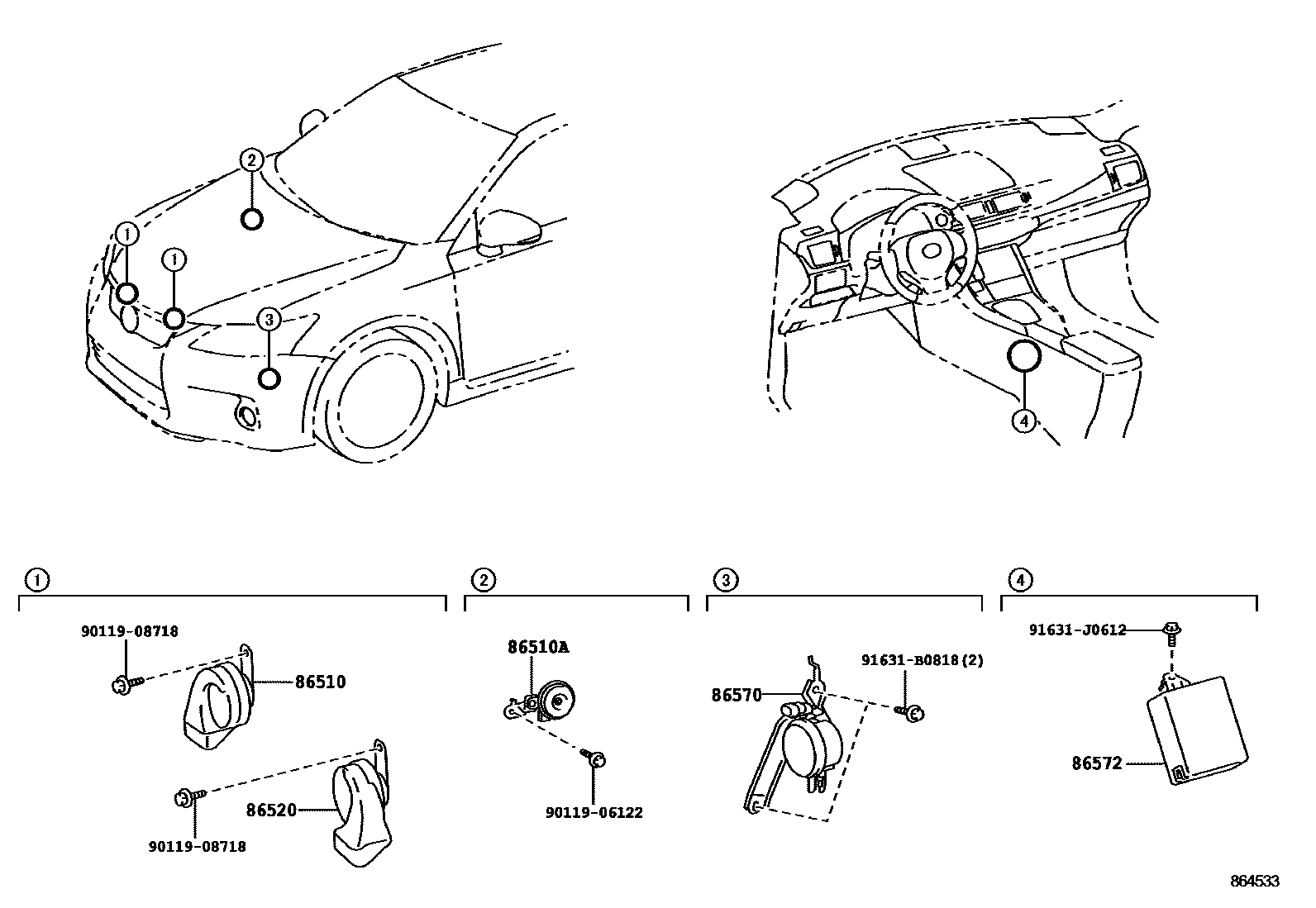

HORN

0001 1 0002 1 0003 1

86510HORN ASSY, HIGH PITCHED

main86510-48210supersedes 86510-75010iZWA10201708-202108

main86510-75010iZWA10201012-201312

main86510-48120iZWA10..B201012-201201

KOREA SPEC

main86510-48170iZWA10..B201202-201312

KOREA SPEC

86510AHORN ASSY, SECURITY

main86560-12031iZWA10..B201012-201312

86520HORN ASSY, LOW PITCHED

main86520-30690supersedes 86520-75010iZWA10201708-202108

main86520-75010iZWA10201012-201312

main86520-48080iZWA10..B201012-201201

KOREA SPEC

main86520-48130iZWA10..B201202-201312

KOREA SPEC

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-76010iZWA10201108-201312

main86570-76020supersedes 86570-76050iZWA10202005-202108

KOREA SPEC

main86570-76030iZWA10201312-201410

KOREA SPEC

main86570-76040iZWA10201410-201411

KOREA SPEC

main86570-76041supersedes 86570-76050iZWA10201503-201704

KOREA SPEC

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-76020iZWA10201108-201312

main86572-76030iZWA10201312-201410

KOREA SPEC

main86572-76040iZWA10201410-201704

KOREA SPEC

main86572-76140iZWA10202005-202108

KOREA SPEC

9011906122

main90119-06122

9011908718

main90119-08718

91631B0818

main91631-B0818

91631J0612

main91631-J0612

9 parts on this diagram · 3 diagrams in section
