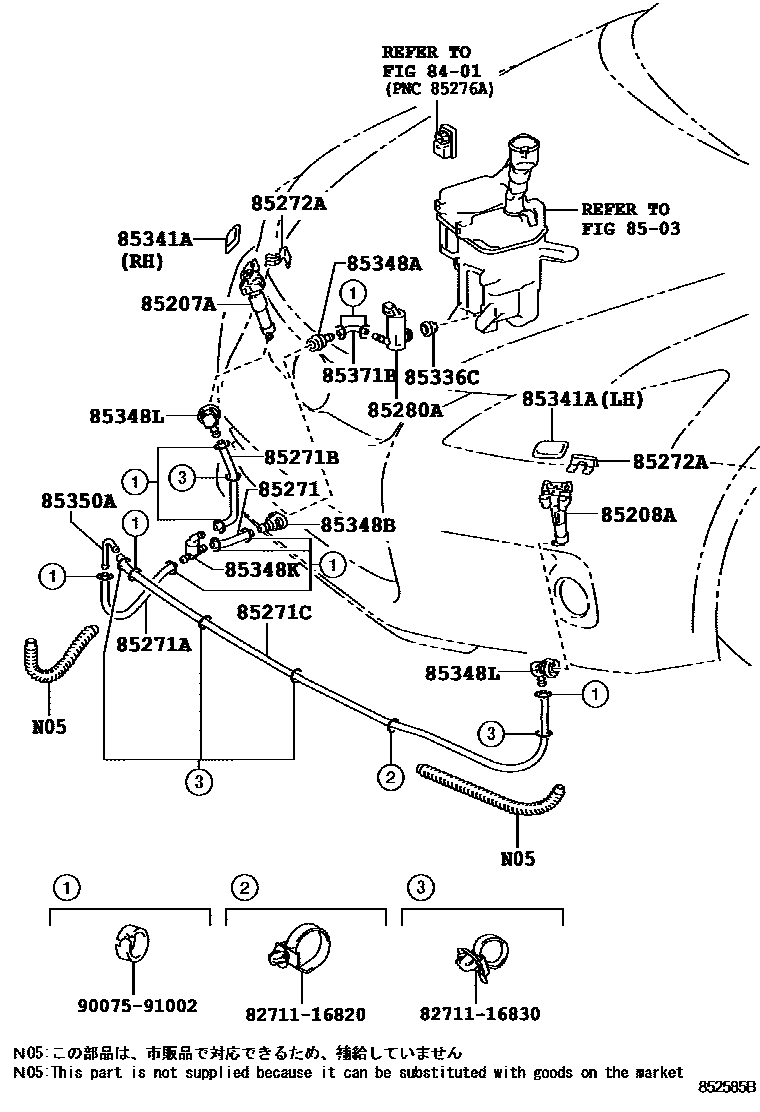

HEADLAMP CLEANER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-76010i201012-201312

HEAD LAMP-LED

main85207-76020i201312-201708

HEADLAMP-LED&HEADLAMP CLEANER-WITH

main85207-76030i201708-202108

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH; HEADLAMP-LED&HEADLAMP CLEANER-WITH

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-76010i201012-201312

HEAD LAMP-LED

main85208-76020i201312-201708

HEADLAMP-LED&HEADLAMP CLEANER-WITH

main85208-76030i201708-202108

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH; HEADLAMP-LED&HEADLAMP CLEANER-WITH

85271HOSE, HEADLAMP CLEANER, NO.1

main90075-15053i201012-201312

L=35,HEAD LAMP-LED

85271AHOSE, HEADLAMP CLEANER, NO.2

main90075-15069i201012-201312

L=280,HEAD LAMP-LED

main90075-15095i201312-202108

L=280,HEADLAMP-LED&HEADLAMP CLEANER-WITH

85271BHOSE, HEADLAMP CLEANER, NO.3

main90075-15058i201012-201312

L=140,HEAD LAMP-LED

main90075-15062i201312-202108

L=240,HEADLAMP-LED&HEADLAMP CLEANER-WITH

85271CHOSE, HEADLAMP CLEANER, NO.4

main90075-15087i201012-201312

L=1250,HEAD LAMP-LED

main90075-15090i201312-202108

L=850,HEADLAMP-LED&HEADLAMP CLEANER-WITH

85272ACLAMP, HEADLAMP CLEANER, NO.1

main85272-28030×2i201012-201312

HEAD LAMP-LED

main85272-75050×2i201312-202108

HEADLAMP-LED&HEADLAMP CLEANER-WITH

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-47010i201012-201312

HEAD LAMP-LED; REAR WINDOW WIPER-WITH&HEAD LAMP-LED

85336CPACKING, HEADLAMP CLEANER MOTOR

main90099-32089i201012-201312

HEAD LAMP-LED; REAR WINDOW WIPER-WITH&HEAD LAMP-LED

85341ACOVER,HEADLAMP CLEANER WASHER NOZZLE

main85353-76010-A0i201012-201312

HEAD LAMP-LED,WHITE PEARL CS.,077,RH

main85353-76010-A1i201208-201312

HEAD LAMP-LED,WHITE NOVA GF.,083,RH

main85353-76010-B0i201012-201208

HEAD LAMP-LED,SILVER M.M.,1G1,RH

main85353-76010-B1i201108-201312

HEAD LAMP-LED,MERCURY GRAY MC.,1H9,RH

main85353-76010-B2i201012-201111

HEAD LAMP-LED,DK.GRAY MC.,1G0,RH

main85353-76010-B3i201208-201312

HEAD LAMP-LED,PLATINUM SILVER ME.,1J4,RH

main85353-76010-C0i201012-201312

HEAD LAMP-LED,BLACK,212,RH

main85353-76010-C1i201012-201312

HEAD LAMP-LED,BLACK OPAL MC.,214,RH

main85353-76010-D0i201012-201312

HEAD LAMP-LED,RED MC.CS.,3R1,RH

main85353-76010-E0i201012-201312

HEAD LAMP-LED,FIRE AGATE M.M.,4V3,RH

main85353-76010-F0i201012-201312

HEAD LAMP-LED,FLARE YELLOW M.M.,5B1,RH

main85353-76010-J0i201012-201312

HEAD LAMP-LED,BLUE ME.,8U1,RH

main85353-76010-J1i201012-201208

HEAD LAMP-LED,SILVERY BLUE ME.,8U9,RH

main85353-76020-A0i201312-201508

HEADLAMP-LED&HEADLAMP CLEANER-WITH,WHITE PEARL CS.,077 ,2LH,RH

main85353-76020-A1i201708-202108

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH,WHITE NOVA GF.,083,2LJ,RH

main85353-76020-A2i201708-202108

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH,SONIC QUARTZ,085 ,2MP ,2QB ,2QC,RH

main85353-76020-B0i201312-202108

HEADLAMP-LED&HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9 ,2LL,RH

main85353-76020-B1i201312-201606

HEADLAMP-LED&HEADLAMP CLEANER-WITH,PLATINUM SILVER ME.,1J4 ,2LK ,2LL,RH

main85353-76020-B2i201408-202108

HEADLAMP-LED&HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7 ,2MN,RH

main85353-76020-C0i201312-202108

HEADLAMP-LED&HEADLAMP CLEANER-WITH,BLACK,212 ,2PZ,RH

main85353-76020-C1i201312-201508

HEADLAMP-LED&HEADLAMP CLEANER-WITH,BLACK OPAL MC.,214,RH

main85353-76020-C3i201508-202108

HEADLAMP-LED&HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223 ,2PZ,RH

main85353-76020-D1i201312-202108

HEADLAMP-LED&HEADLAMP CLEANER-WITH,RED MC.CS.,2LM ,2QA ,3R1,RH

main85353-76020-D2i201708-202108

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH,SOLID RED,2LN ,3T2,RH

main85353-76020-E0i201312-201606

HEADLAMP-LED&HEADLAMP CLEANER-WITH,FIRE AGATE M.M.,4V3,RH

main85353-76020-E1i201708-202008

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH,AMBER CS.,2PW ,4X2,RH

main85353-76020-E2i201708-202008

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH,LAVA ORANGE CS.,2QE,4W7,RH; HEADLAMP-LED&HEADLAMP CLEANER-WITH,LAVA ORANGE CS.,2QE ,4W7,RH

main85353-76020-E3i202008-202108

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH,BLAZING CARNELIAN CONTRAS,4Y1,RH; HEADLAMP-LED&HEADLAMP CLEANER-WITH,BLAZING CARNELIAN CONTRAS,4Y1,RH

main85353-76020-F0i201312-201508

HEADLAMP-LED&HEADLAMP CLEANER-WITH,FLARE YELLOW M.M.,2LP ,5B1,RH

main85353-76020-G0i202008-202108

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH,TERRANE KHAKI M.M.,6X4,RH; HEADLAMP-LED&HEADLAMP CLEANER-WITH,TERRANE KHAKI M.M.,6X4,RH

main85353-76020-J0i201312-201606

HEADLAMP-LED&HEADLAMP CLEANER-WITH,BLUE ME.,2LQ ,8U1,RH

main85353-76020-J1i201708-202108

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH,DEEP BLUE MC.,2PK ,8X5,RH

main85353-76020-J2i201606-202008

HEADLAMP-LED&HEADLAMP CLEANER-WITH,SPARKLING METEOR ME.,2PX ,8X9,RH

main85353-76020-J3i201708-202108

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH,HEAT BLUE CONTRASTLAYERI,2QF ,8X1,RH; HEADLAMP-LED&HEADLAMP CLEANER-WITH,HEAT BLUE CONTRAST LAYERI,2QF ,8X1,RH

main85353-76020-J4i202008-202108

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH,CELESTIAL BLUE GF.,8Y6,RH; HEADLAMP-LED&HEADLAMP CLEANER-WITH,CELESTIAL BLUE GF.,8Y6,RH

main85354-76010-A0i201012-201312

HEAD LAMP-LED,WHITE PEARL CS.,077,LH

main85354-76010-A1i201208-201312

HEAD LAMP-LED,WHITE NOVA GF.,083,LH

main85354-76010-B0i201012-201208

HEAD LAMP-LED,SILVER M.M.,1G1,LH

main85354-76010-B1i201108-201312

HEAD LAMP-LED,MERCURY GRAY MC.,1H9,LH

main85354-76010-B2i201012-201111

HEAD LAMP-LED,DK.GRAY MC.,1G0,LH

main85354-76010-B3i201208-201312

HEAD LAMP-LED,PLATINUM SILVER ME.,1J4,LH

main85354-76010-C0i201012-201312

HEAD LAMP-LED,BLACK,212,LH

main85354-76010-C1i201012-201312

HEAD LAMP-LED,BLACK OPAL MC.,214,LH

main85354-76010-D0i201012-201312

HEAD LAMP-LED,RED MC.CS.,3R1,LH

main85354-76010-E0i201012-201312

HEAD LAMP-LED,FIRE AGATE M.M.,4V3,LH

main85354-76010-F0i201012-201312

HEAD LAMP-LED,FLARE YELLOW M.M.,5B1,LH

main85354-76010-J0i201012-201312

HEAD LAMP-LED,BLUE ME.,8U1,LH

main85354-76010-J1i201012-201208

HEAD LAMP-LED,SILVERY BLUE ME.,8U9,LH

main85354-76020-A0i201312-201508

HEADLAMP-LED&HEADLAMP CLEANER-WITH,WHITE PEARL CS.,077 ,2LH,LH

main85354-76020-A1i201708-202108

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH,WHITE NOVA GF.,083,2LJ,LH

main85354-76020-A2i201408-202108

HEADLAMP-LED&HEADLAMP CLEANER-WITH,SONIC QUARTZ,085 ,2MP ,2QB ,2QC,LH

main85354-76020-B0i201708-202108

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9 ,2LL,LH

main85354-76020-B1i201312-201606

HEADLAMP-LED&HEADLAMP CLEANER-WITH,PLATINUM SILVER ME.,1J4 ,2LK ,2LL,LH

main85354-76020-B2i201408-202108

HEADLAMP-LED&HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7 ,2MN,LH

main85354-76020-C0i201312-202108

HEADLAMP-LED&HEADLAMP CLEANER-WITH,BLACK,212 ,2PZ,LH

main85354-76020-C1i201312-201508

HEADLAMP-LED&HEADLAMP CLEANER-WITH,BLACK OPAL MC.,214,LH

main85354-76020-C3i201508-202108

HEADLAMP-LED&HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223 ,2PZ,LH

main85354-76020-D1i201312-202108

HEADLAMP-LED&HEADLAMP CLEANER-WITH,RED MC.CS.,2LM ,2QA ,3R1,LH

main85354-76020-D2i201708-202108

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH,SOLID RED,2LN ,3T2,LH

main85354-76020-E0i201312-201606

HEADLAMP-LED&HEADLAMP CLEANER-WITH,FIRE AGATE M.M.,4V3,LH

main85354-76020-E1i201708-202008

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH,AMBER CS.,2PW ,4X2,LH

main85354-76020-E2i201708-202008

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH,LAVA ORANGE CS.,2QE,4W7,LH; HEADLAMP-LED&HEADLAMP CLEANER-WITH,LAVA ORANGE CS.,2QE ,4W7,LH

main85354-76020-E3i202008-202108

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH,BLAZING CARNELIAN CONTRAS,4Y1,LH; HEADLAMP-LED&HEADLAMP CLEANER-WITH,BLAZING CARNELIAN CONTRAS,4Y1,LH

main85354-76020-F0i201312-201508

HEADLAMP-LED&HEADLAMP CLEANER-WITH,FLARE YELLOW M.M.,2LP ,5B1,LH

main85354-76020-G0i202008-202108

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH,TERRANE KHAKI M.M.,6X4,LH; HEADLAMP-LED&HEADLAMP CLEANER-WITH,TERRANE KHAKI M.M.,6X4,LH

main85354-76020-J0i201312-201606

HEADLAMP-LED&HEADLAMP CLEANER-WITH,BLUE ME.,2LQ ,8U1,LH

main85354-76020-J1i201508-202108

HEADLAMP-LED&HEADLAMP CLEANER-WITH,DEEP BLUE MC.,2PK ,8X5,LH

main85354-76020-J2i201606-202008

HEADLAMP-LED&HEADLAMP CLEANER-WITH,SPARKLING METEOR ME.,2PX ,8X9,LH

main85354-76020-J3i201708-202108

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH,HEAT BLUE CONTRASTLAYERI,2QF ,8X1,LH; HEADLAMP-LED&HEADLAMP CLEANER-WITH,HEAT BLUE CONTRAST LAYERI,2QF ,8X1,LH

main85354-76020-J4i202008-202108

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&HEADLAMP CLEANER-WITH,CELESTIAL BLUE GF.,8Y6,LH; HEADLAMP-LED&HEADLAMP CLEANER-WITH,CELESTIAL BLUE GF.,8Y6,LH

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main90075-17002i201012-201312

HEAD LAMP-LED; REAR WINDOW WIPER-WITH&HEAD LAMP-LED

main90075-17012i201312-202108

HEADLAMP CLEANER-WITH

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main90075-17005i201012-201312

HEAD LAMP-LED

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

main90075-17007i201012-201312

HEAD LAMP-LED

main90075-17010i201312-202108

HEADLAMP-LED&HEADLAMP CLEANER-WITH

85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2

main90075-17001×2i201012-201312

HEAD LAMP-LED

main90075-17011×3i201312-202108

HEADLAMP-LED&HEADLAMP CLEANER-WITH

85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3

main90075-17004i201012-201312

HEAD LAMP-LED

main90075-17013×2i201312-202108

HEADLAMP-LED&HEADLAMP CLEANER-WITH

85371BHOSE, HEADLAMP CLEANER (FROM MOTOR TO JOINT)

main90075-15059i201012-201312

L=80,HEAD LAMP-LED; L=80,REAR WINDOW WIPER-WITH&HEAD LAMP-LED

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

9007591002

main90075-91002

21 parts on this diagram · 2 diagrams in section
