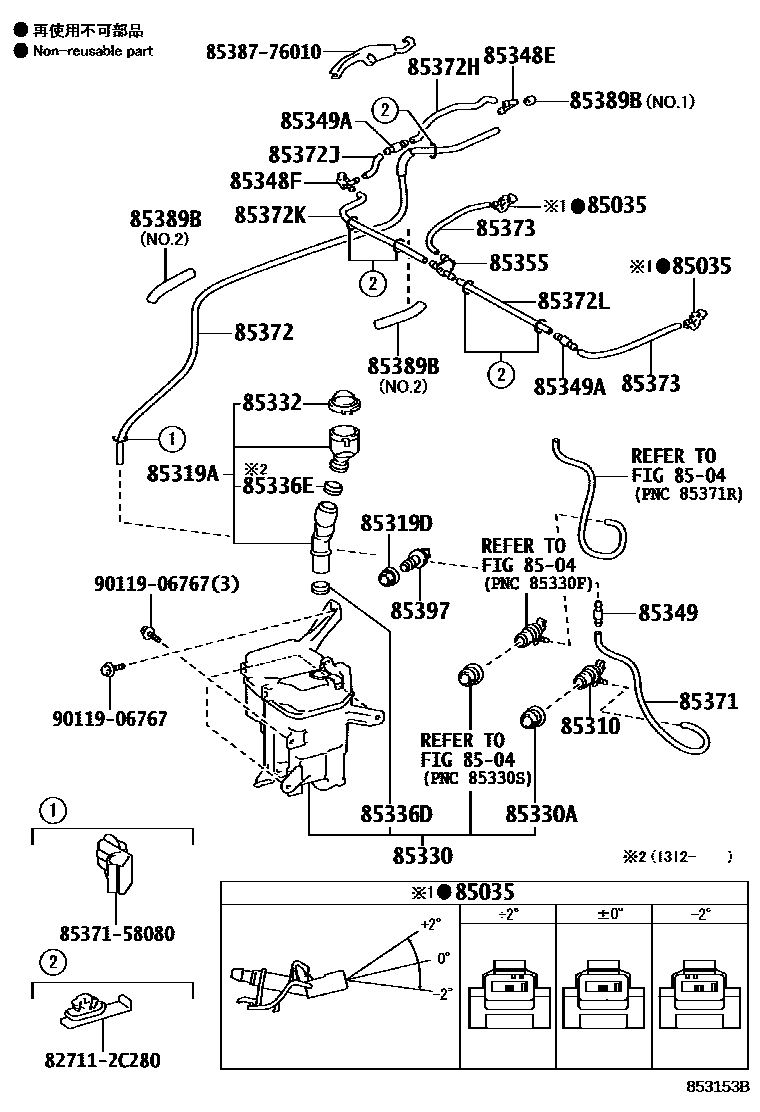

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE -2
ANGLE +2
8504REAR WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319AHOSE, INLET
HEAD LAMP-LED; REAR WINDOW WIPER-WITH&HEAD LAMP-LED
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH,MARK=E11:REF.ILLUST
HEADLAMP CLEANER-WITH,MARK=E13:REF.ILLUST
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
REAR WINDOW WIPER-WITH
HEAD LAMP-LED
HEAD LAMP-LED; REAR WINDOW WIPER-WITH&HEAD LAMP-LED
HEADLAMP CLEANER-WITH
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
HEADLAMP CLEANER-WITH,MARK=E11:REF.ILLUST
HEADLAMP CLEANER-WITH,MARK=E13:REF.ILLUST
85336DPACKING, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
HEADLAMP CLEANER-WITH
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85349AJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=480); L=1450(*H,L=480),HEADLAMP CLEANER-WITH
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=870)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1800(*H,L=305)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=60)
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
L=1450(*H,L=480)
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
L=1450(*H,L=325)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=230)
85389BPROTECTOR, WINDSHIELD WASHER
NO.2
NO.1
85397SWITCH ASSY,LEVEL WARNING
827112C280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C280
8537158080HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-58080
8538776010CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-76010
9011906767
main90119-06767
28 parts on this diagram · 2 diagrams in section
