REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-76010iZWA10..B; ZWA10..E201012-201312

REAR WINDOW WIPER-WITH

85143RGROMMET, REAR WIPER MOTOR

main85143-28070iZWA10..B; ZWA10..E201012-201312

REAR WINDOW WIPER-WITH

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iZWA10..B; ZWA10..E201012-201312

REAR WINDOW WIPER-WITH

85214RRUBBER, REAR WIPER

main85214-52060iZWA10201312-201704

85241AARM, REAR WIPER

main85241-52140supersedes 85241-52150iZWA10201708-202108

main85241-52150iZWA10..B; ZWA10..E201012-201312

REAR WINDOW WIPER-WITH

85242BLADE, RR WIPER

main85242-52060iZWA10..B; ZWA10..E201012-201312

REAR WINDOW WIPER-WITH

85292ACAP, REAR WIPER ARM HEAD

main85292-52040supersedes 85292-52050iZWA10201708-202108

main85292-52050iZWA10..B; ZWA10..E201012-201312

REAR WINDOW WIPER-WITH

9011906A45

main90119-06A45

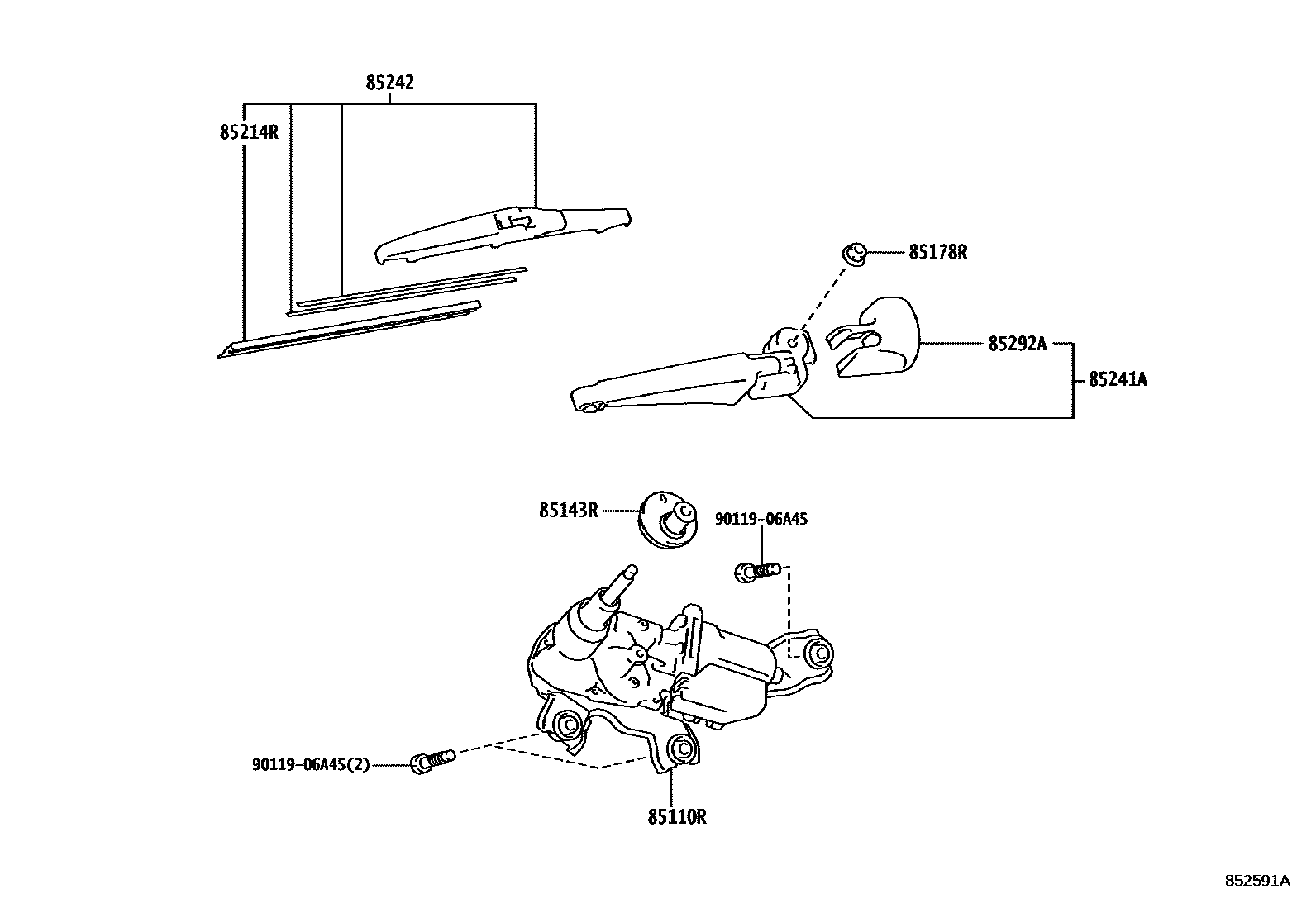

8 parts on this diagram · 1 diagram in section
