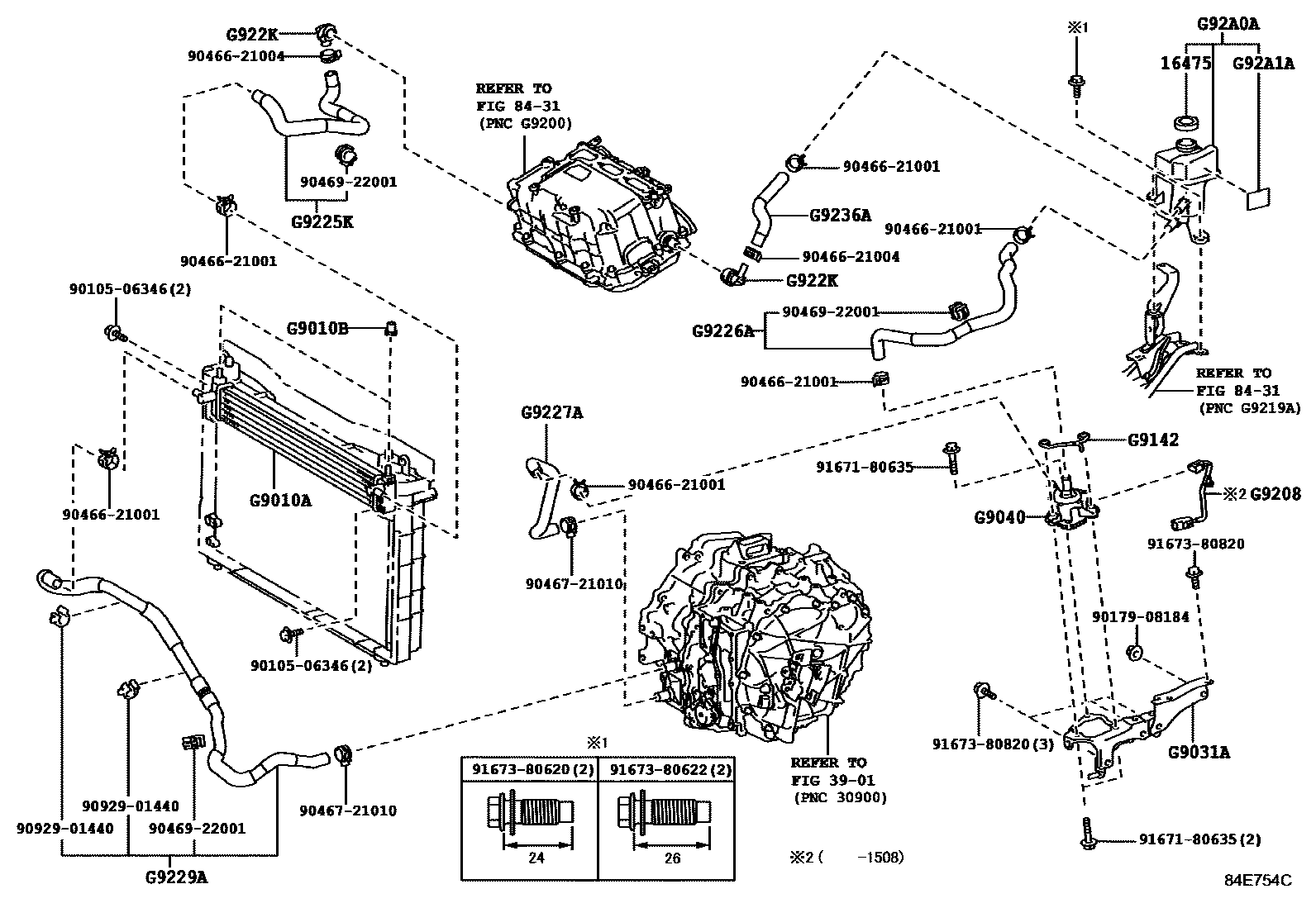

INVERTER COOLING

16475CAP, RESERVE TANK

main16475-28140i2ZRFXE..ZWA10201606-202108

main16475-37010i2ZRFXE..ZWA10201012-201312

main16475-37011i2ZRFXE..ZWA10201410-201605

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8431HEV INVERTER

→ Go to FIG 84-31

G9010ARADIATOR ASSY

mainG901076010iZWA10201012-201312

mainG901076011iZWA10201502-201708

mainG901076020iZWA10201708-202108

G9010BCUSHION, INVERTER RADIATOR

main16716-37010×2iZWA10201312-202108

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG903147010iZWA10201012-201312

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904047090iZWA10201104-201208

mainG904048020iZWA10201012-201104

mainG904052010iZWA10201208-201312

G9142BRACKET, HYBRID WATER PUMP, NO.2

mainG914247010iZWA10201012-201312

G9208WIRE SUB-ASSY, INVERTER

mainG920847080iZWA10201312-201508

G9225KHOSE, INVERTER COOLING, NO.1

mainG922576010iZWA10201012-201312

G9226AHOSE, INVERTER COOLING, NO.2

mainG922647020iZWA10201012-201312

G9227AHOSE, INVERTER COOLING, NO.3

mainG922747020iZWA10201012-201312

G9229AHOSE, INVERTER COOLING, NO.5

mainG922976010iZWA10201012-201312

G922KCONNECTOR, HYBRID WATER HOSE

mainG922K47011×2iZWA10201012-201312

G9236AHOSE, INVERTER COOLING, NO.6

mainG923647031iZWA10201012-201312

G92A0ATANK ASSY, INVERTER RESERVE

mainG92A076010iZWA10201012-201312

mainG92A076011iZWA10201410-201605

mainG92A076012iZWA10201606-202108

G92A1ALABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A176010iZWA10201012-201312

9010506346

main90105-06346

9017908184

main90179-08184

9046621001

main90466-21001

9046621004

main90466-21004

9046721010

main90467-21010

9046922001

main90469-22001

9092901440

main90929-01440

9167180635

main91671-80635

9167380620

main91673-80620

9167380622

main91673-80622

9167380820

main91673-80820

28 parts on this diagram · 1 diagram in section
