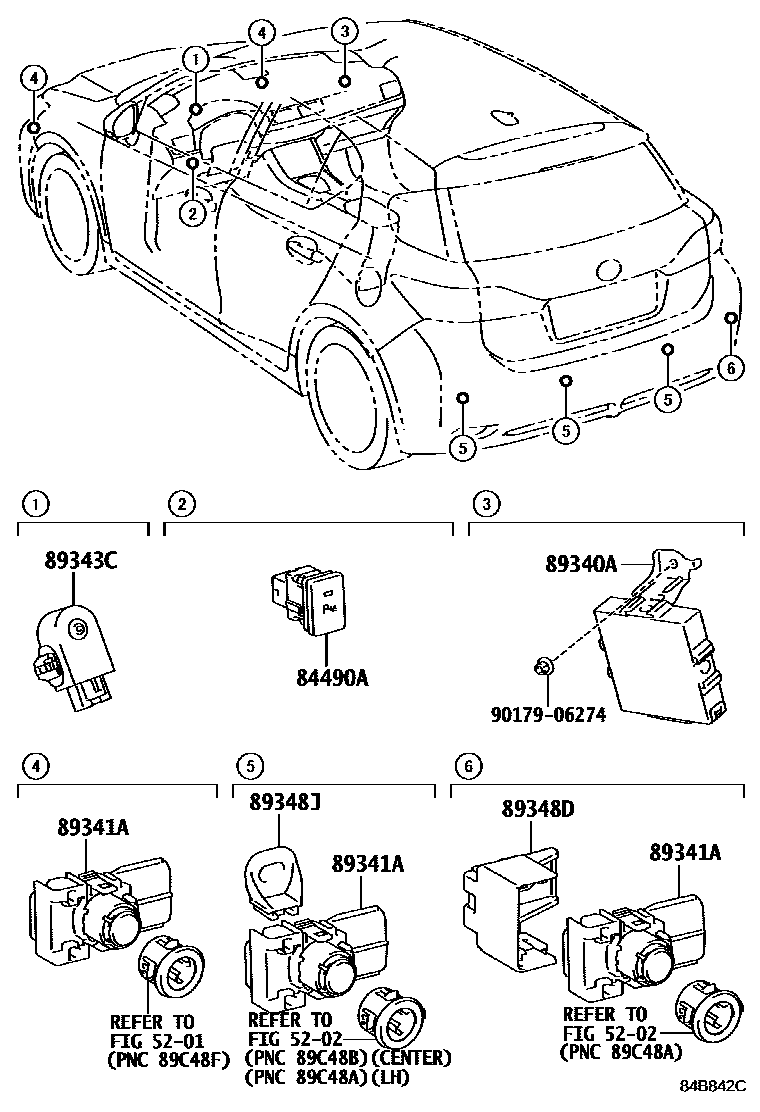

CLEARANCE & BACK SONAR

0001 1 0002 1 0003 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-20070iZWA10..B201012-201311

CLEARANCE & BACK SONAR-WITH

main84490-20071iZWA10201503-201912

CLEARANCE & BACK SONAR-WITH

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-76010supersedes 89340-76110iZWA10..B201012-201107

CLEARANCE & BACK SONAR-WITH

main89340-76011supersedes 89340-76110iZWA10..B201108-201312

CLEARANCE & BACK SONAR-WITH

main89340-76020supersedes 89340-76110iZWA10201312-201912

CLEARANCE & BACK SONAR-WITH

89341ASENSOR, ULTRASONIC, NO.1

main89341-78010-A0×6iZWA10201912-202108

SONIC QUARTZ,085 ,2QB

main89341-78010-A1×6iZWA10201912-202108

WHITE NOVA GF.,083 ,2LJ

main89341-78010-B0×6iZWA10201912-202108

MERCURY GRAY MC.,1H9 ,2LL

main89341-78010-B2×6iZWA10201912-202108

SONIC TITANIUM,1J7 ,2MN

main89341-78010-C3×6iZWA10201912-202108

GRAPHITE BLACK GF.,223 ,2PZ

main89341-78010-D0×6iZWA10201912-202108

RED MC.CS.,2LM ,2QA ,3R1

main89341-78010-D4×6iZWA10201912-202108

MADDER RED,2LN ,3T2

main89341-78010-E2×6iZWA10201912-202008

AMBER CS.,4X2

main89341-78010-E3×6iZWA10201912-202008

LAVA ORANGE CS.,2QE ,4W7

main89341-78010-E5×6iZWA10202008-202108

BLAZING CARNELIAN CONTRAS,4Y1

main89341-78010-G0×6iZWA10202008-202108

TERRANE KHAKI M.M.,6X4

main89341-78010-J2×6iZWA10201912-202108

DEEP BLUE MC.,8X5

main89341-78010-J3×6iZWA10201912-202108

HEAT BLUE CONTRAST LAYERI,2QF ,8X1

main89341-78010-J8×6iZWA10201912-202008

SPARKLING METEOR ME.,2PX ,8X9

main89341-78010-R0×6iZWA10202008-202108

CELESTIAL BLUE GF.,8Y6

main89341-33200-A0×6iZWA10201312-201508

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077 ,2LH

main89341-33200-A1×6iZWA10201312-201508

CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083 ,2LJ

main89341-33200-A2×6iZWA10201408-201508

CLEARANCE & BACK SONAR-WITH,SONIC QUARTZ,085 ,2MP

main89341-33200-B0×6iZWA10201312-201508

CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9 ,2LK ,2LL

main89341-33200-B1×6iZWA10201312-201508

CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER ME.,1J4 ,2LK ,2LL

main89341-33200-B2×6iZWA10201408-201508

CLEARANCE & BACK SONAR-WITH,SONIC TITANIUM,2MN

main89341-33200-C0×6iZWA10201312-201508

CLEARANCE & BACK SONAR-WITH,BLACK,212

main89341-33200-C2×6iZWA10201312-201508

CLEARANCE & BACK SONAR-WITH,BLACK OPAL MC.,214

main89341-33200-D0×6iZWA10201312-201508

CLEARANCE & BACK SONAR-WITH,RED MC.CS.,2LM ,3R1

main89341-33200-D2×6iZWA10201312-201508

CLEARANCE & BACK SONAR-WITH,SOLID RED,2LN ,3T2

main89341-33200-E1×6iZWA10201312-201508

CLEARANCE & BACK SONAR-WITH,FIRE AGATE M.M.,4V3

main89341-33200-F0×6iZWA10201312-201508

CLEARANCE & BACK SONAR-WITH,FLARE YELLOW M.M.,2LP ,5B1

main89341-33200-J2×6iZWA10201312-201508

CLEARANCE & BACK SONAR-WITH,BLUE ME.,2LQ ,8U1

main89341-76010-A0×6iZWA10..B201012-201312

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077

main89341-76010-A2×6iZWA10..B201208-201312

CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083

main89341-76010-B0×6iZWA10..B201012-201208

CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1

main89341-76010-B1×6iZWA10..B201108-201312

CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9

main89341-76010-B2×6iZWA10..B201012-201111

CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0

main89341-76010-B6×6iZWA10..B201208-201312

CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER ME.,1J4

main89341-76010-C0×6supersedes 89341-78010-C1iZWA10..B201012-201312

CLEARANCE & BACK SONAR-WITH,BLACK,212

main89341-76010-C1×6iZWA10..B201012-201312

CLEARANCE & BACK SONAR-WITH,BLACK OPAL MC.,214

main89341-76010-D0×6iZWA10..B201012-201312

CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1

main89341-76010-E0×6iZWA10..B201012-201312

CLEARANCE & BACK SONAR-WITH,FIRE AGATE M.M.,4V3

main89341-76010-F0×6iZWA10..B201012-201312

CLEARANCE & BACK SONAR-WITH,FLARE YELLOW M.M.,5B1

main89341-76010-J0×6iZWA10..B201012-201312

CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1

main89341-76010-J1×6iZWA10..B201012-201208

CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9

main89341-78010-B1×6iZWA10201508-201606

CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER ME.,1J4 ,2LK

main89341-78010-C1×6iZWA10201508-201912

CLEARANCE & BACK SONAR-WITH,BLACK,212

main89341-78010-E0×6iZWA10201508-201606

CLEARANCE & BACK SONAR-WITH,FIRE AGATE M.M.,4V3

main89341-78010-J0×6iZWA10201508-201606

CLEARANCE & BACK SONAR-WITH,BLUE ME.,2LQ ,8U1

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-72010iZWA10..B201012-201312

CLEARANCE & BACK SONAR-WITH

89348DCLIP, ULTRASONIC SENSOR

main89348-76010iZWA10..B201012-201312

CLEARANCE & BACK SONAR-WITH

89348JCLIP, ULTRASONIC SENSOR

main89348-35030×3iZWA10..B201012-201312

CLEARANCE & BACK SONAR-WITH

9017906274

main90179-06274

9 parts on this diagram · 3 diagrams in section
