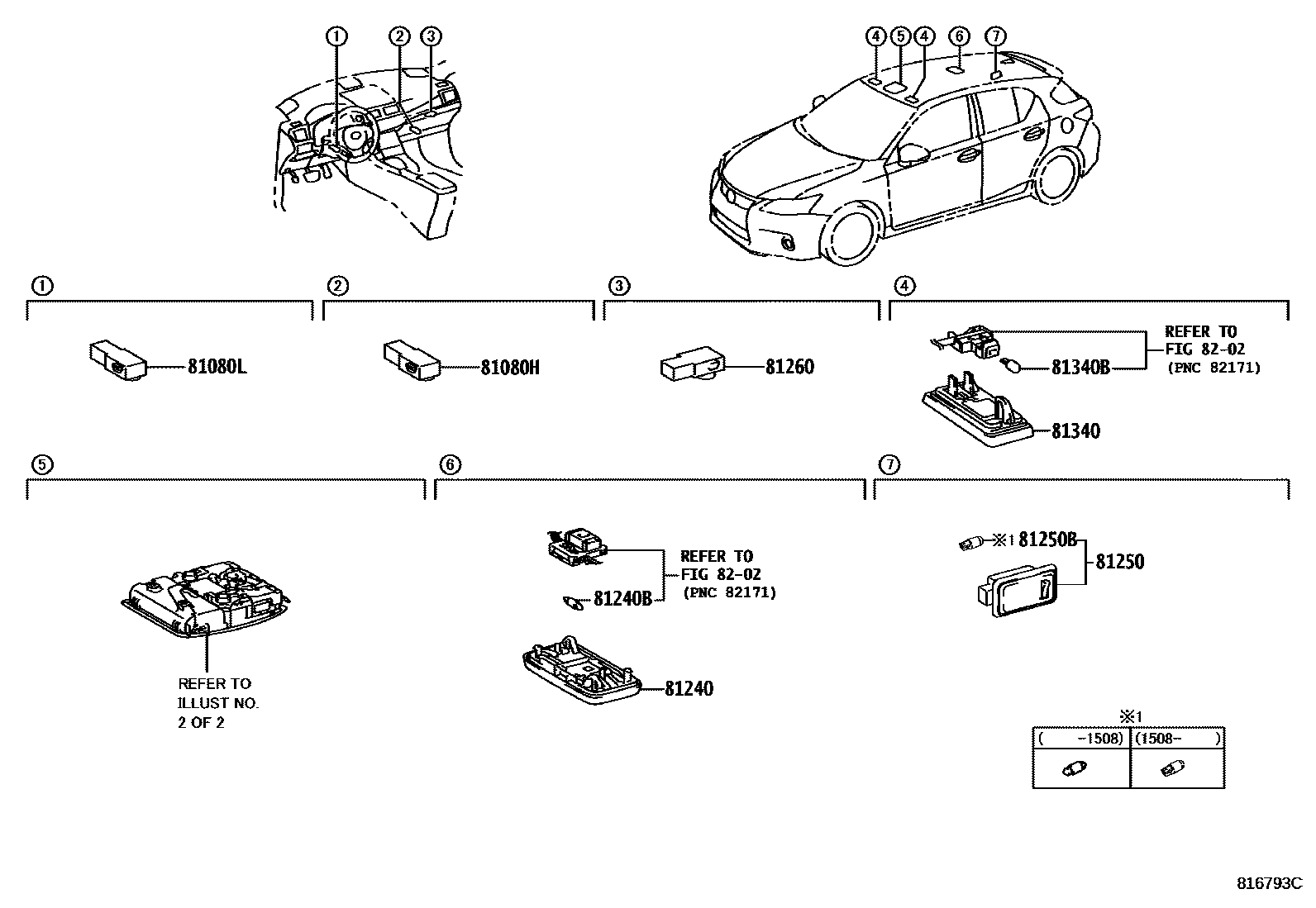

INTERIOR LAMP
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81240LAMP ASSY, ROOM, NO.1
ECRU,TRIM02,22,36,43,44,45
BLACK,TRIM03,04,23,35,42
ECRU,TRIM00,01,02,20,22,36,4#,5#
LT.GRAY,TRIM0#,2#,4#,8#
BLACK,TRIM00,03,04,1#,20,23,3#,41,42,8#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81250BBULB, ROOM LAMP, NO.2
12V 5W
12V 5W
81260LAMP ASSY, GLOVE BOX
81340LAMP ASSY, VANITY
LT.GRAY,TRIM0#,2#,4#,8#
F SPORT,BLACK,TRIM0#,2#,4#
81340BBULB (FOR VANITY LAMP)
12V 8W
8202WIRING & CLAMP
10 parts on this diagram · 2 diagrams in section
