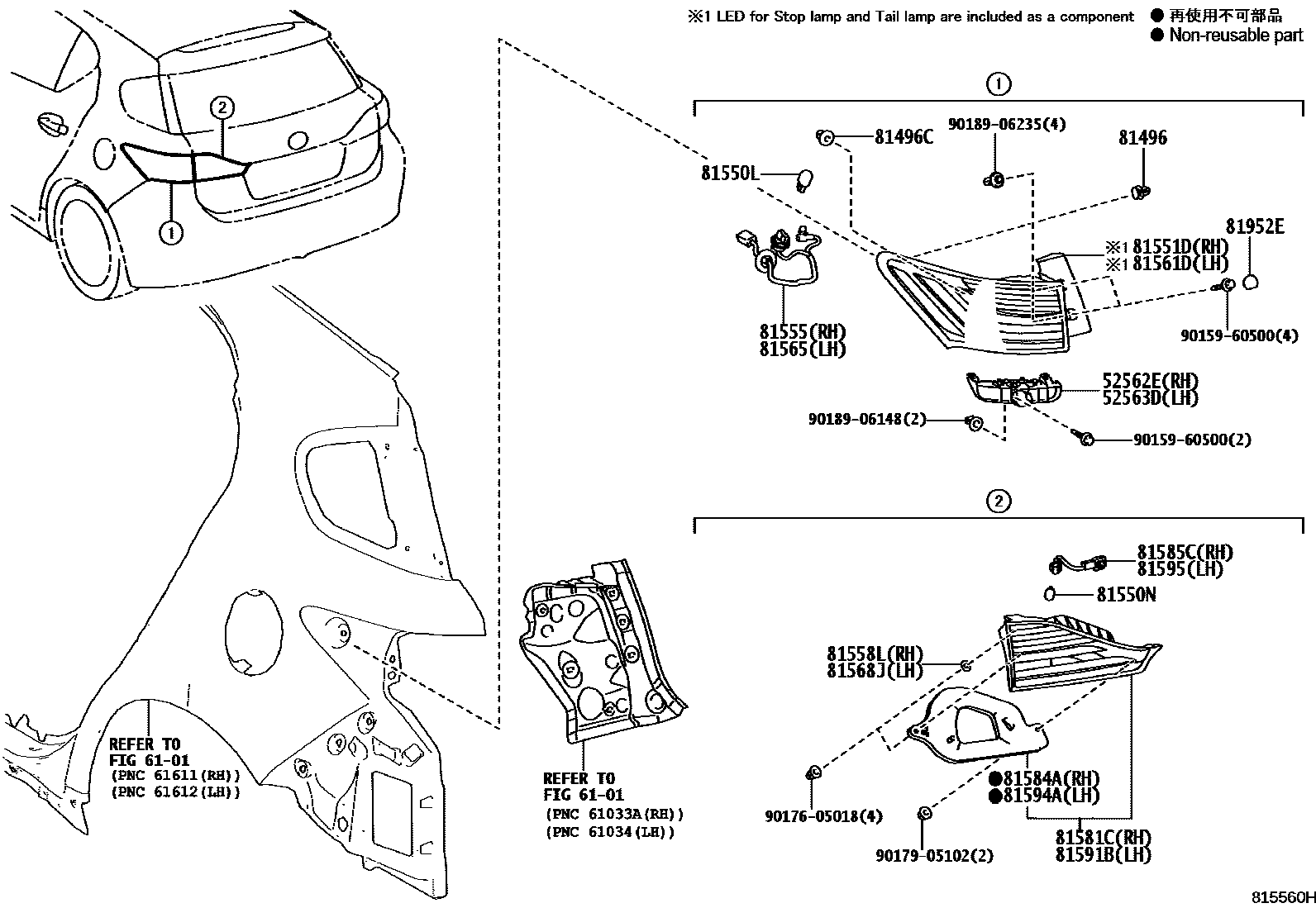

REAR COMBINATION LAMP

0001 1 0002 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-76010iZWA10201012-201312

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-76010iZWA10201012-201312

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-60010×2iZWA10201012-201312

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020×2iZWA10201012-201312

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iZWA10201012-201312

81550NBULB, BACK UP LAMP

main90981-11059×2iZWA10201012-201312

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-76010iZWA10201012-201312

main81551-76260iZWA10201708-201908

main81551-76060supersedes 81551-76261iZWA10..B201208-201312

KOREA SPEC

main81551-76100supersedes 81551-76090iZWA10201312-201702

KOREA SPEC

main81551-76101supersedes 81551-76091iZWA10201702-201708

KOREA SPEC

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-76020iZWA10201312-201708

81558LPROTECTOR, REAR COMBINATION LAMP, RH

main81558-24040iZWA10201012-201312

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-76010iZWA10201012-201312

main81561-76260iZWA10201708-201908

main81561-76060supersedes 81561-76261iZWA10..B201208-201312

KOREA SPEC

main81561-76100supersedes 81561-76090iZWA10201312-201702

KOREA SPEC

main81561-76101supersedes 81561-76091iZWA10201702-201708

KOREA SPEC

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-76020iZWA10201012-201312

81568JPROTECTOR, REAR COMBINATION LAMP, LH

main81558-24040iZWA10201012-201312

81581CLENS AND BODY, REAR LAMP, RH

main81581-76020iZWA10201012-201312

main81581-76021iZWA10201702-201708

main81581-76080iZWA10201708-201908

main81581-76081iZWA10201908-202108

81584AGASKET, REAR LAMP RH

main81584-76020iZWA10201012-201312

main81584-76080iZWA10201708-202108

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-76020iZWA10201012-201312

main81585-76080iZWA10201708-202108

81591BLENS AND BODY, REAR LAMP, LH

main81591-76020iZWA10201012-201312

main81591-76021iZWA10201702-201708

main81591-76080iZWA10201708-201908

main81591-76081iZWA10201908-202108

81594AGASKET, REAR LAMP LH

main81594-76020iZWA10201012-201312

main81594-76080iZWA10201708-202108

81595SOCKET & WIRE, REAR LAMP, LH

main81585-76020iZWA10201012-201312

main81585-76080iZWA10201708-202108

81952ECOVER, REAR LAMP

main81952-22010×4iZWA10201012-201312

9015960500

main90159-60500

9017605018

main90176-05018

9017905102

main90179-05102

9018906148

main90189-06148

9018906235

main90189-06235

25 parts on this diagram · 2 diagrams in section
