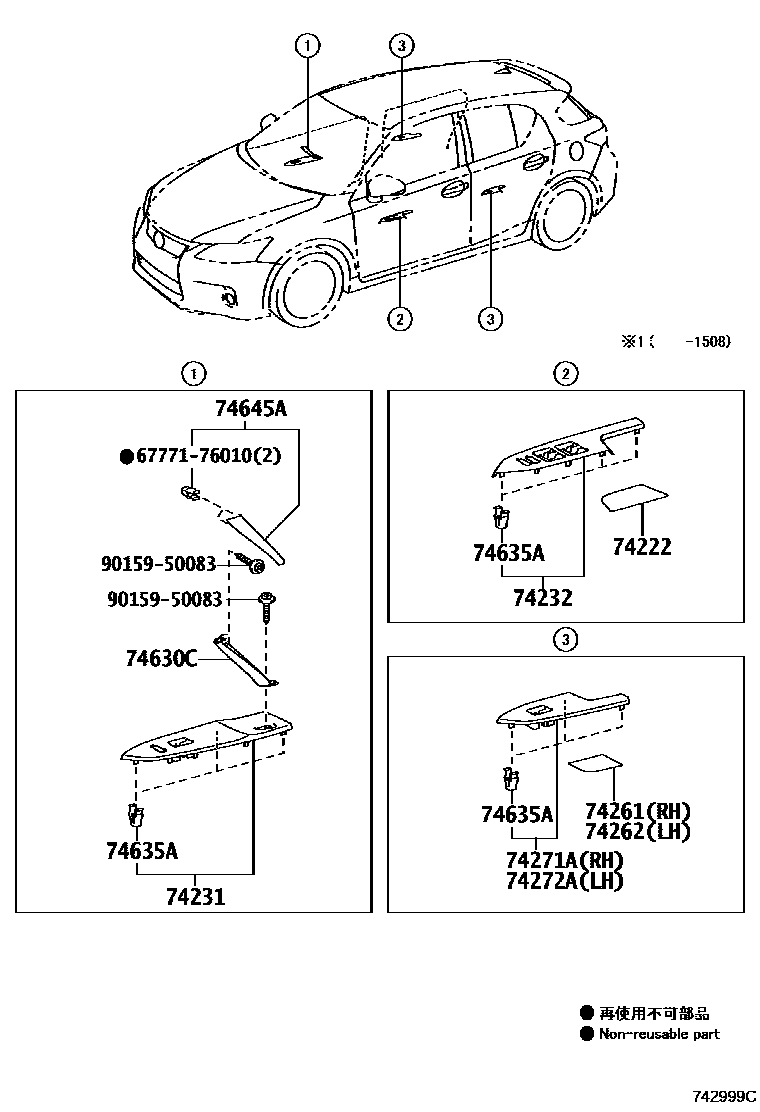

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74222COVER, DOOR ARMREST, LH

main74222-76010iZWA10201012-201312

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-76010iZWA10201012-201312

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-76010iZWA10201012-201312

main74232-76011iZWA10201312-202108

74261COVER, REAR DOOR ARMREST, RH

main74261-76010iZWA10201312-202108

74262COVER, REAR DOOR ARMREST, LH

main74262-76010iZWA10201312-202108

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-76010iZWA10201312-202108

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-76010iZWA10201312-202108

74630CGRIP ASSY, DOOR ASSIST, RH

main74641-76010-B0iZWA10201012-201312

ORNAMENT SILVER,TRIM0#,2#,4#

main74641-76020-B0iZWA10201312-202108

SILVER,TRIM0#,2#,3#,4#,5#

74635ACLIP

main90467-10203×12iZWA10201012-201312

74645ACOVER, DOOR ASSIST GRIP, RH

main74645-76010-C1iZWA10201012-201212

BLACK,TRIM0#,2#,4#

main74645-76020-C0iZWA10201301-201312

BLACK,TRIM0#,2#,4#

main74645-76021-C0iZWA10201412-201511

BLACK,TRIM0#,2#,3#,4#,5#

main74645-76030-C0iZWA10201512-202108

BLACK,TRIM0#,2#,3#,4#,5#

6777176010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-76010

9015950083

main90159-50083

12 parts on this diagram · 2 diagrams in section
