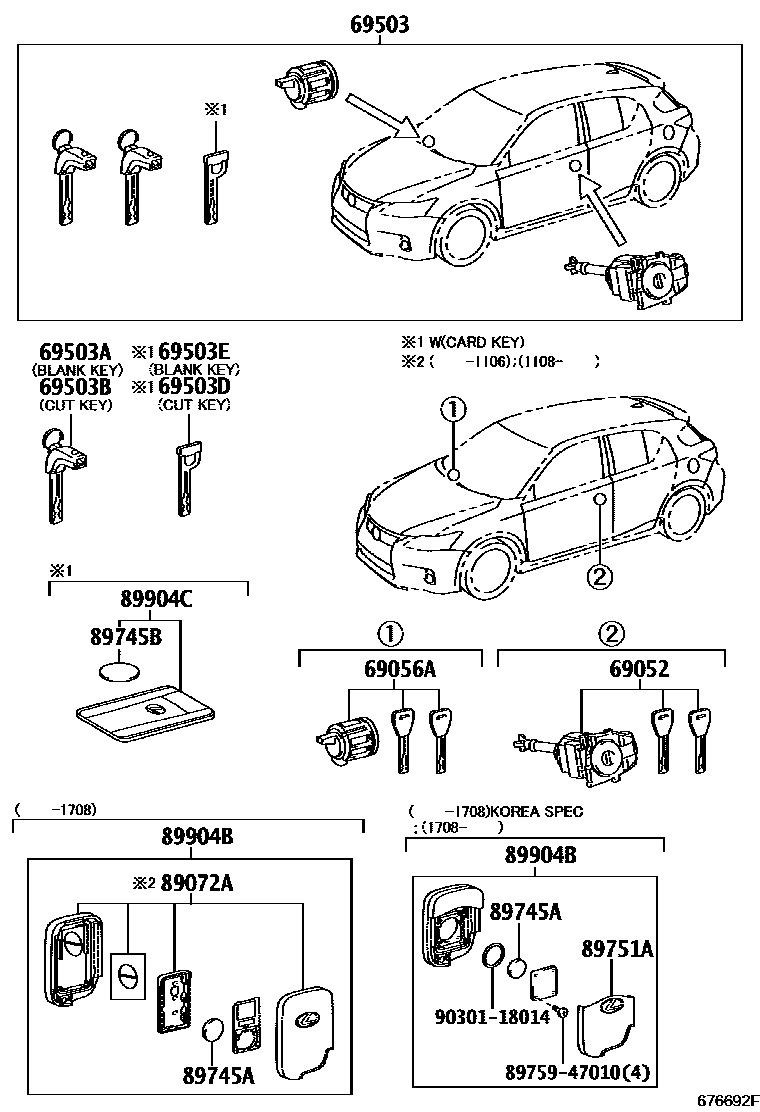

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-76020i201012-201312

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160i201312-202108

69503CYLINDER SET, LOCK

main69005-76080supersedes 69005-76070i201012-201312

ELECTRICAL KEY(2)+CARD TYPE(1)

69503AKEY, BLANK

main69515-50260i201012-201312

BLANK KEY

69503BKEY, CUT

main69515-50240×2i201012-201312

MASTER KEY

69503DKEY, CUT(CARD KEY)

main69515-50220i201012-201312

MASTER KEY,ELECTRICAL KEY(2)+CARD TYPE(1)

69503EKEY, BLANK(CARD KEY)

main69515-50270i201012-201312

BLANK KEY

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-48710×2i201012-201106

89745ABATTERY, TRANSMITTER

main89745-52020i201012-201312

main89745-52030supersedes 89745-52020i201708-202108

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030i201012-201312

ELECTRICAL KEY(2)+CARD TYPE(1); KOREA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)

89751ACOVER, TRANSMITTER HOUSING

main89751-48321×2i201708-202108

main89751-76010×2i201012-201104

KOREA SPEC

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-48481×2i201108-201312

main89904-76011×2supersedes 89904-48481i201708-202108

main89904-76080×2i201106-201108

main89904-76010×2i201012-201104

KOREA SPEC

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main89904-76130i201106-201108

ELECTRICAL KEY(2)+CARD TYPE(1)

main89994-48131i201012-201104

KOREA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)

main89994-48132i201105-201107

KOREA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)

main89994-48142i201108-201312

ELECTRICAL KEY(2)+CARD TYPE(1)

main89994-48270i201312-201703

KOREA SPEC&KEY PLATE-WITH(CARD KEY)

main89994-48271i201708-202108

KEY PLATE-WITH(CARD KEY)

8975947010SCREW, DOOR CONTROL TRANSMITTER

main89759-47010

9030118014

main90301-18014

15 parts on this diagram · 1 diagram in section
