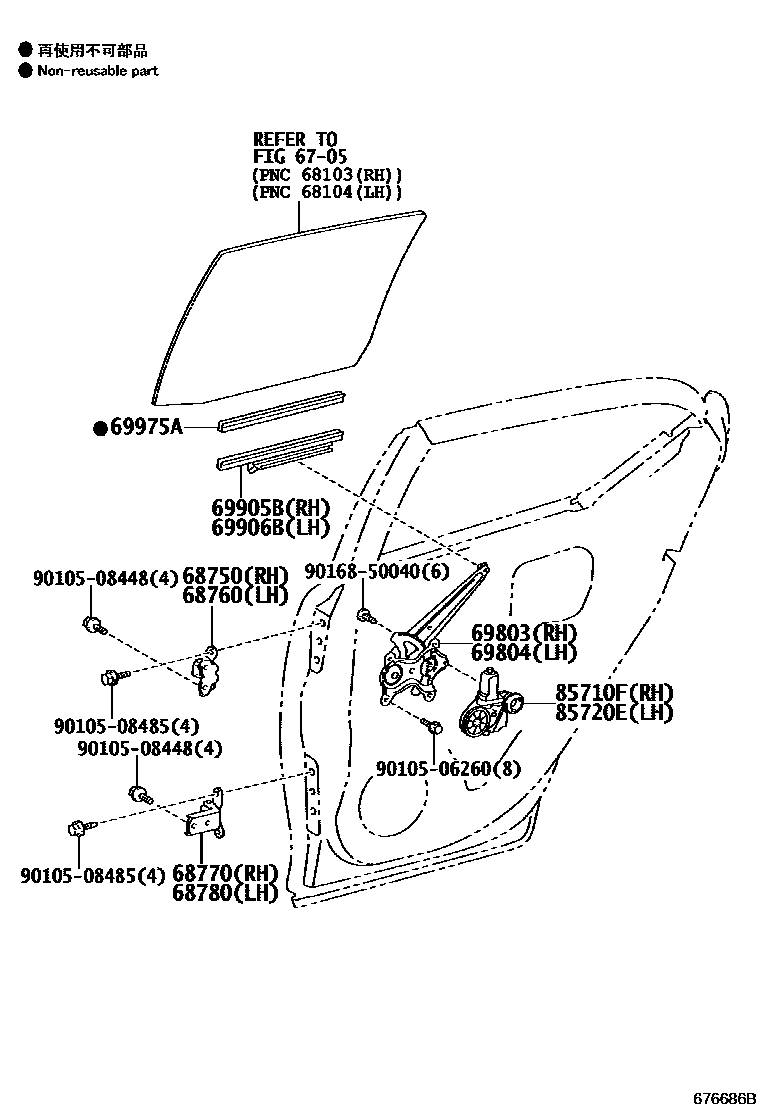

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iZWA10201012-201206

main68750-20122iZWA10201207-201312

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iZWA10201012-201206

main68760-20122iZWA10201207-201312

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iZWA10201012-201312

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iZWA10201012-201312

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-22200iZWA10201012-201312

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-22200iZWA10201012-201312

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-60060iZWA10201012-201312

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-60050iZWA10201012-201312

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-60060×2iZWA10201012-201312

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-60300iZWA10201312-201508

main85720-60320iZWA10201508-202108

main85720-75070iZWA10201012-201302

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-60330iZWA10201302-201312

main85710-60340iZWA10201508-202108

main85710-75070iZWA10201012-201302

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
