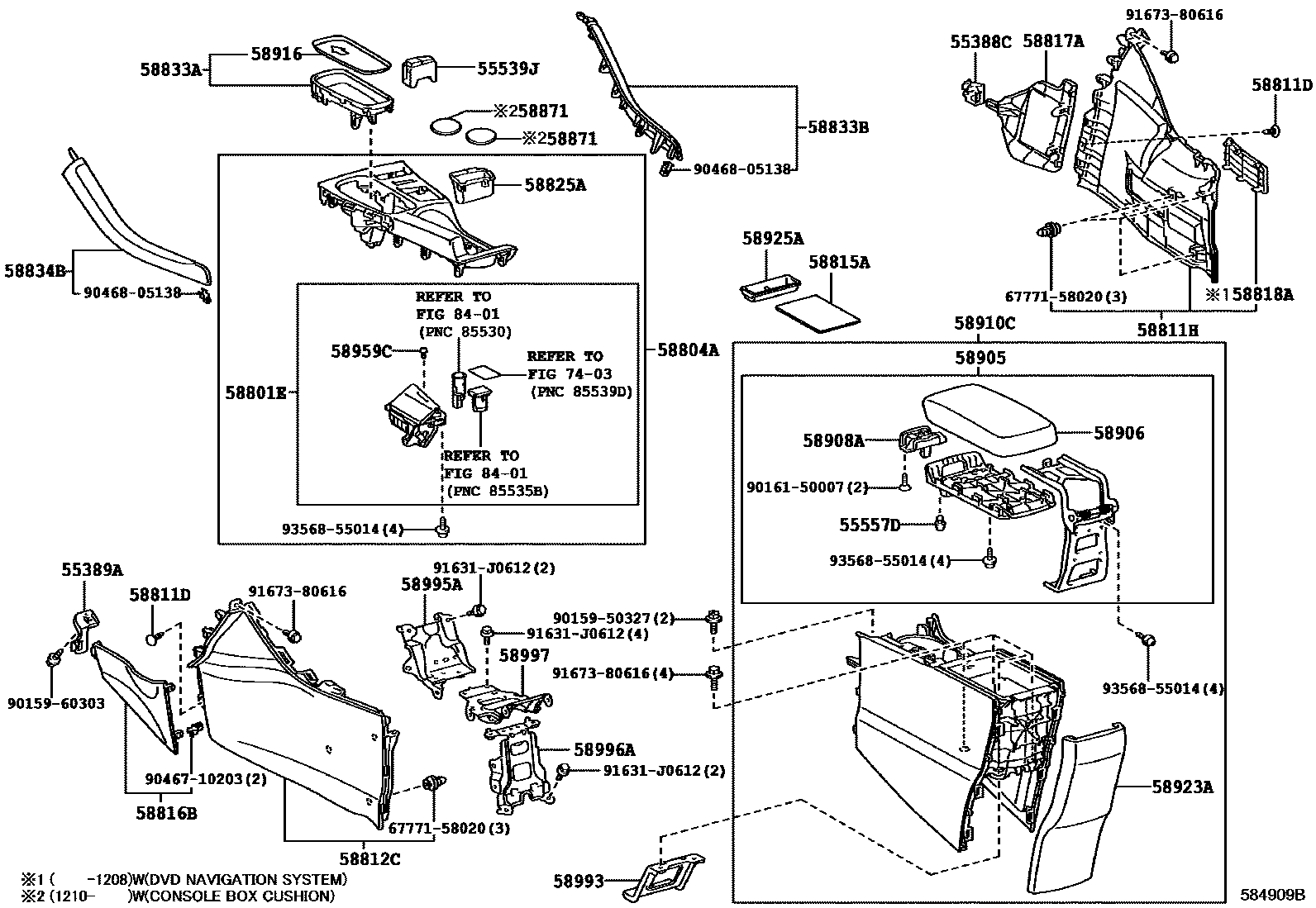

CONSOLE BOX & BRACKET

0001 1 0002 1

55388CBRACKET, CONSOLE MOUNTING, RH

main55388-42010iZWA10201012-201103

main55388-75040iZWA10201312-202108

55389ABRACKET, CONSOLE MOUNTING, LH

main55389-12040iZWA10201012-201312

55539JCOVER, SPARE SWITCH HOLE

55557DCUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-53030×2iZWA10201312-202108

58801EBOX SUB-ASSY, CONSOLE, UPPER

main58802-76010iZWA10201012-201312

main58802-76030iZWA10201312-202108

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-76040iZWA10201012-201312

main58804-76090iZWA10201312-201607

main58804-76091iZWA10201608-202108

58811DCLIP(FOR CONSOLE BOX)

main90467-06020-C0×2iZWA10201312-202108

BLACK

58811HBOX, CONSOLE, RH

main58811-76010-C0iZWA10201012-201312

BLACK,TRIM0#,2#,4#,8#

main58811-76011-C0iZWA10201603-202108

BLACK,TRIM0#,2#,3#,4#,5#

main58811-76020-C0iZWA10..B201012-201208

EMV & NAVIGATION SYSTEM-WITH(DVD),BLACK,TRIM0#,2#

sub58811-76021

58812CBOX, CONSOLE, LH

main58812-76010-C0iZWA10201312-201602

BLACK,TRIM0#,1#,2#,3#,4#,5#,8#

main58812-76011-C0iZWA10201603-202108

BLACK,TRIM0#,2#,3#,4#,5#

58815ACARPET, CONSOLE BOX

main58815-76010iZWA10201708-202108

58816BINSERT, CONSOLE BOX

main58816-76010-C0iZWA10201012-201312

BLACK,TRIM0#,2#,4#,8#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-76010-C0iZWA10201012-201312

BLACK,TRIM0#,2#,4#,8#

58818ACOVER, CONSOLE BOX, FR

main58818-76010-C0iZWA10..B201012-201208

EMV & NAVIGATION SYSTEM-WITH(DVD),BLACK,TRIM0#,2#

58825APOCKET, CONSOLE BOX

main58825-76010iZWA10201012-201312

58833ACOVER, CONSOLE, UPPER

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-76030-26iZWA10201312-201708

BLACK/IVORY/IVORY,TRIM01

main58833-76030-27iZWA10201312-201708

BLACK/TOPAZ BROWN/IVORY,TRIM5#

main58833-76030-41iZWA10201312-201412

BLACK/BLACK/DK.ROSE,TRIM3#

main58833-76030-43iZWA10201312-201708

BLACK/BLACK/LT.GRAY,TRIM00,2#,4#

main58833-76030-44iZWA10201412-201606

BLACK/BLACK/RED,TRIM33

main58833-76030-C0iZWA10201012-201312

BLACK,TRIM0#,2#,4#,8#

main58833-76031-43iZWA10201708-202108

BLACK/BLACK/LT.GRAY,TRIM00,02,2#,41,43

main58833-76031-44iZWA10201708-202108

BLACK/BLACK/RED,TRIM36,37

main58833-76031-45iZWA10201708-202108

BLACK/WHITE/MELLOW WHITE,TRIM03

main58833-76031-47iZWA10201708-202108

BLACK/RED/RED,TRIM35

main58833-76031-48iZWA10201708-202108

BLACK/BLACK/GARNET,TRIM45

main58833-76031-N1iZWA10201708-202108

BLACK/BLACK/ORANGE,TRIM44

main58833-76031-N4iZWA10201708-202108

BLACK/ORANGE/ORANGE,TRIM42

main58833-76031-N5iZWA10201708-202108

BLACK/BLACK/BEIGE,TRIM02

main58833-76031-N7iZWA10201708-202108

BLACK/CHATEAU/BEIGE,TRIM04

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-76010-26iZWA10201312-201708

BLACK/IVORY/IVORY,TRIM01

main58834-76010-27iZWA10201312-201708

BLACK/TOPAZ BROWN/IVORY,TRIM5#

main58834-76010-41iZWA10201412-201606

BLACK/BLACK/DK.ROSE,TRIM31

main58834-76010-43iZWA10201312-201708

BLACK/BLACK/LT.GRAY,TRIM00,2#,4#

main58834-76010-44iZWA10201412-201606

BLACK/BLACK/RED,TRIM33

main58834-76010-C0iZWA10201012-201312

BLACK,TRIM0#,2#,4#,8#

main58834-76011-43iZWA10201708-202108

BLACK/BLACK/LT.GRAY,TRIM00,02,2#,41,43

main58834-76011-44iZWA10201708-202108

BLACK/BLACK/RED,TRIM36,37

main58834-76011-45iZWA10201708-202108

BLACK/WHITE/MELLOW WHITE,TRIM03

main58834-76011-47iZWA10201708-202108

BLACK/RED/RED,TRIM35

main58834-76011-48iZWA10201708-202108

BLACK/BLACK/GARNET,TRIM45

main58834-76011-N1iZWA10201708-202108

BLACK/BLACK/ORANGE,TRIM44

main58834-76011-N4iZWA10201708-202108

BLACK/ORANGE/ORANGE,TRIM42

main58834-76011-N5iZWA10201708-202108

BLACK/BLACK/BEIGE,TRIM02

main58834-76011-N7iZWA10201708-202108

BLACK/CHATEAU/BEIGE,TRIM04

58871CUSHION, CONSOLE BOX

main58871-76010×2iZWA10..B201210-201312

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-76010-C1iZWA10..B201012-201201

BLACK/BLACK,TRIM0#,2#,4#,8#

main58905-76011-C1iZWA10..B201202-201204

BLACK/BLACK,TRIM0#,2#,4#

main58905-76012-23iZWA10201312-201708

BLACK/BLACK/IVORY,TRIM01,5#

main58905-76012-24iZWA10201312-201412

BLACK/BLACK/DK.ROSE,TRIM3#

main58905-76012-26iZWA10201312-201708

BLACK/BLACK/LT.GRAY,TRIM00,2#,4#

main58905-76012-C1iZWA10..B201205-201312

BLACK/BLACK,TRIM00,01,02,2#,4#

main58905-76012-C4iZWA10201412-201608

BLACK/BLACK/RED,TRIM33

main58905-76013-26iZWA10201708-202108

BLACK/BLACK/LT.GRAY,TRIM00,02,04,2#,41,43

main58905-76013-27iZWA10201708-202108

BLACK/BLACK/MELLOW WHITE,TRIM03

main58905-76013-28iZWA10201708-202108

BLACK/BLACK/GARNET,TRIM45

main58905-76013-40iZWA10201708-202108

BLACK/BLACK/ORANGE,TRIM42,44

main58905-76013-42iZWA10201708-202108

BLACK/BLACK/BEIGE,TRIM02,04

main58905-76013-C4iZWA10201708-202108

BLACK/BLACK/RED,TRIM3#

main58905-76010-C2iZWA10..B201012-201201

VERSION L&SEAT COVER MATERIAL-LEATHER,IVORY/BLACK,TRIM00

main58905-76010-C3iZWA10..B201012-201201

VERSION L&SEAT COVER MATERIAL-LEATHER,WATER WHITE/BLACK,TRIM01

main58905-76011-C2iZWA10..B201202-201204

VERSION L&SEAT COVER MATERIAL-LEATHER,IVORY/BLACK,TRIM00

main58905-76011-C3iZWA10..B201202-201204

VERSION L&SEAT COVER MATERIAL-LEATHER,WATER WHITE/BLACK,TRIM01

main58905-76012-C2iZWA10..B201205-201312

VERSION L&SEAT COVER MATERIAL-LEATHER,IVORY/BLACK,TRIM00

main58905-76012-C3iZWA10..B201205-201312

VERSION L&SEAT COVER MATERIAL-LEATHER,WATER WHITE/BLACK,TRIM01

58906DOOR SUB-ASSY, UPPER CONSOLE

main58906-76010-C0iZWA10..B201012-201201

BLACK,TRIM0#,2#,4#,8#

main58906-76011-20iZWA10201312-201708

BLACK/IVORY,TRIM01,5#

main58906-76011-21iZWA10201412-201606

BLACK/DK.ROSE,TRIM31

main58906-76011-23iZWA10201312-201708

BLACK/LT.GRAY,TRIM00,2#,4#

main58906-76011-24iZWA10201708-202108

BLACK/ WHITE,TRIM03

main58906-76011-25iZWA10201708-202108

BLACK/GARNET,TRIM45

main58906-76011-27iZWA10201708-202108

BLACK/ORANGE,TRIM42,44

main58906-76011-29iZWA10201708-202108

BLACK/BEIGE,TRIM02,04

main58906-76011-C0iZWA10..B201202-201312

BLACK,TRIM0#,2#,4#

main58906-76011-C1iZWA10201412-201606

BLACK/RED,TRIM33

main58906-76010-A0iZWA10..B201012-201201

VERSION L&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM00

main58906-76010-A1iZWA10..B201012-201201

VERSION L&SEAT COVER MATERIAL-LEATHER,WATER WHITE,TRIM01

main58906-76011-A0iZWA10..B201202-201312

VERSION L&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM00

main58906-76011-A1iZWA10..B201202-201312

VERSION L&SEAT COVER MATERIAL-LEATHER,WATER WHITE,TRIM01

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-76010-C1iZWA10201012-201202

BLACK,TRIM0#,2#,4#,8#

main58908-76021-C0iZWA10201205-201312

BLACK,TRIM0#,2#,4#

58910CBOX ASSY, CONSOLE, REAR

main58910-76010-C0iZWA10..B201012-201201

BLACK/BLACK,TRIM0#,2#,4#,8#

main58910-76011-C0iZWA10..B201202-201204

BLACK/BLACK,TRIM0#,2#,4#

main58910-76012-20iZWA10201312-201607

BLACK/BLACK/IVORY,TRIM01,5#

main58910-76012-21iZWA10201312-201412

BLACK/BLACK/DK.ROSE,TRIM3#

main58910-76012-23iZWA10201312-201607

BLACK/BLACK/LT.GRAY,TRIM00,2#,4#

main58910-76012-24iZWA10201412-201607

BLACK/BLACK/RED,TRIM33

main58910-76012-C0iZWA10..B201205-201312

BLACK/BLACK,TRIM0#,2#,4#

main58910-76013-20iZWA10201608-201708

BLACK/BLACK/IVORY,TRIM01,5#

main58910-76013-21iZWA10201608-201708

BLACK/BLACK/DK.ROSE,TRIM3#

main58910-76013-23iZWA10201608-201708

BLACK/BLACK/LT.GRAY,TRIM00,2#,4#

main58910-76014-23iZWA10201708-202108

BLACK/BLACK/LT.GRAY,TRIM00,02,04,2#,41,43

main58910-76014-24iZWA10201708-202108

BLACK/BLACK/RED,TRIM3#

main58910-76014-25iZWA10201708-202108

BLACK/BLACK/MELLOW WHITE,TRIM03

main58910-76014-26iZWA10201708-202108

BLACK/BLACK/GARNET,TRIM45

main58910-76014-28iZWA10201708-202108

BLACK/BLACK/ORANGE,TRIM42,44

main58910-76014-40iZWA10201708-202108

BLACK/BLACK/BEIGE,TRIM02,04

main58910-76010-C1iZWA10..B201012-201201

VERSION L&SEAT COVER MATERIAL-LEATHER,IVORY/BLACK,TRIM00

main58910-76010-C2iZWA10..B201012-201201

VERSION L&SEAT COVER MATERIAL-LEATHER,WATER WHITE/BLACK,TRIM01

main58910-76011-C1iZWA10..B201202-201204

VERSION L&SEAT COVER MATERIAL-LEATHER,IVORY/BLACK,TRIM00

main58910-76011-C2iZWA10..B201202-201204

VERSION L&SEAT COVER MATERIAL-LEATHER,WATER WHITE/BLACK,TRIM01

main58910-76012-C1iZWA10..B201205-201312

VERSION L&SEAT COVER MATERIAL-LEATHER,IVORY/BLACK,TRIM00

main58910-76012-C2iZWA10..B201205-201312

VERSION L&SEAT COVER MATERIAL-LEATHER,WATER WHITE/BLACK,TRIM01

58916MAT, BOX BOTTOM

main58916-76010

58923APANEL, CONSOLE REAR END

main58923-76010-C0iZWA10201012-201202

BLACK,TRIM0#,2#,4#,8#

58925APOCKET, CONSOLE BOX, REAR

main58925-76010iZWA10201012-201312

58959CCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2iZWA10201012-201312

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58993-76010iZWA10201012-201312

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-76010iZWA10201012-201108

main58995-76011iZWA10201108-201312

main58995-76012iZWA10201810-202108

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-76010iZWA10201012-201312

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-76010iZWA10201012-201312

main58997-76020iZWA10201312-202108

7403

8401

6777158020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-58020

9015950327

main90159-50327

9015960303

main90159-60303

9016150007

main90161-50007

9046710203

main90467-10203

9046805138

main90468-05138

91631J0612

main91631-J0612

9167380616

main91673-80616

9356855014

main93568-55014

41 parts on this diagram · 2 diagrams in section
