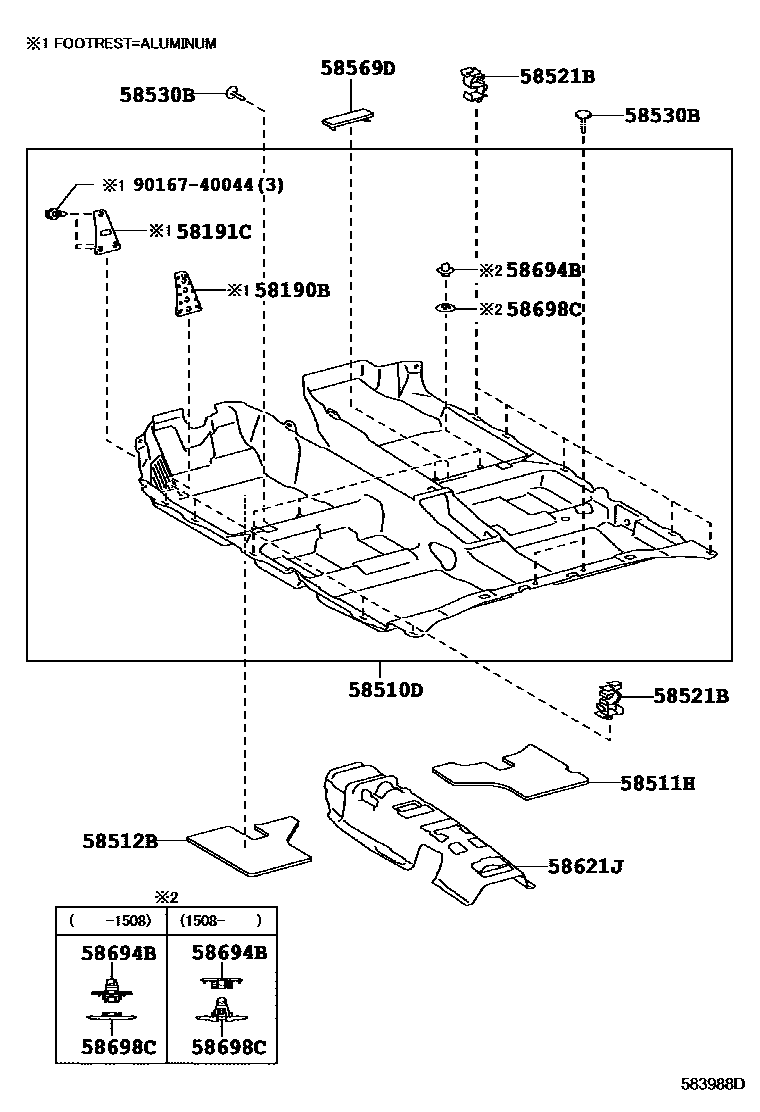

MAT & CARPET

58190BREST ASSY, FRONT FLOOR FOOT

main58190-76020i201012-201201

F SPORT; F SPORT&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS); F SPORT&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR

main58190-76020-C0i201201-201312

F SPORT&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS),BLACK,TRIM0#,2#,4#; F SPORT&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR,BLACK,TRIM0#,2#,4#; F SPORT,BLACK,TRIM0#,2#,4#

58191CPANEL, FOOTREST

main58192-76020i201312-202108

F SPORT; F SPORT&AUDIO-*DA & DVD & 10SPEAKER; F SPORT&AUDIO-AM/FM & DVD & EMV & 10SPEAKER; F SPORT&AUDIO-AM/FM & DVD & EMV & 13SPEAKER

58510DCARPET ASSY, FLOOR, FRONT

main58510-76050-C1i201012-201210

BLACK,TRIM0#,2#,4#,8#

main58510-76052-C1i201508-202108

BLACK,TRIM0#,2#,3#,4#

main58510-76040-C1i201012-201210

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS),BLACK,TRIM0#,2#,4#,8#; VERSION L&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR,BLACK,TRIM0#,2#,4#,8#

main58510-76041-C1i201312-201507

AUDIO-*DA & DVD & 10SPEAKER,BLACK,TRIM0#,2#,4#,5#; AUDIO-AM/FM & DVD & EMV & 10SPEAKER,BLACK,TRIM0#,2#,4#,5#; AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER,BLACK,TRIM0#,2#,4#,5#; VERSION L&AUDIO-AM/FM & DVD & EMV & 13SPEAKER,BLACK,TRIM0#,2#,4#,5#

main58510-76042-C1i201508-202108

AUDIO-*DA & DVD & 10SPEAKER,BLACK,TRIM0#,2#,3#,4#,5#; AUDIO-AM/FM & DVD & EMV & 10SPEAKER,BLACK,TRIM0#,2#,3#,4#,5#; VERSION L&AUDIO-AM/FM & DVD & EMV & 13SPEAKER,BLACK,TRIM0#,2#,3#,4#,5#

main58510-76080-C1i201012-201201

F SPORT&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS),BLACK,TRIM0#,2#,4#,8#; F SPORT&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR,BLACK,TRIM0#,2#,4#,8#

main58510-76080-C2supersedes 58510-76051-C1i201201-201210

F SPORT&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS),BLACK,TRIM0#,2#,4#; F SPORT&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR,BLACK,TRIM0#,2#,4#

main58510-76081-C2supersedes 58510-76051-C1i201211-201312

F SPORT&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS),BLACK,TRIM0#,2#,4#; F SPORT&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS),BLACK,TRIM0#,2#,4#; F SPORT&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR,BLACK,TRIM0#,2#,4#

main58510-76082-C2i201508-202108

F SPORT&AUDIO-*DA & DVD & 10SPEAKER,BLACK,TRIM0#,2#,3#,4#; F SPORT&AUDIO-AM/FM & DVD & EMV & 10SPEAKER,BLACK,TRIM0#,2#,3#,4#; F SPORT&AUDIO-AM/FM & DVD & EMV & 13SPEAKER,BLACK,TRIM0#,2#,3#,4#

main58510-76090-C1i201012-201201

F SPORT,BLACK,TRIM0#,2#,4#,8#

main58510-76090-C2supersedes 58510-76051-C1i201201-201210

F SPORT,BLACK,TRIM0#,2#,4#

main58510-76091-C2i201312-201507

F SPORT,BLACK,TRIM0#,1#,2#,3#,4#,8#

main58510-76092-C2i201508-201606

F SPORT SE PACKAGE(WITHOUT SEAT MEMORY),BLACK,TRIM0#,2#,3#,4#

58511HMAT, FLOOR, FRONT RH

main58512-75010i201012-201304

main58512-75011i201305-201312

58512BMAT, FLOOR, FRONT LH

main58511-75010i201012-201304

main58511-75011i201312-202108

58521BHOOK, FLOOR CARPET

main58521-76010×10i201012-201312

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23×3i201610-202108

BLACK,TRIM0#,2#,3#,4#

main90467-07049-C0×3i201312-201610

BLACK,TRIM0#,2#,3#,4#; F SPORT&AUDIO-*DA & DVD & 10SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,8#; F SPORT&AUDIO-AM/FM & DVD & EMV & 10SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,8#; F SPORT&AUDIO-AM/FM & DVD & EMV & 13SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,8#; F SPORT&AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,8#; F SPORT,BLACK,TRIM0#,1#,2#,3#,4#,8#

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-12010-C0i201012-201312

BLACK,TRIM0#,2#,4#,8#

58621JSILENCER, CENTER CONSOLE, NO.1

main58621-76010i201012-201312

main58621-76030i201312-202108

58694BPLATE, MAT SET, UPPER

main58694-76010×4i201012-201312

main58694-78010×4i201508-202108

58698CPLATE, MAT SET, LOWER

main58698-76010×4i201012-201312

main58698-78010×4i201508-202108

9016740044

main90167-40044

12 parts on this diagram · 1 diagram in section
