FRONT BUMPER & BUMPER STAY

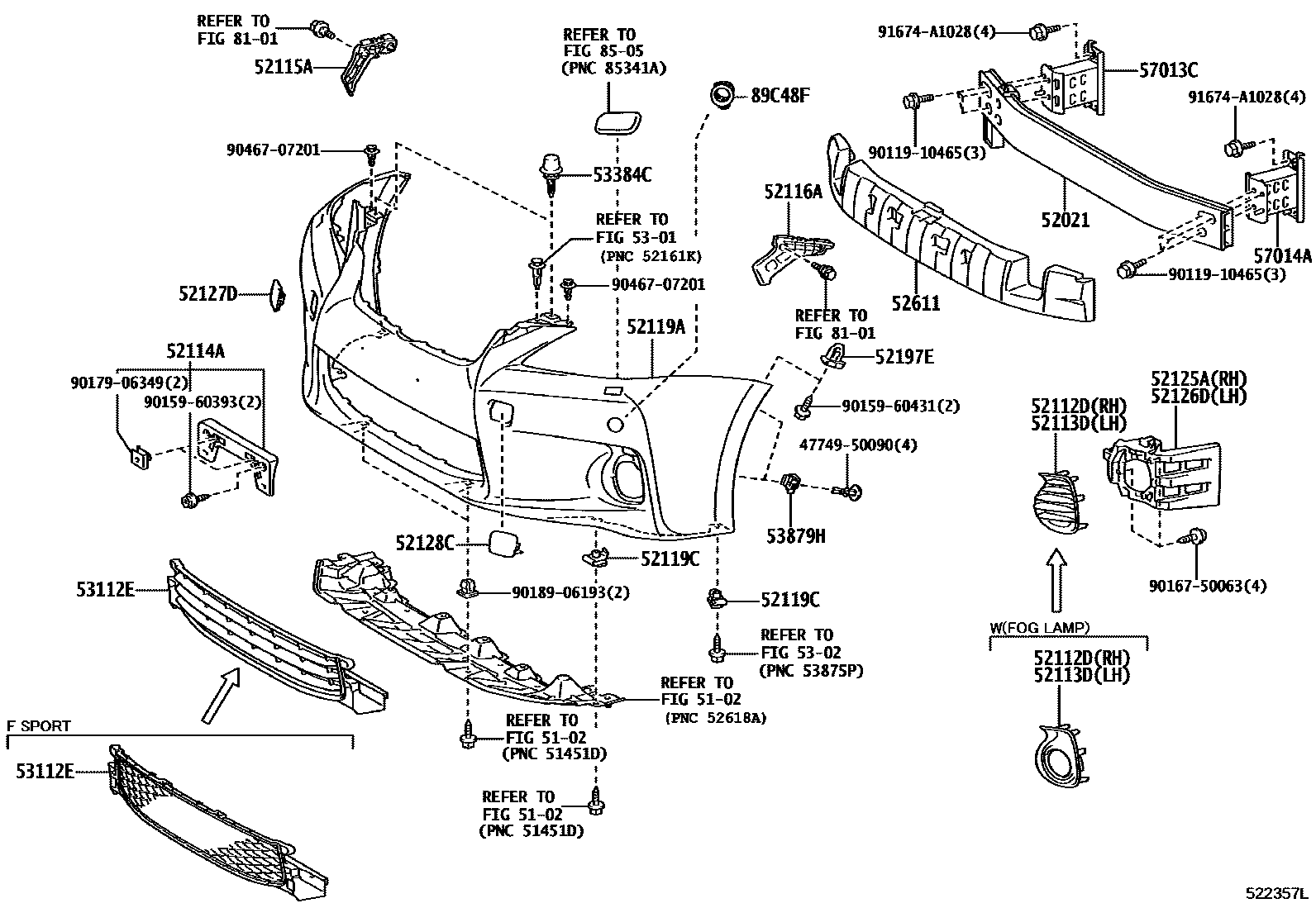

Parts diagram
5102SUSPENSION CROSSMEMBER & UNDER COVER
→ Go to FIG 51-02
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
main52021-76030i201012-201312
main52021-76100i201312-202108
52112DEXTENSION, FRONT BUMPER, RH
main52112-76010supersedes 52112-76020i201012-201312
NO PAINT REQ.; NO PAINT REQ.,FRONT FOG & DRIVING LAMP-WITH; NO PAINT REQ.,HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH
main52112-76030i201108-201111
NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE); NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE); NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&HEAD LAMP-LED; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-WITH(*MRT),LWR=AERO BUMPER; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-WITH(*MRT),LWR=AERO BUMPER&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-WITH(*MRT),LWR=AERO BUMPER&HEAD LAMP-LED; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-WITH(*MRT),LWR=AERO BUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE); NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&HEAD LAMP-LED; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH
main52112-76060supersedes 52112-76040i201312-201708
NO PAINT REQ.,F SPORT
main52112-76080i201508-201606
NO PAINT REQ.,F SPORT SE PACKAGE(WITHOUT SEAT MEMORY)
main52112-WY010i201012-201108
NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE& BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH
52113DEXTENSION, FRONT BUMPER, LH
main52113-76010supersedes 52113-76020i201012-201312
NO PAINT REQ.; NO PAINT REQ.,FRONT FOG & DRIVING LAMP-WITH; NO PAINT REQ.,HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH
main52113-76030supersedes 52113-76010i201111-201312
NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; NO PAINT REQ.,F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; NO PAINT REQ.,F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE& BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; NO PAINT REQ.,KOREA SPEC&F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; NO PAINT REQ.,KOREA SPEC&F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH
main52113-76060supersedes 52113-76040i201312-201708
NO PAINT REQ.,F SPORT
main52113-76080i201508-201606
NO PAINT REQ.,F SPORT SE PACKAGE(WITHOUT SEAT MEMORY)
main52113-WY010i201012-201108
NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE& BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
main52114-76030i201012-201312
main52114-76060i201312-201704
KOREA SPEC; KOREA SPEC&F SPORT
main52114-76090i201508-201606
F SPORT SE PACKAGE(WITHOUT SEAT MEMORY)
52115ASUPPORT, FRONT BUMPER SIDE, RH
main52115-76010i201012-201303
main52115-76011i201312-202108
52116ASUPPORT, FRONT BUMPER SIDE, LH
main52116-76010i201012-201303
main52116-76011i201304-201312
52119ACOVER, FRONT BUMPER
main52119-76904i201108-201111
PAINT REQ.,KOREA SPEC&RADIATOR GRILLE-F SPORT&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,RADIATOR GRILLE-F SPORT&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,RADIATOR GRILLE-F SPORT(*MRT)&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH
main52119-76905supersedes 52119-76952i201012-201312
PAINT REQ.,F SPORT&HEAD LAMP-LED; PAINT REQ.,HEAD LAMP-LED; PAINT REQ.,HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH; PAINT REQ.,KOREA SPEC&F SPORT&HEAD LAMP-LED; PAINT REQ.,KOREA SPEC&HEAD LAMP-LED
main52119-76906i201108-201111
PAINT REQ.,KOREA SPEC&RADIATOR GRILLE-F SPORT&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,RADIATOR GRILLE-F SPORT&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,RADIATOR GRILLE-F SPORT(*MRT)&CLEARANCE & BACK SONAR-WITH
main52119-76916i201108-201111
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AEROBUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-WITH(*MRT),LWR=AERO BUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH
main52119-76917i201108-201111
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED; PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED; PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED; PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AEROBUMPER&HEAD LAMP-LED; PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-WITH(*MRT),LWR=AERO BUMPER&HEAD LAMP-LED; PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED; PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED; PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&HEAD LAMP-LED
main52119-76918i201108-201111
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE)&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AEROBUMPER&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-WITH(*MRT),LWR=AERO BUMPER&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&CLEARANCE & BACK SONAR-WITH
main52119-76919i201108-201111
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE); PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER; PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE); PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AEROBUMPER; PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-WITH(*MRT),LWR=AERO BUMPER; PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER; PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE); PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER
main52119-76920supersedes 52119-76952i201312-201506
PAINT REQ.,HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH
main52119-76921supersedes 52119-76923i201312-201708
PAINT REQ.,HEADLAMP CLEANER-WITH
main52119-76922supersedes 52119-76952i201312-201506
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
main52119-76924supersedes 52119-76952i201312-201506
PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH
main52119-76925supersedes 52119-76952i201508-201606
PAINT REQ.,F SPORT SE PACKAGE(WITHOUT SEAT MEMORY)
main52119-76926supersedes 52119-76952i201312-201506
PAINT REQ.,F SPORT&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH
main52119-76927i201508-201606
PAINT REQ.,F SPORT SE PACKAGE(WITHOUT SEAT MEMORY)&HEADLAMP CLEANER-WITH
main52119-76931i201508-201708
PAINT REQ.,HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH
main52119-76934i201508-201708
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
main52119-76937i201508-201606
PAINT REQ.,F SPORT SE PACKAGE(WITHOUT SEAT MEMORY)&CLEARANCE & BACK SONAR-WITH
main52119-76940i201508-201708
PAINT REQ.,F SPORT&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH
main52119-76942i201506-201508
PAINT REQ.,HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH
main52119-76944i201506-201508
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
main52119-76946i201506-201508
PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH
main52119-76948i201506-201508
PAINT REQ.,F SPORT&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH
main52119-76950supersedes 52119-76949i201708-201912
PAINT REQ.,HEADLAMP CLEANER-WITH
main52119-76952supersedes 52119-76949i201708-201912
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
main52119-76955supersedes 52119-76949i201708-201912
PAINT REQ.,HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH
main52119-76957supersedes 52119-76949i201708-201912
PAINT REQ.,F SPORT
main52119-76958supersedes 52119-76949i201708-201912
PAINT REQ.,F SPORT&HEADLAMP CLEANER-WITH
main52119-76960supersedes 52119-76952i201912-202108
F SPORT
main52119-76963supersedes 52119-76949i201708-201912
PAINT REQ.,F SPORT&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH
main52119-WY904i201012-201108
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE& BACK SONAR-WITH; PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH
main52119-WY905i201012-201108
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED
main52119-WY906i201012-201108
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH
main52119-WY907i201012-201108
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE
52119CCLIP, FRONT BUMPER COVER
main90467-05114×4i201312-202108
52125ABRACKET, FOG LAMP MOUNTING, RH
main52125-76010i201012-201312
main52125-76020supersedes 52125-76030i201111-201312
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE& BACK SONAR-WITH; KOREA SPEC&F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; KOREA SPEC&F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACKSONAR-WITH; KOREA SPEC&F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; KOREA SPEC&F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH
main52125-WY010i201012-201108
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE& BACK SONAR-WITH
52126DBRACKET, FOG LAMP MOUNTING, LH
main52126-76010i201012-201312
main52126-76020supersedes 52126-76030i201111-201312
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE& BACK SONAR-WITH; KOREA SPEC&F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; KOREA SPEC&F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACKSONAR-WITH; KOREA SPEC&F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; KOREA SPEC&F SPORT&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH
main52126-WY010i201012-201108
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE& BACK SONAR-WITH
52127DCOVER, FRONT BUMPER HOLE, RH
main52127-76901i201012-201312
main52127-76904i201708-202108
main52127-76902i201108-201111
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE); BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE)&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE); BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&HEAD LAMP-LED; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-WITH(*MRT),LWR=AEROBUMPER; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-WITH(*MRT),LWR=AEROBUMPER&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-WITH(*MRT),LWR=AEROBUMPER&HEAD LAMP-LED; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-WITH(*MRT),LWR=AEROBUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE); KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AEROBUMPER; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AEROBUMPER&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AEROBUMPER&HEAD LAMP-LED; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AEROBUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH
main52127-WY901i201012-201108
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE& BACK SONAR-WITH
52128CCOVER, FRONT BUMPER HOLE, LH
main52128-76901i201012-201312
main52128-76904i201708-202108
main52128-76902i201108-201111
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE); BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE)&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE); BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&HEAD LAMP-LED; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-WITH(*MRT),LWR=AEROBUMPER; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-WITH(*MRT),LWR=AEROBUMPER&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-WITH(*MRT),LWR=AEROBUMPER&HEAD LAMP-LED; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-WITH(*MRT),LWR=AEROBUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE); KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AEROBUMPER; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AEROBUMPER&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AEROBUMPER&HEAD LAMP-LED; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AEROBUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH
main52128-WY901i201012-201108
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE& BACK SONAR-WITH
52197EBRACKET, FRONT BUMPER SEAL
main52197-30040×2i201312-202108
52611ABSORBER, FRONT BUMPER ENERGY
main52611-76020i201012-201312
main52611-76040i201708-202108
main52611-76050i201312-201708
5301RADIATOR GRILLE
→ Go to FIG 53-01
5302HOOD & FRONT FENDER
→ Go to FIG 53-02
53112EGRILLE, RADIATOR, LOWER NO.1
main53112-76010i201012-201312
NO PAINT REQ.
main53102-76010i201108-201111
NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE); NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE); NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE); NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH
main53102-76080supersedes 53102-76020i201708-202108
F SPORT; F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)
main53112-76030i201108-201111
NO PAINT REQ.,KOREA SPEC&RADIATOR GRILLE-F SPORT; NO PAINT REQ.,KOREA SPEC&RADIATOR GRILLE-F SPORT&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&RADIATOR GRILLE-F SPORT&HEAD LAMP-LED; NO PAINT REQ.,KOREA SPEC&RADIATOR GRILLE-F SPORT&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,RADIATOR GRILLE-F SPORT; NO PAINT REQ.,RADIATOR GRILLE-F SPORT&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,RADIATOR GRILLE-F SPORT&HEAD LAMP-LED; NO PAINT REQ.,RADIATOR GRILLE-F SPORT&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,RADIATOR GRILLE-F SPORT(*MRT); NO PAINT REQ.,RADIATOR GRILLE-F SPORT(*MRT)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,RADIATOR GRILLE-F SPORT(*MRT)&HEAD LAMP-LED; NO PAINT REQ.,RADIATOR GRILLE-F SPORT(*MRT)&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH
main53112-76040i201108-201111
NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&HEAD LAMP-LED; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-WITH(*MRT),LWR=AERO BUMPER; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-WITH(*MRT),LWR=AERO BUMPER&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-WITH(*MRT),LWR=AERO BUMPER&HEAD LAMP-LED; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-WITH(*MRT),LWR=AERO BUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&HEAD LAMP-LED; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-LWR=AERO BUMPER&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH
main53112-76120supersedes 53112-76080i201312-201708
NO PAINT REQ.,F SPORT; NO PAINT REQ.,F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)
main53112-76200i201508-201606
NO PAINT REQ.,F SPORT SE PACKAGE(WITHOUT SEAT MEMORY); NO PAINT REQ.,F SPORT SE PACKAGE(WITHOUT SEAT MEMORY)&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)
main53112-WY010i201012-201108
NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&CLEARANCE& BACK SONAR-WITH; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED; NO PAINT REQ.,KOREA SPEC&BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&CLEARANCE & BACK SONAR-WITH
53384CCUSHION, HOOD, CENTER
main53384-75010×2i201012-201312
53879HRETAINER, FRONT FENDER LINER
main53879-30040×4i201012-201312
57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
main57013-76010i201012-201312
57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
main57014-76010i201012-201312
8101HEADLAMP
→ Go to FIG 81-01
8505HEADLAMP CLEANER
→ Go to FIG 85-05
89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE
main89348-30030-A0×2i201108-201312
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077
main89348-30030-A5×2i201208-201312
CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083
main89348-30030-B0×2i201108-201312
CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9
main89348-30030-B6×2i201208-201312
CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER ME.,1J4
main89348-30030-B8×2i201108-201208
CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1
main89348-30030-C0×2i201108-201312
CLEARANCE & BACK SONAR-WITH,BLACK,212
main89348-30030-C1×2i201108-201312
CLEARANCE & BACK SONAR-WITH,BLACK OPAL MC.,214
main89348-30030-D2×2i201108-201312
CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1
main89348-30030-E1×2i201108-201312
CLEARANCE & BACK SONAR-WITH,FIRE AGATE M.M.,4V3
main89348-30030-F0×2i201108-201312
CLEARANCE & BACK SONAR-WITH,FLARE YELLOW M.M.,5B1
main89348-30030-J5×2i201108-201208
CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9
main89348-30030-J6×2i201108-201312
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1
main89348-33110×2supersedes 89348-78020i201312-201508
CLEARANCE & BACK SONAR-WITH
main89348-64020-A1×2i201012-201107
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077
main89348-64020-B2×2i201012-201107
CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1
main89348-64020-B6×2i201012-201107
CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0
main89348-64020-C1×2i201012-201107
CLEARANCE & BACK SONAR-WITH,BLACK,212
main89348-64020-C2×2i201012-201107
CLEARANCE & BACK SONAR-WITH,BLACK OPAL MC.,214
main89348-64020-D0×2i201012-201107
CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1
main89348-64020-E1×2i201012-201107
CLEARANCE & BACK SONAR-WITH,FIRE AGATE M.M.,4V3
main89348-64020-F0×2i201012-201107
CLEARANCE & BACK SONAR-WITH,FLARE YELLOW M.M.,5B1
main89348-64020-J1×2i201012-201107
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1
main89348-64020-J2×2i201012-201107
CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9
main89348-78020×2i201508-201912
CLEARANCE & BACK SONAR-WITH
4774950090CLIP, PIN HOLD
main47749-50090
9011910465
main90119-10465
9015960393
main90159-60393
9015960431
main90159-60431
9016750063
main90167-50063
9017906349
main90179-06349
9018906193
main90189-06193
9046707201
main90467-07201
91674A1028
main91674-A1028

34 parts on this diagram · 6 diagrams in section
