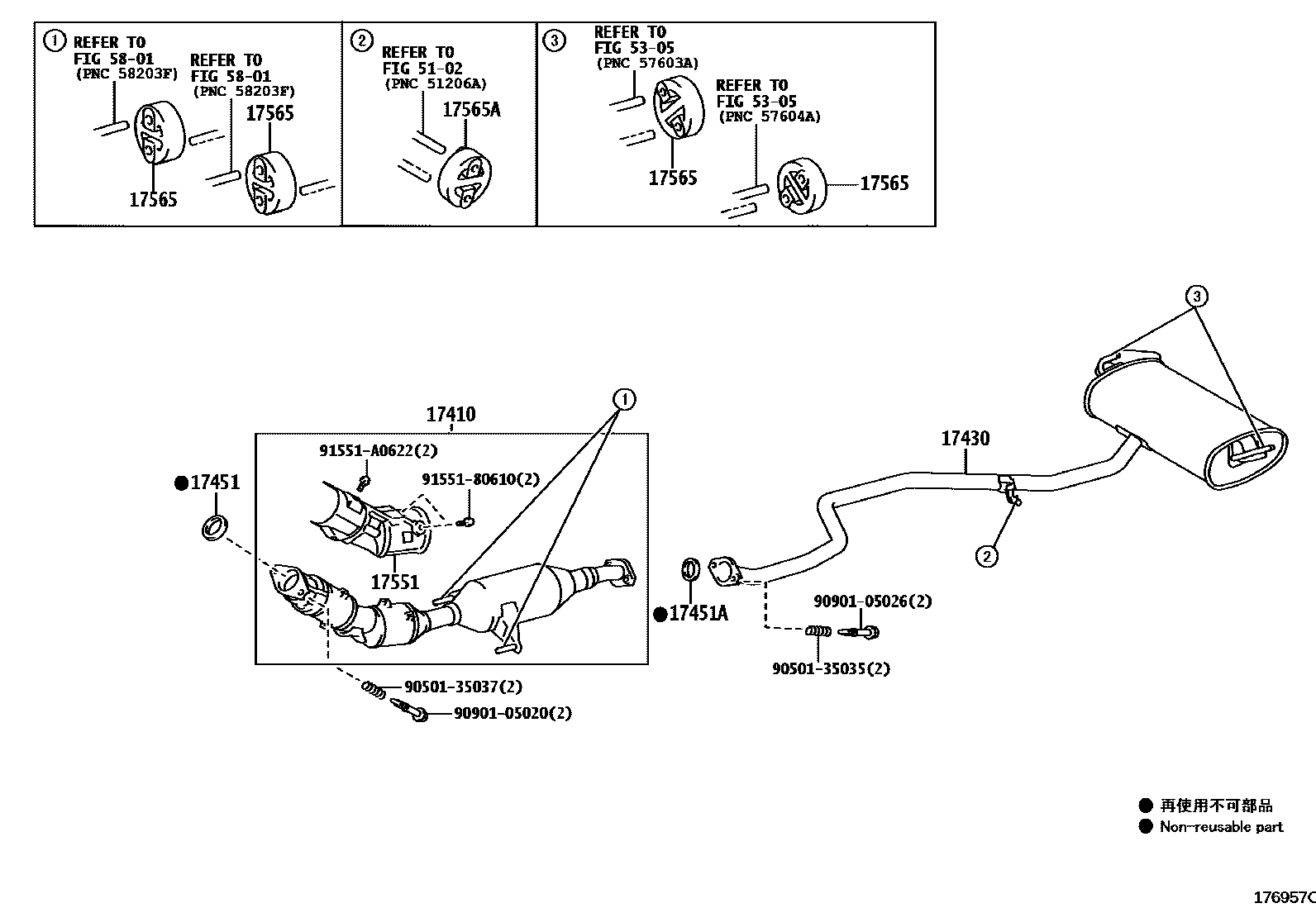

EXHAUST PIPE

0001 1 0002 1W(*EHRS) 0003 1W(*EHRS)

17410PIPE ASSY, EXHAUST, FRONT

main17410-37510supersedes 17410-37520i2ZRFXE..ZWA10..B; 2ZRFXE..ZWA10..E201012-201112

*114=*412; *114=*412,COLD AREA SPEC

main17410-37511i2ZRFXE..ZWA10..B; 2ZRFXE..ZWA10..E201201-201303

*114=*412; *114=*412,COLD AREA SPEC

main17410-37512i2ZRFXE..ZWA10..B; 2ZRFXE..ZWA10..E201304-201312

*114=*412; *114=*412,COLD AREA SPEC

main17410-37513i2ZRFXE..ZWA10201410-202108

*114=*412,COLD AREA SPEC

17430PIPE ASSY, EXHAUST, TAIL

main17430-37460i2ZRFXE..ZWA10201012-201312

main17430-37470i2ZRFXE..ZWA10..B201012-201312

MEXICO SPEC

17451GASKET, EXHAUST PIPE

main17451-28040i2ZRFXE..ZWA10201012-201312

17451AGASKET, EXHAUST PIPE, NO.2

main17451-23042i2ZRFXE..ZWA10201012-201312

17551INSULATOR, EXHAUST PIPE HEAT, NO.1

main17551-37040i2ZRFXE..ZWA10201012-201312

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040×4i2ZRFXE..ZWA10201012-201312

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22030i2ZRFXE..ZWA10201312-202108

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9155180610

main91551-80610

91551A0622

main91551-A0622

16 parts on this diagram · 3 diagrams in section
