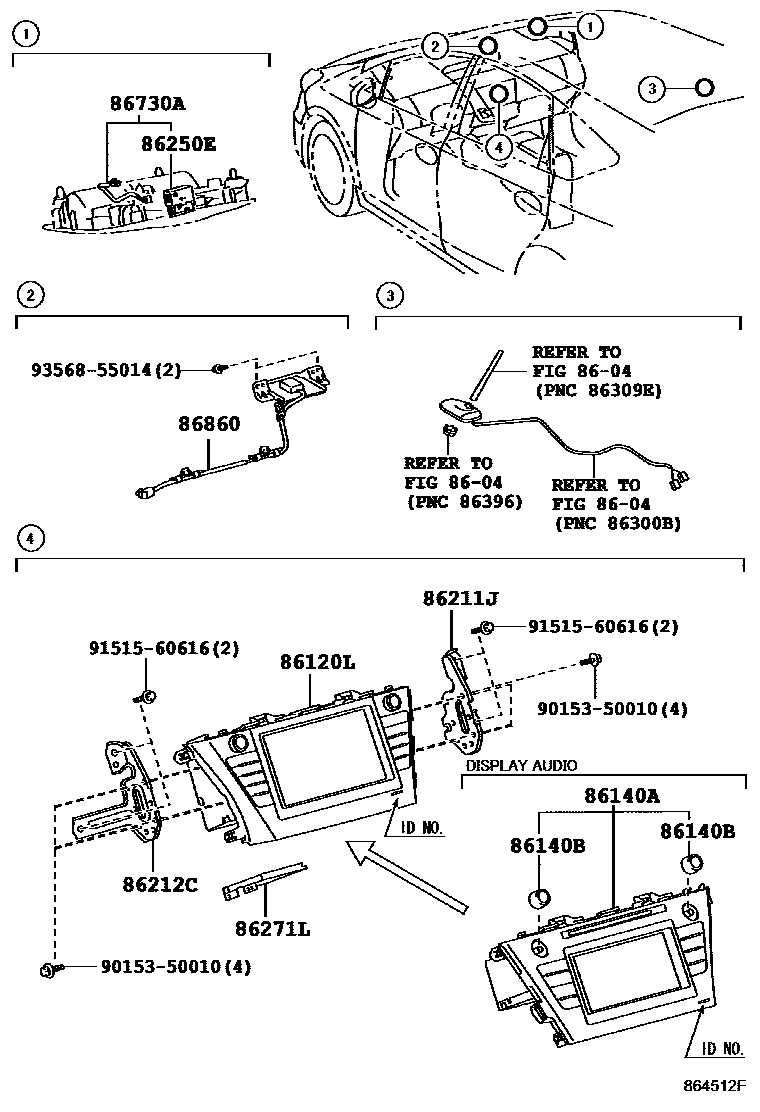

NAVIGATION & FRONT MONITOR DISPLAY

8604ANTENNA

86120LRECEIVER ASSY, NAVIGATION

main86804-47300i201605-201811

PANASONIC,ID=510165; PANASONIC,ID=510165,AUDIO-*DA & 6SPEAKER & *BT; PANASONIC,ID=510165,US GRADE2; PANASONIC,ID=510165,US GRADE2.5

main86804-47030supersedes 86804-47250i201109-201411

DENSO,ID=E7034,AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

main86804-47040supersedes 86804-47260i201109-201411

DENSO,ID=E7035,AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

main86804-47230supersedes 86804-47250i201411-201505

PANASONIC,ID=510059,AUDIO-AVN & JBL & 8SPEAKER & *BT

main86804-47231supersedes 86804-47251i201506-201605

PANASONIC,ID=510059,AUDIO-AVN & JBL & 8SPEAKER & *BT

main86804-47240supersedes 86804-47260i201411-201505

PANASONIC,ID=510060,AUDIO-AVN & JBL & 8SPEAKER & *BT

main86804-47241supersedes 86804-47261i201506-201605

PANASONIC,ID=510060,AUDIO-AVN & JBL & 8SPEAKER & *BT

main86804-47250i201411-201505

PANASONIC,ID=510057; PANASONIC,ID=510057,AUDIO-*DA & 6SPEAKER & *BT; PANASONIC,ID=510057,AUDIO-AUDIO LESS & 6SPEAKER & AUDIO LESS COVER

main86804-47251supersedes 86804-47250i201506-201605

PANASONIC,ID=510057; PANASONIC,ID=510057,AUDIO-*DA & 6SPEAKER & *BT; PANASONIC,ID=510057,AUDIO-AUDIO LESS & 6SPEAKER & AUDIO LESS COVER

main86804-47260i201411-201505

PANASONIC,ID=510058; PANASONIC,ID=510058,AUDIO-*DA & 6SPEAKER & *BT; PANASONIC,ID=510058,US GRADE2; PANASONIC,ID=510058,US GRADE2.5

main86804-47261supersedes 86804-47260i201506-201605

PANASONIC,ID=510058; PANASONIC,ID=510058,AUDIO-*DA & 6SPEAKER & *BT; PANASONIC,ID=510058,US GRADE2; PANASONIC,ID=510058,US GRADE2.5

main86804-47290supersedes 86804-47250i201605-201711

PANASONIC,ID=510164; PANASONIC,ID=510164,AUDIO-*DA & 6SPEAKER & *BT; PANASONIC,ID=510164,AUDIO-AUDIO LESS & 6SPEAKER & AUDIO LESS COVER

main86804-47310supersedes 86804-47290i201605-201711

PANASONIC,ID=510166,AUDIO-AVN & JBL & 8SPEAKER & *BT

main86804-47320i201605-201712

PANASONIC,ID=510167,AUDIO-AVN & JBL & 8SPEAKER & *BT

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-47020i201109-201411

PANASONIC,ID=57011,AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS)

main86140-47040i201109-201411

PANASONIC,ID=57012,AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS)

main86140-47210supersedes 86140-47010i201411-201505

PANASONIC,ID=510056,AUDIO-*DA & 6SPEAKER & *BT

main86140-47211i201506-201605

PANASONIC,ID=510056,AUDIO-*DA & 6SPEAKER & *BT

main86140-47450i201712-201811

PANASONIC,ID=510163,US GRADE2; PANASONIC,ID=510163,US GRADE2.5

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90010-24150×2i201109-201411

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

main90010-24176×2i201712-201811

US GRADE2; US GRADE2.5

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-47080i201109-201411

main86211-47120i201411-201811

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-47080i201109-201411

main86212-47120i201411-201811

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52030i201411-201811

86271DISC, DISC PLAYER

main86271-35012supersedes 86271-35021i201411-201507

AUDIO-*DA & 6SPEAKER & *BT; AUDIO-AUDIO LESS & 6SPEAKER & AUDIO LESS COVER; US GRADE2; US GRADE2.5

main86271-35013supersedes 86271-35021i201507-201607

AUDIO-*DA & 6SPEAKER & *BT; AUDIO-AUDIO LESS & 6SPEAKER & AUDIO LESS COVER; US GRADE2; US GRADE2.5

main86271-35014supersedes 86271-35021i201608-201707

AUDIO-*DA & 6SPEAKER & *BT; AUDIO-AUDIO LESS & 6SPEAKER & AUDIO LESS COVER; US GRADE2; US GRADE2.5

main86271-35015i201708-201711

AUDIO-AUDIO LESS & 6SPEAKER & AUDIO LESS COVER

main86271-35021i201808-201811

AUDIO-*DA & 6SPEAKER & *BT; US GRADE2; US GRADE2.5

86271LHARD DISC

main86271-47151i201109-201206

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

main86271-47152i201207-201307

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

main86271-47153i201308-201406

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

main86271-47154i201407-201411

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

86730AMICROPHONE ASSY, TELEPHONE

main86730-47040i201109-201411

86860ANTENNA ASSY, NAVIGATION

main86860-47090i201109-201411

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH

main86860-47100i201707-201711

US GRADE4&PRE-COLLISION SYSTEM-WITH; US GRADE5&PRE-COLLISION SYSTEM-WITH

9015350010

main90153-50010

9151560616

main91515-60616

9356855014

main93568-55014

14 parts on this diagram · 2 diagrams in section
