CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

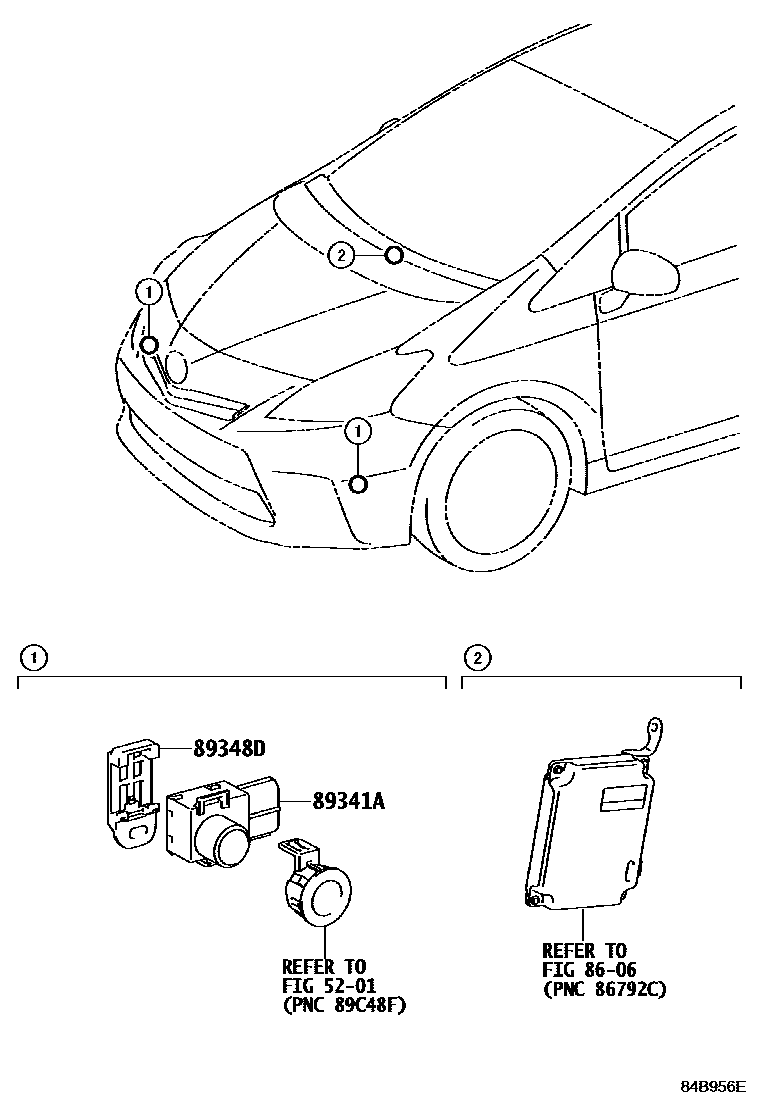

89341ASENSOR, ULTRASONIC, NO.1

main89341-28480-A0×2i201210-201411

LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,WHITE PEARL CS.,070

main89341-28480-A1×2i201210-201411

LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,SUPER WHITE 2,040

main89341-28480-B1×2i201210-201411

LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,SILVER ME.,1F7

main89341-28480-B5×2i201210-201411

LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,GRAY ME.,1G3

main89341-28480-C0×2i201210-201411

LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK,202

main89341-28480-D1×2i201109-201210

LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,RED M.M.,3R3

main89341-28480-H2×2i201109-201210

LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,CLEAR STREAM ME.,787

main89341-28480-H3×2i201210-201411

LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,FROSTY GREEN MC.,781; LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,FROSTY GREEN MC.,781

main89341-28480-J2×2i201109-201210

LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,DK.BLUE MC.,8T5

89348DCLIP, ULTRASONIC SENSOR

main89348-33090×2i201109-201210

LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

4 parts on this diagram · 1 diagram in section
