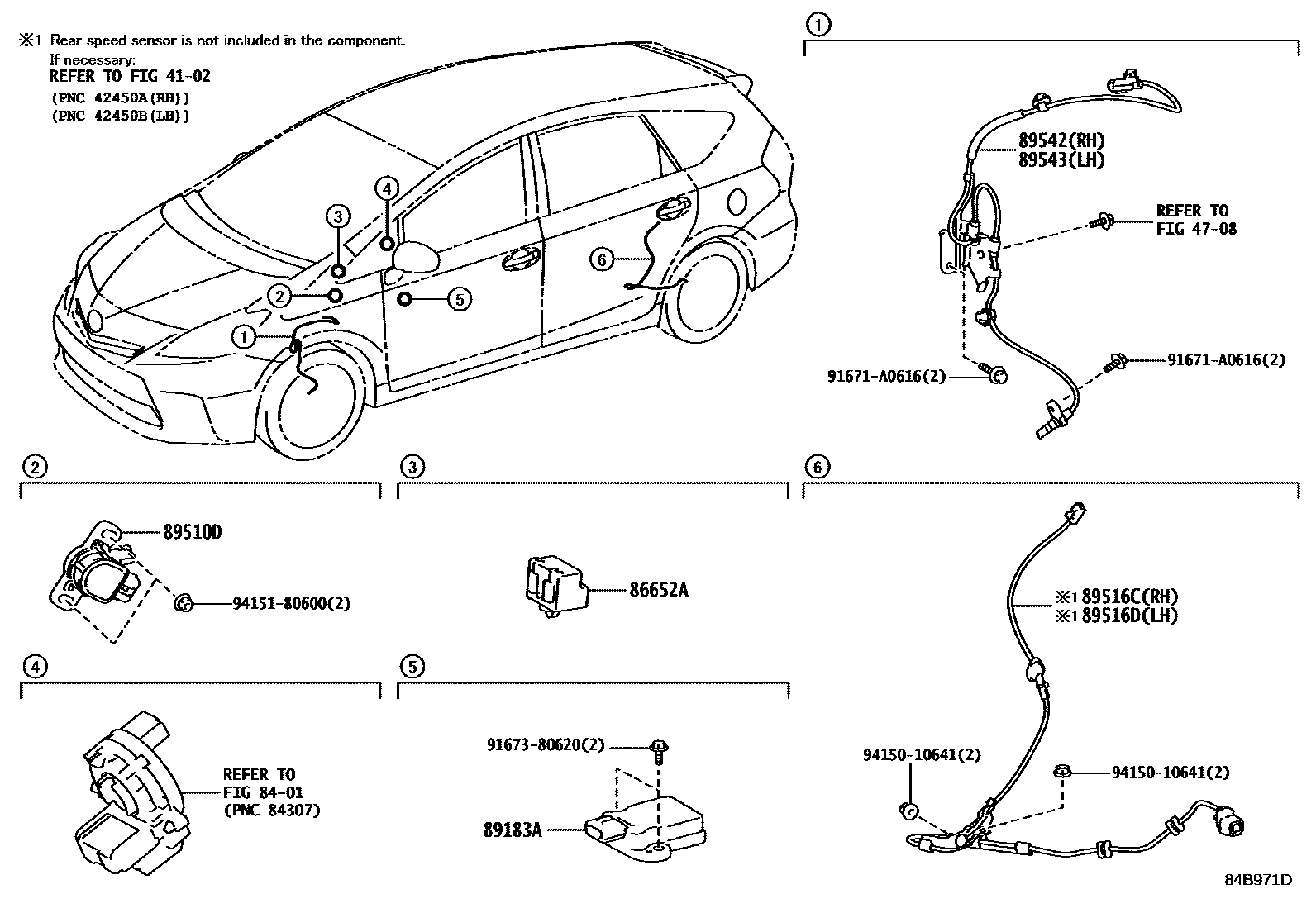

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iZVW41201712-201811

89183ASENSOR, YAWRATE

main89183-48030iZVW41201109-201411

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47050iZVW41201109-201411

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-47090iZVW41201109-201411

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-47100iZVW41201109-201411

89542SENSOR, SPEED, FRONT RH

main89542-12080iZVW41201109-201411

89543SENSOR, SPEED, FRONT LH

main89543-12080iZVW41201109-201411

91671A0616

main91671-A0616

9167380620

main91673-80620

9415010641

main94150-10641

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
