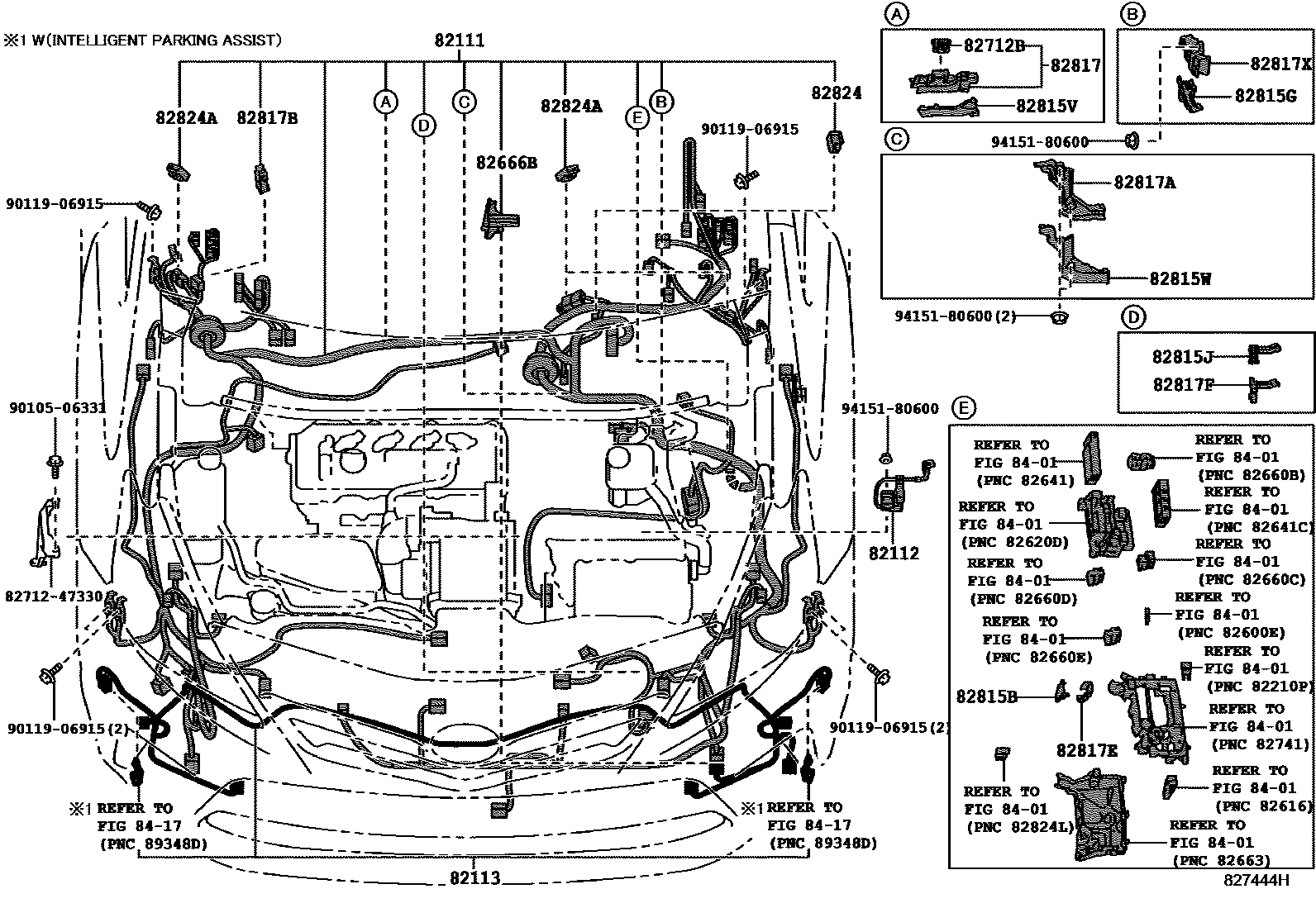

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
DAYTIME RUNNING LIGHT SYSTEM-WITH
DAYTIME RUNNING LIGHT SYSTEM-WITH
LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH& W(SDARS); LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH; LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS); LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH; LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH; LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH
LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH& W(SDARS); LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH; LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS); LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH; LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH; LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH
LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS); LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH; LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH
LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS); LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH; LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH
LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS); LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH; LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH
US GRADE4&CRUISE CONTROL-WITH(MICRO WAVE TYPE)
US GRADE5&CRUISE CONTROL-WITH(MICRO WAVE TYPE)
US GRADE5
KOREA SPEC
US GRADE4&CRUISE CONTROL-WITH(MICRO WAVE TYPE)
US GRADE4&CRUISE CONTROL-WITH(MICRO WAVE TYPE)
US GRADE5&CRUISE CONTROL-WITH(MICRO WAVE TYPE)
US GRADE5
KOREA SPEC
US GRADE4&CRUISE CONTROL-WITH(MICRO WAVE TYPE)
US GRADE4; US GRADE5
82112WIRE, ENGINE ROOM, NO.2
82113WIRE, ENGINE ROOM, NO.3
DAYTIME RUNNING LIGHT SYSTEM-WITH; LX-TOURING PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS); LX-TOURING PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER &BLUETOOTH
LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH; LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH
LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH
US GRADE5
KOREA SPEC
82666BHOLDER, CONNECTOR NO.3
82712BSUPPORT, WIRING HARNESS
82815BCOVER, WIRING HARNESS PROTECTOR
82815GCOVER, WIRING HARNESS PROTECTOR NO.5
82815JCOVER, WIRING HARNESS PROTECTOR, NO.7
82815VCOVER, WIRING HARNESS PROTECTOR, NO.1
82815WCOVER, WIRING HARNESS PROTECTOR, NO.2
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82817BPROTECTOR, WIRING HARNESS, NO.3
82817EPROTECTOR, WIRING HARNESS, NO.6
82817FPROTECTOR, WIRING HARNESS, NO.7
82817XPROTECTOR, WIRING HARNESS, NO.17
82824CONNECTOR, WIRING HARNESS
82824ACONNECTOR, WIRING HARNESS
8401SWITCH & RELAY & COMPUTER
8417CLEARANCE & BACK SONAR
8271247330CLAMP, WIRING HARNESS
main82712-47330
9010506331
main90105-06331
9011906915
main90119-06915
9415180600
main94151-80600
24 parts on this diagram · 13 diagrams in section
