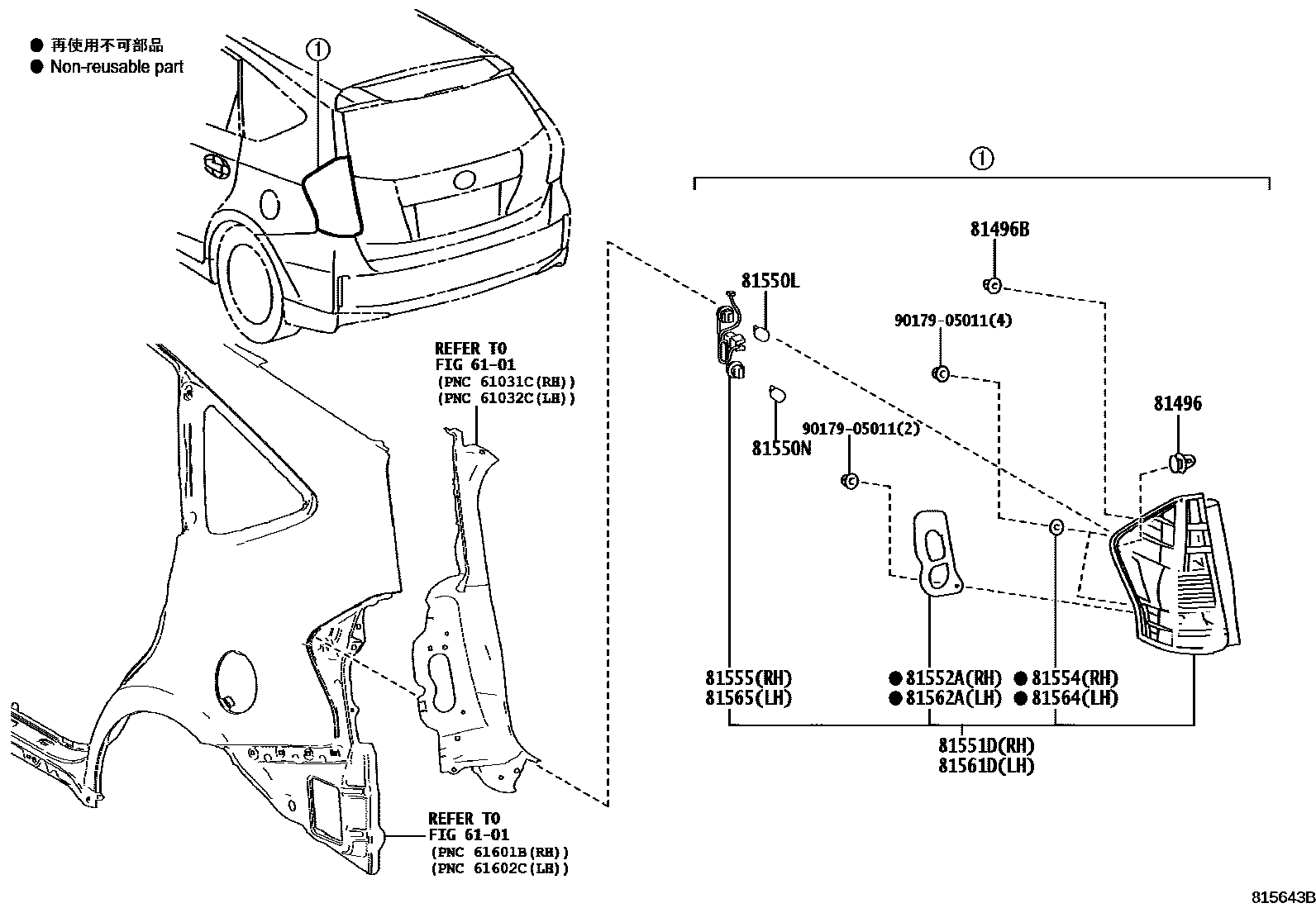

REAR COMBINATION LAMP

0001 1 0002 1

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-21010iZVW41201109-201811

81496BGUIDE, REAR LAMP

main81496-52020iZVW41201109-201811

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iZVW41201109-201411

main90981-15011iZVW41201411-201811

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-13043iZVW41201109-201411

main90981-13043iZVW41201411-201811

12V 21W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-47160iZVW41201109-201411

main81551-47270iZVW41201411-201606

sub81551-47271

main81551-47271iZVW41201606-201706

sub81551-47272

main81551-47272iZVW41201706-201811

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-47140iZVW41201109-201411

main81552-47250iZVW41201411-201811

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-47110iZVW41201109-201811

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-47140iZVW41201109-201606

main81555-47271iZVW41201606-201811

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-47160iZVW41201109-201411

main81561-47270iZVW41201411-201606

sub81561-47271

main81561-47271iZVW41201606-201706

sub81561-47272

main81561-47272iZVW41201706-201811

81562AGASKET, REAR COMBINATION LAMP, LH

main81562-47140iZVW41201109-201411

main81562-47250iZVW41201411-201811

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-47110iZVW41201109-201811

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-47140iZVW41201109-201606

main81555-47271iZVW41201606-201811

9017905011

main90179-05011

14 parts on this diagram · 2 diagrams in section
