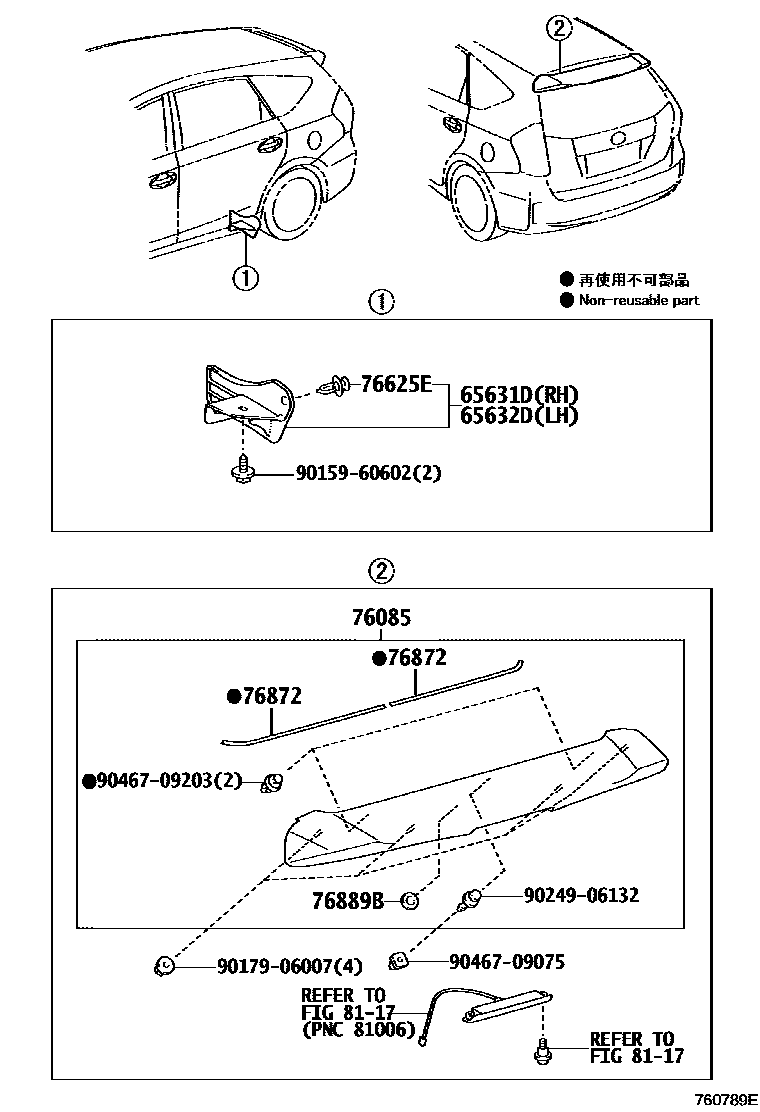

MUDGUARD & SPOILER
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
76085SPOILER SUB-ASSY, REAR
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
RED M.M.,3R3
CLEAR STREAM ME.,787
FROSTY GREEN MC.,781
DK. BLUE MC.,8T5
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
RED M.M.,3R3
SUPER RED 5,3P0
DK. RED M.M.,3Q3
DARK SHERRY M.M.,4W4
CLEAR STREAM ME.,787
FROSTY GREEN MC.,781
DK. BLUE MC.,8T5
76872PROTECTOR, REAR SPOILER, NO.1
76889BSEAL, REAR SPOILER, NO.1
8117CENTER STOP LAMP
9015960602
main90159-60602
9017906007
main90179-06007
9024906132
main90249-06132
9046709075
main90467-09075
9046709203
main90467-09203
12 parts on this diagram · 2 diagrams in section
