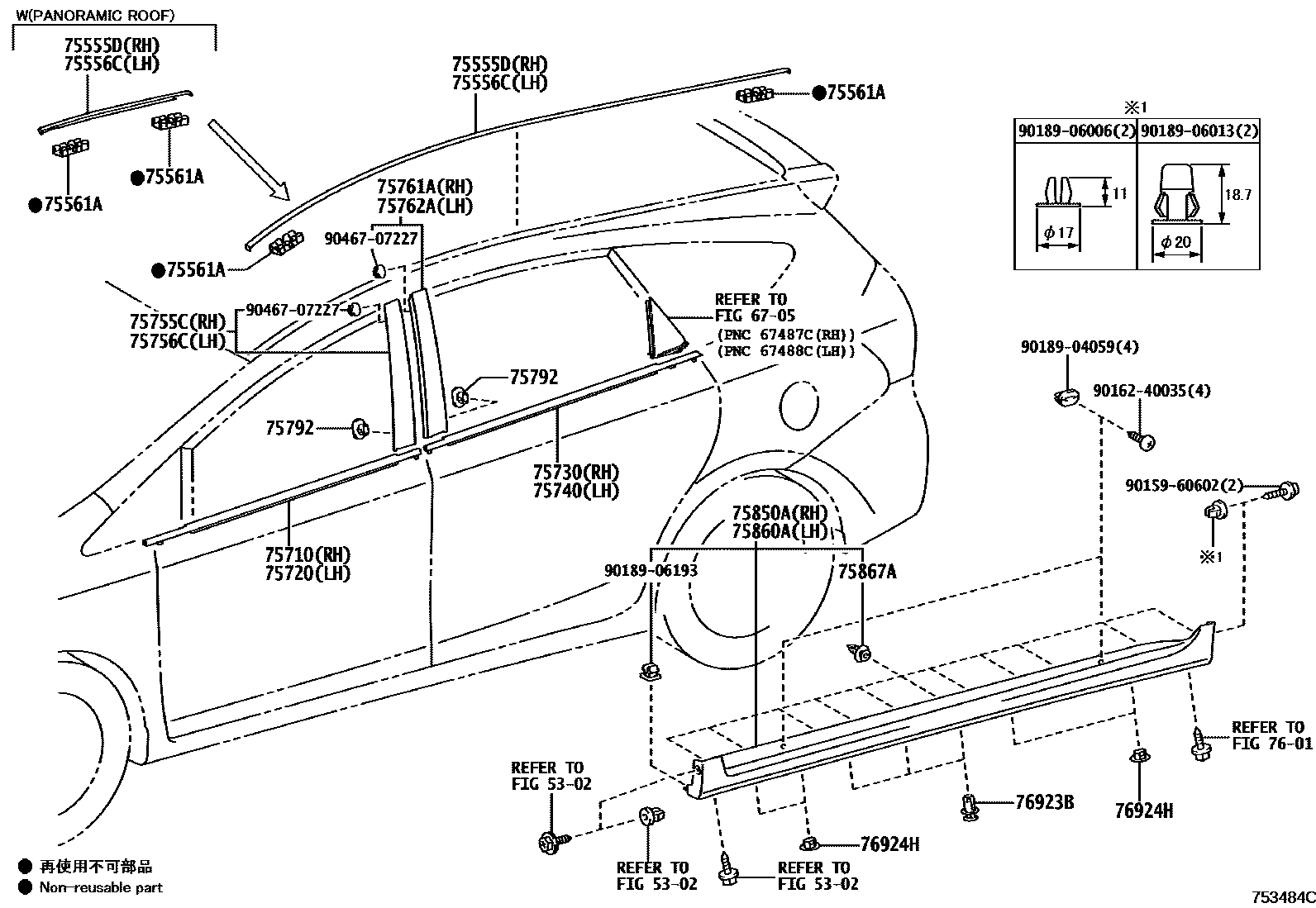

SIDE MOULDING
5302HOOD & FRONT FENDER
6705REAR DOOR PANEL & GLASS
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
ROOF-PANORAMIC ROOF(FIXED)
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
PANORAMIC ROOF-WITH(FIXED)
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75792CLIP, DOOR WINDOW FRAME MOULDING
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
RED M.M.,3R3
SUPER RED 5,3P0
DK. RED M.M.,3Q3
DARK SHERRY M.M.,4W4
CLEAR STREAM ME.,787
FROSTY GREEN MC.,781
DK.BLUE MC.,8T5
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
RED M.M.,3R3
SUPER RED 5,3P0
DK. RED M.M.,3Q3
DARK SHERRY M.M.,4W4
CLEAR STREAM ME.,787
FROSTY GREEN MC.,781
DK.BLUE MC.,8T5
75867ACLIP, ROCKER PANEL MOULDING
7601MUDGUARD & SPOILER
76923BRETAINER, SIDE MUDGUARD
76924HRETAINER, SIDE MUDGUARD, NO.2
9015960602
main90159-60602
9016240035
main90162-40035
9018904059
main90189-04059
9018906006
main90189-06006
9018906013
main90189-06013
9018906193
main90189-06193
9046707227
main90467-07227
27 parts on this diagram · 1 diagram in section
