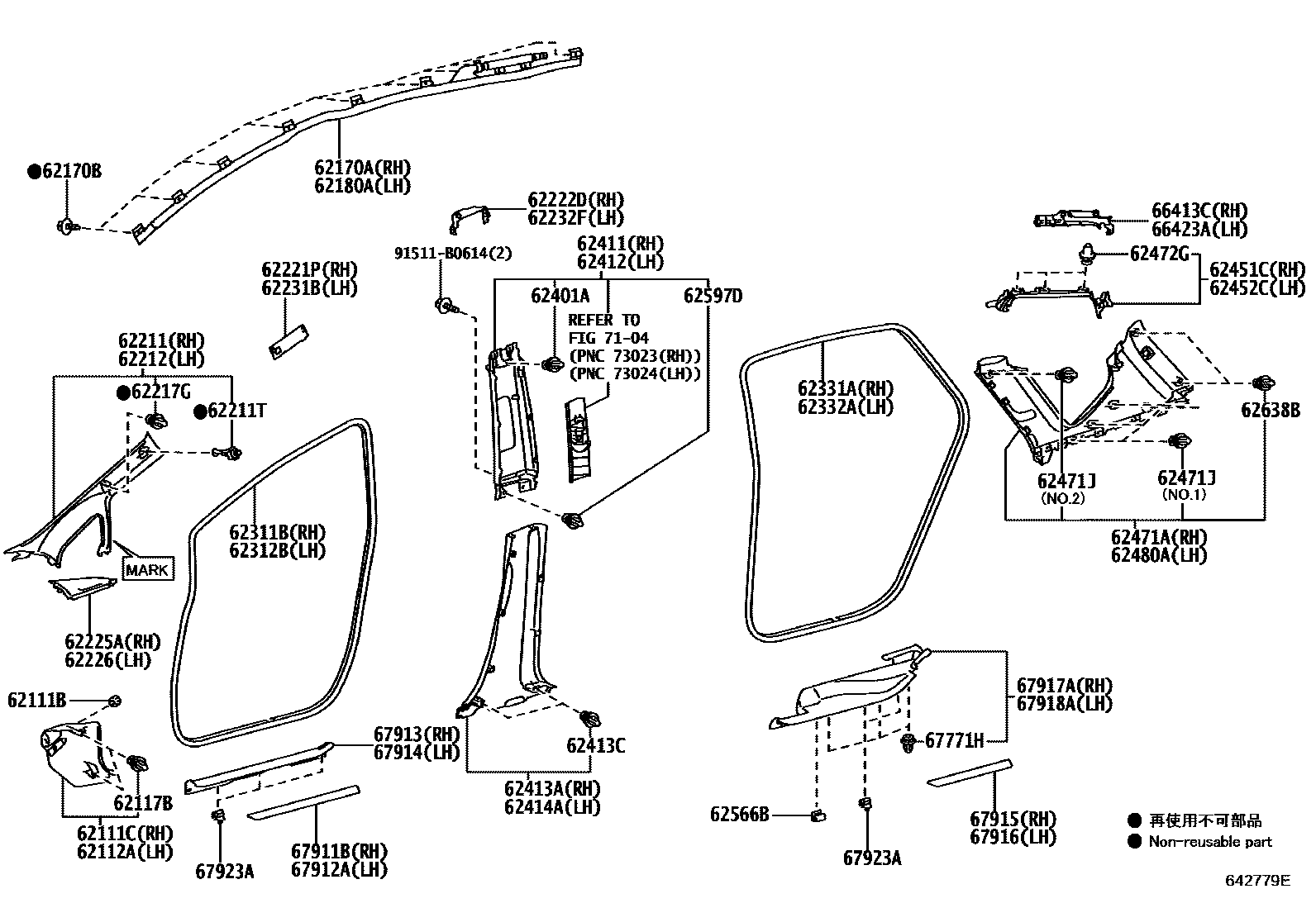

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111BCLIP(FOR COWL SIDE TRIM)
BLACK
62111CBOARD, COWL SIDE TRIM, RH
62112ATRIM SUB-ASSY, COWL SIDE, LH
MD.GRAY,TRIM1#
GREGE,TRIM4#
AQUA,TRIM6#
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
LT. GRAY,TRIM1#,2#,4#,MARK 62211-47132
LT. GRAY,TRIM1#,2#,4#,MARK 62211-47170
62211TCLIP(FOR FRONT PILLAR GARNISH)
RH
LH
62212GARNISH, FRONT PILLAR, LH
LT. GRAY,TRIM1#,2#,4#,MARK 62212-47132
LT. GRAY,TRIM1#,2#,4#,MARK 62212-47170
62217GCLIP, FRONT PILLAR GARNISH
62221PSPACER, FRONT PILLAR, NO.1 RH
62222DSPACER, FRONT PILLAR, NO.2 RH
62225AGARNISH, FRONT PILLAR, LOWER RH
BLACK,TRIM1#,4#,6#
BLACK,TRIM1#,2#,4#
62226GARNISH, FRONT PILLAR, LOWER LH
BLACK,TRIM1#,4#,6#
BLACK,TRIM1#,2#,4#
62231BSPACER, FRONT PILLAR, NO.1 LH
62232FSPACER, FRONT PILLAR, NO.2 LH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
LT.GRAY,TRIM1#,4#
LT.GRAY,TRIM4#,6#
MD.GRAY,TRIM1#
BLACK,TRIM2#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
LT.GRAY,TRIM4#,6#
LT.GRAY,TRIM1#,4#
MD.GRAY,TRIM1#
BLACK,TRIM2#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
LT.GRAY,TRIM4#,6#
LT.GRAY,TRIM1#,4#
MD.GRAY,TRIM1#
BLACK,TRIM2#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
LT.GRAY,TRIM4#,6#
LT.GRAY,TRIM1#,4#
MD.GRAY,TRIM1#
BLACK,TRIM2#
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411GARNISH, CENTER PILLAR, RH
LT.GRAY,TRIM1#,4#,6#
LT.GRAY,TRIM1#,2#,4#
62412GARNISH, CENTER PILLAR, LH
LT.GRAY,TRIM1#,4#,6#
LT.GRAY,TRIM1#,2#,4#
62413AGARNISH, CENTER PILLAR, LOWER RH
MD.GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
AQUA,TRIM6#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
MD.GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
AQUA,TRIM6#
62451CGARNISH, ROOF SIDE RAIL, REAR RH
LT.GRAY,TRIM1#,4#,6#
LT.GRAY,TRIM1#,2#,4#
62452CGARNISH, ROOF SIDE RAIL, REAR LH
LT.GRAY,TRIM1#,4#,6#
LT.GRAY,TRIM1#,2#,4#
62471AGARNISH, ROOF SIDE, INNER RH
LT.GRAY,TRIM1#,4#,6#
LT.GRAY,TRIM1#,2#,4#
62471JCLIP (FOR ROOF SIDE GARNISH)
NO.1 & NO.2
NO.2
NO.1
NO.1 & NO.2
62472GCLIP (FOR ROOF SIDE GARNISH)
62480AGARNISH ASSY, ROOF SIDE, INNER LH
LT.GRAY,TRIM1#,4#,6#
LT.GRAY,TRIM1#,2#,4#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62597DCLIP
62638BCLIP
66413CSPACER, SIDE RAIL, FRONT RH
66423ASPACER, SIDE RAIL, FRONT LH
67771HRETAINER, DOOR TRIM
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913PLATE, FRONT DOOR SCUFF, RH
MD.GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
AQUA,TRIM6#
67914PLATE, FRONT DOOR SCUFF, LH
MD.GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
AQUA,TRIM6#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917APLATE, REAR DOOR SCUFF, RH
MD.GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
AQUA,TRIM6#
67918APLATE, REAR DOOR SCUFF, LH
MD.GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
AQUA,TRIM6#
67923ACLAMP, DOOR SCUFF PLATE, NO.1
7104
91511B0614
main91511-B0614
50 parts on this diagram · 1 diagram in section
