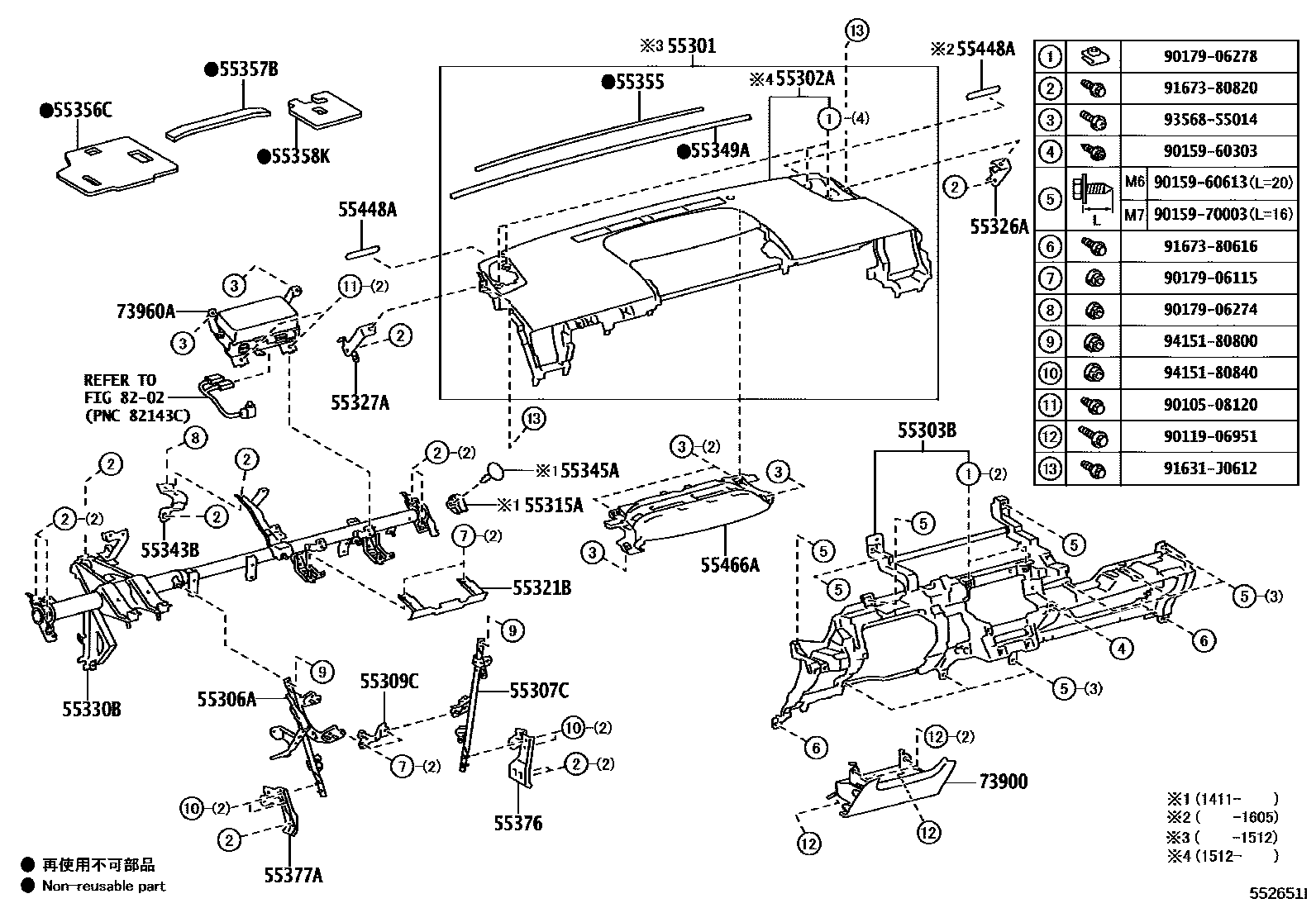

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55300-47120-C0iZVW41201411-201604

BLACK,TRIM1#,2#,4#

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-47100-C0iZVW41201512-201605

BLACK,TRIM1#,2#,4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-47060-B0iZVW41201109-201411

MD.GRAY,TRIM1#

main55303-47060-B1iZVW41201411-201811

GRAY,TRIM1#

main55303-47060-C0iZVW41201411-201809

BLACK,TRIM2#

main55303-47060-E0iZVW41201411-201809

GREGE,TRIM4#

main55303-47060-G0iZVW41201109-201411

AQUA,TRIM6#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-47091iZVW41201109-201411

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-47040iZVW41201109-201411

55309CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER

main55309-47020iZVW41201109-201411

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-47070iZVW41201411-201811

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-47050iZVW41201109-201411

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-47050iZVW41201109-201411

55327ASTAY, INSTRUMENT PANEL, NO.2

main55327-47070iZVW41201109-201411

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-47131iZVW41201109-201202

main55330-47132iZVW41201203-201206

main55330-47133iZVW41201207-201411

main55330-47134iZVW41201411-201601

main55330-47135iZVW41201602-201811

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-47030iZVW41201109-201411

55345ACLIP, INSTRUMENT PANEL, NO.1

main90467-05164-B0iZVW41201411-201811

LT.GRAY

55349ACUSHION, INSTRUMENT PANEL

main55349-47040iZVW41201605-201811

main55349-47070iZVW41201109-201411

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-47040iZVW41201109-201112

main55355-47080iZVW41201411-201604

main55355-47120iZVW41201605-201811

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-47060iZVW41201411-201811

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-47080iZVW41201109-201411

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-47070iZVW41201411-201811

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-47050iZVW41201109-201411

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-47040iZVW41201109-201411

55448ACUSHION, INSTRUMENT PANEL FINISH, NO.1

main55448-47080×2iZVW41201109-201411

55466ARETAINER, INSTRUMENT PANEL SAFETY PAD

main55466-47040iZVW41201411-201811

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-47031-B0iZVW41201109-201411

MD.GRAY,TRIM1#

main73900-47031-B1iZVW41201411-201811

GRAY,TRIM1#

main73900-47031-C0iZVW41201411-201811

BLACK,TRIM2#

main73900-47031-E0iZVW41201109-201411

GREGE,TRIM4#

main73900-47031-G0iZVW41201109-201411

AQUA,TRIM6#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-47090iZVW41201109-201411

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508120

main90105-08120

9011906951

main90119-06951

9015960303

main90159-60303

9015960613

main90159-60613

9015970003

main90159-70003

9017906115

main90179-06115

9017906274

main90179-06274

9017906278

main90179-06278

91631J0612

main91631-J0612

9167380616

main91673-80616

9167380820

main91673-80820

9356855014

main93568-55014

9415180800

main94151-80800

9415180840

main94151-80840

39 parts on this diagram · 4 diagrams in section
