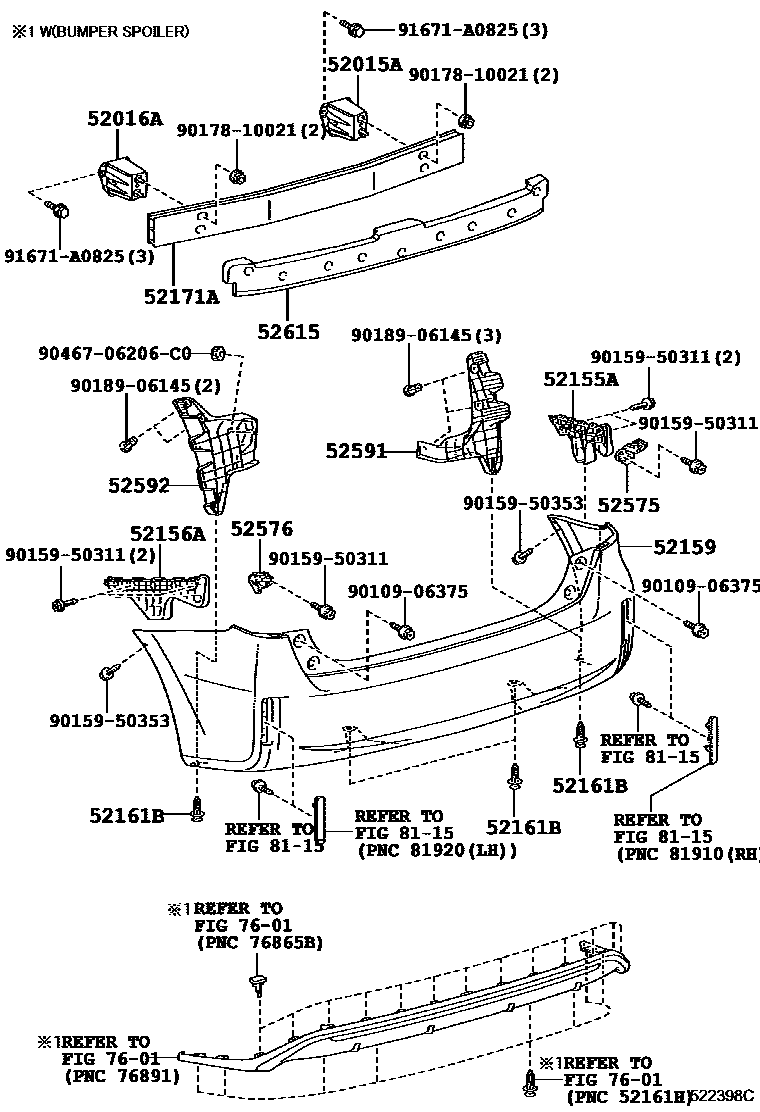

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-47060iZVW41201109-201411

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-47040iZVW41201109-201411

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-47010iZVW41201109-201411

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-47010iZVW41201109-201411

52159COVER, REAR BUMPER

main52159-47909supersedes 52159-47912iZVW41201411-201811

US GRADE2

52161BPIECE, REAR BUMPER

main52161-16010×4iZVW41201109-201411

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-47020iZVW41..USA201109-201210

main52171-47070iZVW41..CND201109-201411

52575RETAINER, REAR BUMPER SIDE, RH

main52575-47030iZVW41201109-201411

52576RETAINER, REAR BUMPER SIDE, LH

main52576-47030iZVW41201109-201411

52591SEAL, REAR BUMPER SIDE, RH

main52591-47030iZVW41201109-201411

52592SEAL, REAR BUMPER SIDE, LH

main52592-47030iZVW41201109-201411

52615ABSORBER, REAR BUMPER ENERGY

main52615-47060iZVW41201109-201411

main52615-47080iZVW41201411-201811

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9010906375

main90109-06375

9015950311

main90159-50311

9015950353

main90159-50353

9017810021

main90178-10021

9018906145

main90189-06145

9046706206C0

main90467-06206C0

91671A0825

main91671-A0825

21 parts on this diagram · 1 diagram in section
