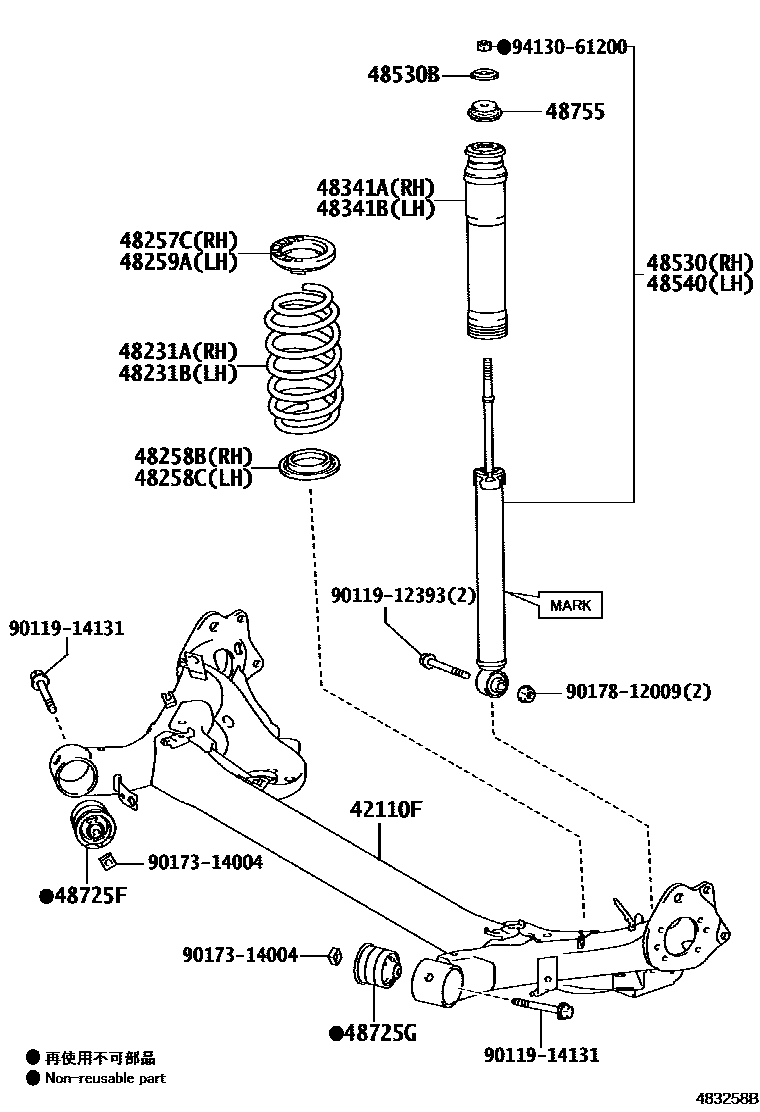

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42101-64010iZVW41201109-201411

48231ASPRING, COIL, REAR RH

main48231-47270iZVW41201109-201411

48231BSPRING, COIL, REAR LH

main48231-47270iZVW41201109-201411

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-52010iZVW41201109-201411

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-52030iZVW41201109-201411

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-52030iZVW41201109-201411

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-52010iZVW41201109-201411

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-47040iZVW41201109-201411

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-47040iZVW41201109-201411

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80595iZVW41201210-201309

MARK 48530-47211

main48530-80600iZVW41201109-201210

MARK 48530-47210

main48530-80690iZVW41201309-201312

MARK 48530-47212

main48530-80731iZVW41201411-201806

MARK 48530-47213

main48530-80746iZVW41201806-201811

MARK 48530-47390

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02159×2iZVW41201109-201411

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80595iZVW41201210-201309

MARK 48530-47211

main48530-80600iZVW41201109-201210

MARK 48530-47210

main48530-80690iZVW41201309-201312

MARK 48530-47212

main48530-80731iZVW41201312-201411

MARK 48530-47213

main48530-80746iZVW41201806-201811

MARK 48530-47390

48725FBUSH, REAR AXLE CARRIER, RH

main48725-12590iZVW41201109-201309

main48725-47060iZVW41201309-201411

48725GBUSH, REAR AXLE CARRIER, LH

main48725-12590iZVW41201109-201309

main48725-47060iZVW41201309-201411

48755SUPPORT, REAR SUSPENSION

main48755-0F020×2iZVW41201109-201112

main48755-47040×2iZVW41201201-201411

9011912393

main90119-12393

9011914131

main90119-14131

9017314004

main90173-14004

9017812009

main90178-12009

9413061200

main94130-61200

20 parts on this diagram · 1 diagram in section
