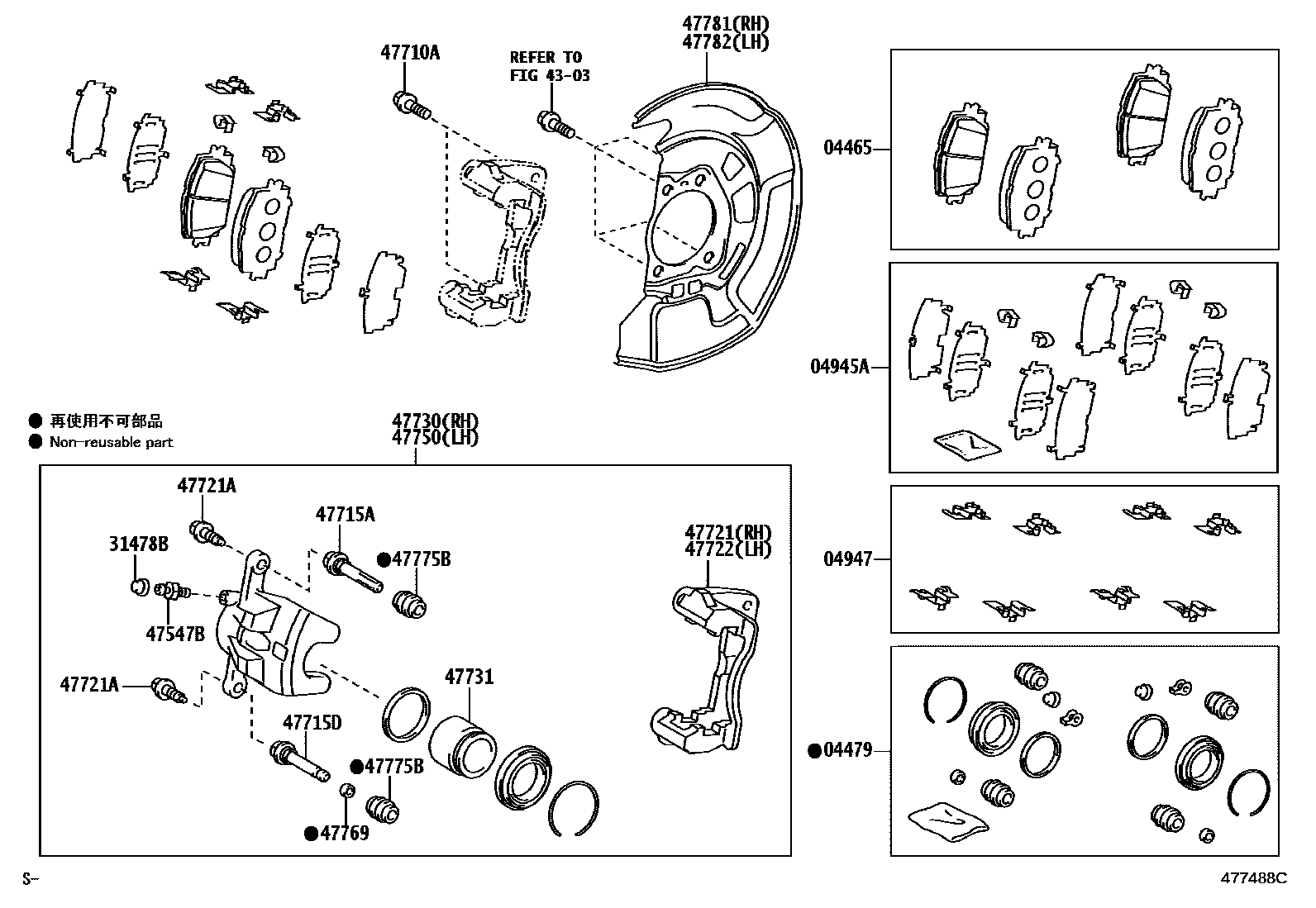

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-42160iZVW41201109-201209

MARK ADVICS PV565H

sub04465-42200

main04465-42200iZVW41201209-201811

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33100iZVW41201109-201811

04945ASHIM KIT, ANTI SQUEAL, FRONT(WITH PAD WEAR INDICATOR)

main04945-12110iZVW41201109-201311

sub04945-12111

main04945-12111iZVW41201311-201811

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iZVW41201109-201811

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iZVW41201109-201811

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iZVW41201109-201811

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iZVW41201109-201811

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iZVW41201109-201811

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iZVW41201109-201811

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12A70iZVW41201109-201811

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iZVW41201109-201811

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12A70iZVW41201109-201811

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12A70iZVW41201109-201811

47731PISTON, FRONT DISC BRAKE

main47731-12A70iZVW41201109-201811

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12A70iZVW41201109-201811

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iZVW41201109-201811

47775BBOOT, BUSH DUST, NO.1

main47775-52190iZVW41201109-201811

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42040iZVW41201109-201811

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42040iZVW41201109-201811

20 parts on this diagram · 1 diagram in section
