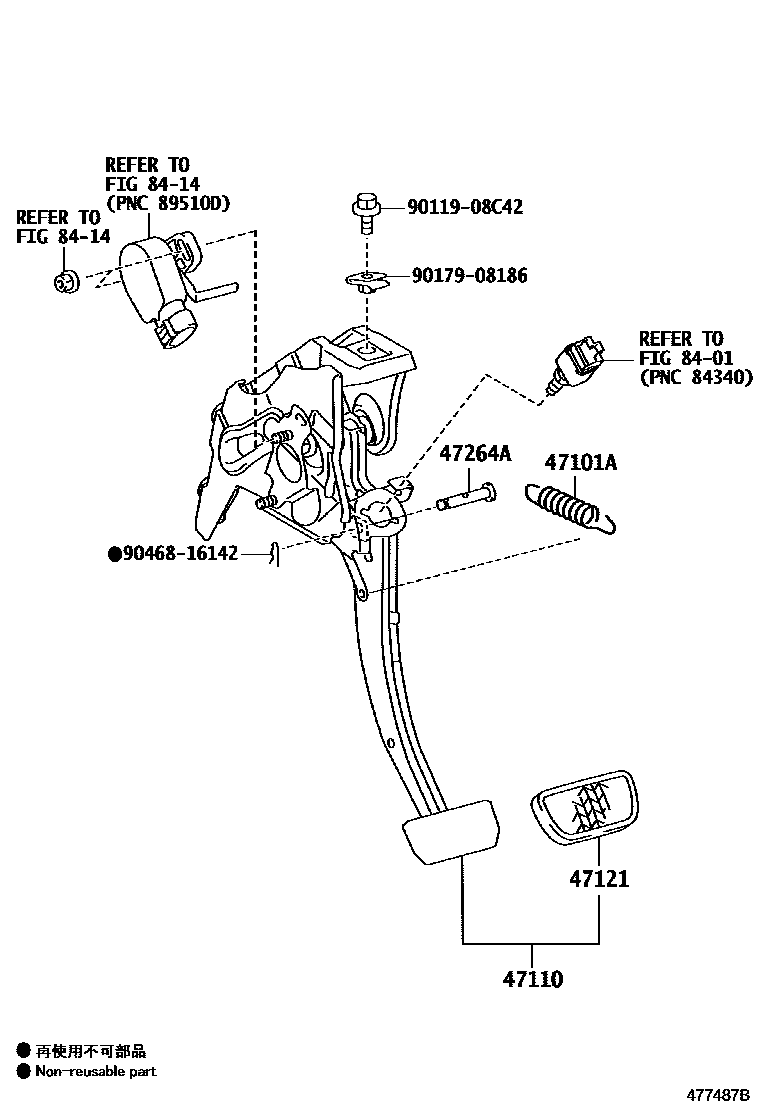

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14050iZVW41201109-201411

47110SUPPORT ASSY, BRAKE PEDAL

main47110-47090iZVW41201109-201411

47121PAD, BRAKE PEDAL

main47121-42010iZVW41201109-201411

47264APIN(FOR PUSH ROD)

main47148-47020iZVW41201109-201411

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011908C42

main90119-08C42

9017908186

main90179-08186

9046816142

main90468-16142

9 parts on this diagram · 1 diagram in section
